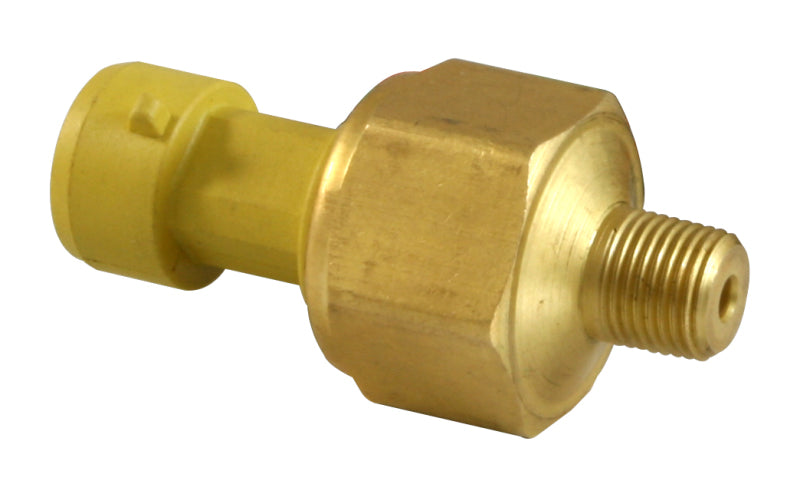

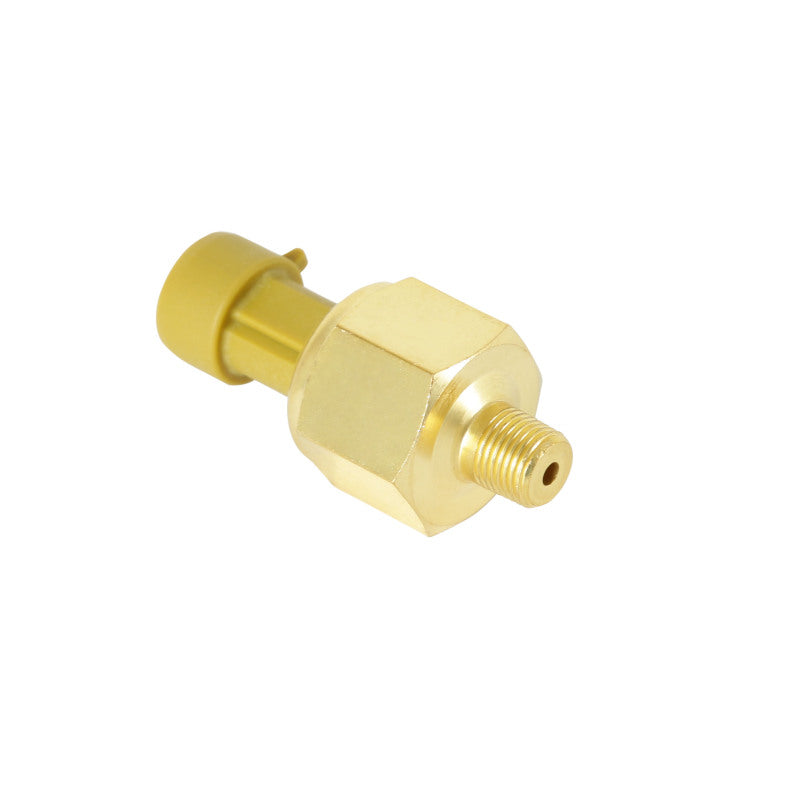

AEM 30-2131-75 5 Bar / 75 PSIa Brass MAP Pressure Sensor Kit

Vehicle Fitment

• Universal / All Vehicles (for manifold or boost pressure monitoring)

Features

• Brass MAP pressure sensor design
• Pressure range: 75 PSIa / 5 bar
• High accuracy: ±3% of full scale
• Fast response time (<1 ms)
• Durable brass body with stainless steel wetted surfaces
• 1/8" NPT male thread for secure installation
• 3-pin weatherproof connector included
• Vibration-resistant design for automotive applications

Specifications

• Part Number: 30-2131-75
• Sensor Type: Absolute pressure (MAP) sensor
• Operating Temperature: -40 °C to +105 °C
• Burst Pressure: 150 PSI
• Output Voltage: 0.5 V to 4.5 V linear
• Connector: 3-pin weatherproof
• Thread: 1/8" NPT male
• Supply Current: <6 mA at 5 VDC
• Weight: ~85 g

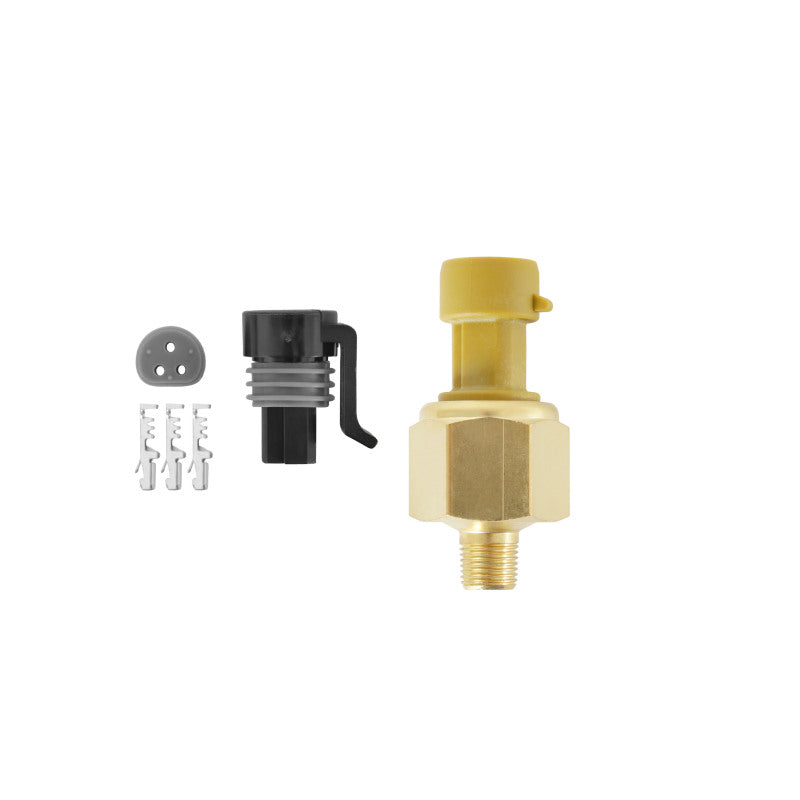

Included Components

• 1x Brass 5 Bar / 75 PSIa MAP sensor
• 1x 3-pin weatherproof connector
• Pin set + pin lock for connector

Product Description

The AEM 30-2131-75 is a precision brass MAP sensor kit designed for accurate manifold or boost pressure monitoring. With a 5 bar (75 PSIa) measurement range and ±3% full-scale accuracy, it delivers reliable readings for turbocharged, supercharged, or naturally aspirated engines.

Its robust brass body and stainless steel wetted surfaces provide excellent durability, while the 1/8" NPT male thread allows secure installation. The fast <1 ms response time ensures real-time pressure feedback, and the included 3-pin weatherproof connector enables safe, sealed electrical connections.

This universal sensor kit is suitable for any vehicle or system requiring a 5 bar absolute pressure reading, making it ideal for ECU setups, performance builds, data logging, or general pressure monitoring applications.
