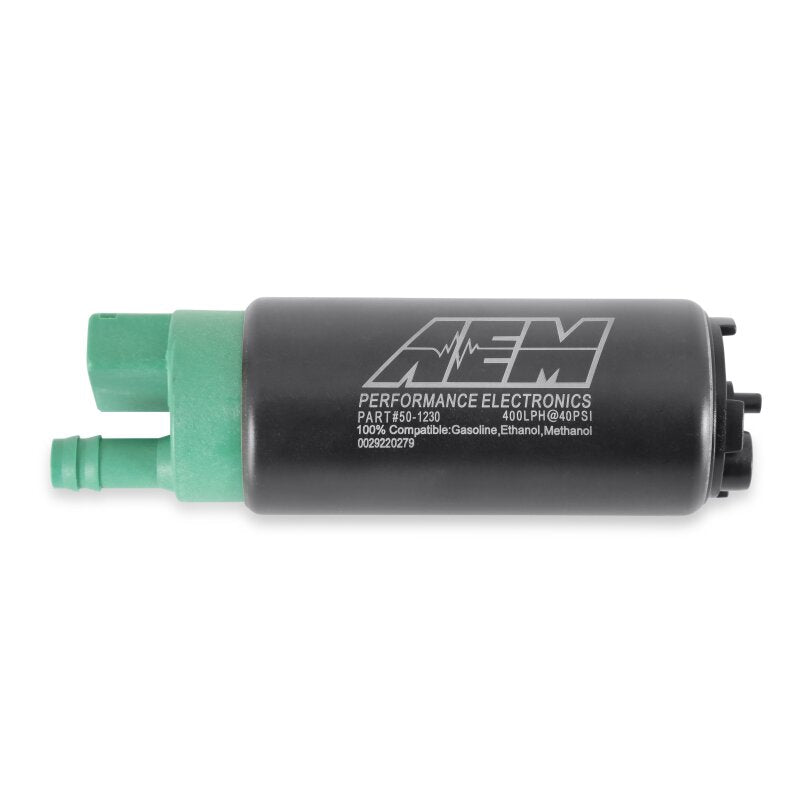

AEM 50-1230 400LPH E85 High Flow In-Tank Fuel Pump for Universal EFI Double Barb

Vehicle Fitment

• Universal - compatible with most carbureted and EFI fuel systems (not vehicle-specific)

Fitment Notes

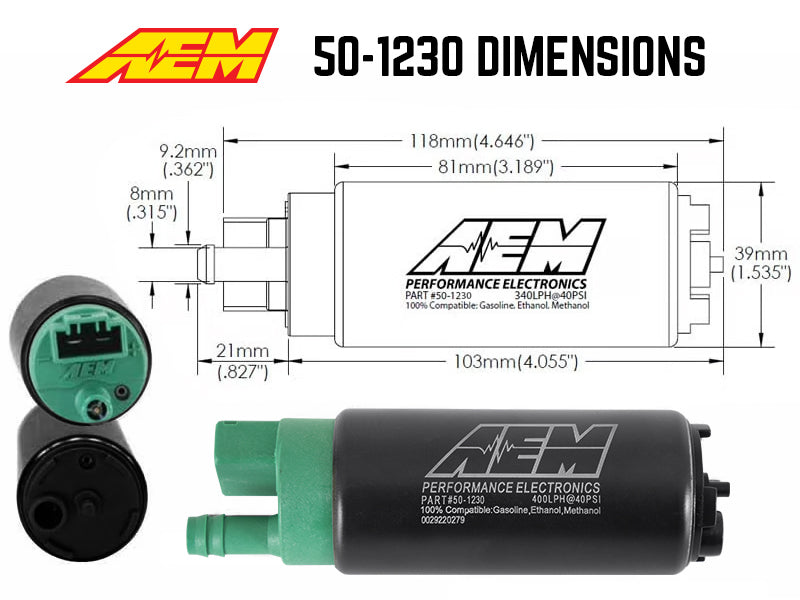

• 39mm body (same size as a Walbro 255) designed to replace many OEM in-tank fuel pumps directly
• Features a double-barbed 9mm outlet sized for 3/8-inch ID hose; a smooth-barb variant (AEM 50-1235) is available for 5/16-inch ID hose applications
• Does not include an integrated check valve
• Vehicle's factory fuel pump wiring may not handle this pump's current draw - verify wiring capacity per AEM's electrical requirements documentation before installation

Features

• Highest-flow 39mm body fuel pump on the market, individually flow tested
• Guaranteed to deliver 400+ LPH (106 GPH) at 40 PSI (13.5V) - supports over 1000 HP on gasoline
• Maintains high flow under boost, delivering 330+ LPH at 70 PSI (13.5V) - supports approximately 870 HP on gasoline
• 100% compatible with pump/race gasoline, ethanol up to E100, and methanol up to M100
• Highly efficient, drawing only 12A at 40 PSI and 15A at 70 PSI

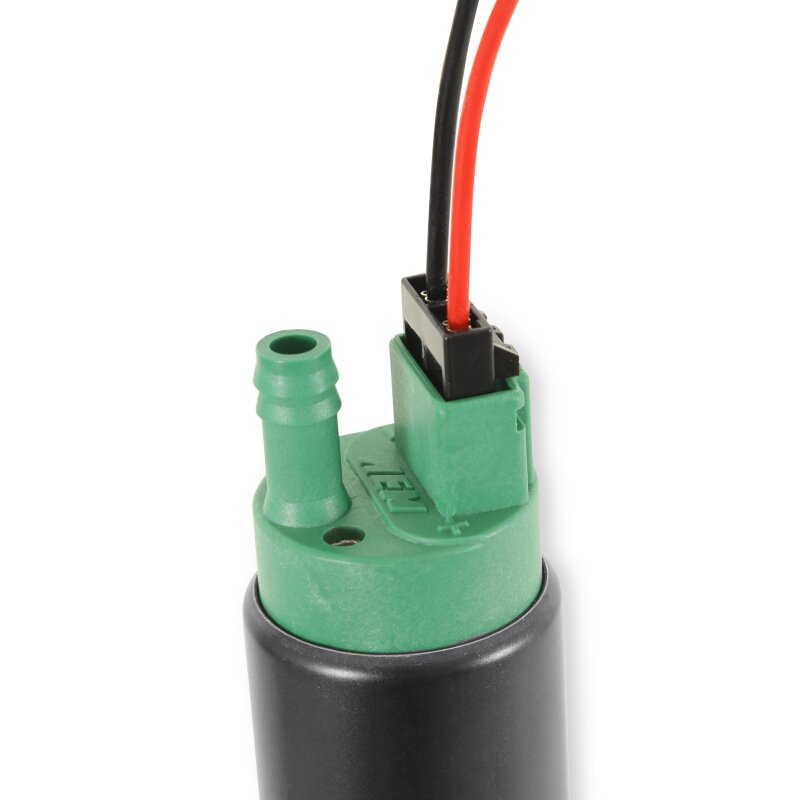

• 11mm inlet in-line with a 9mm barbed outlet

Specifications

• Free Flow Rate: 400 LPH (106 GPH)
• Flow Rate at 40 PSI: 400 LPH (105 GPH)
• Fuel System Compatibility: Carbureted, EFI
• Fuel Type Compatibility: E85, Gasoline, Methanol
• Body Material: Steel
• Pump Body Color: Black
• Warranty: Manufacturer's 1-Year Warranty
• UPC: 090127819821

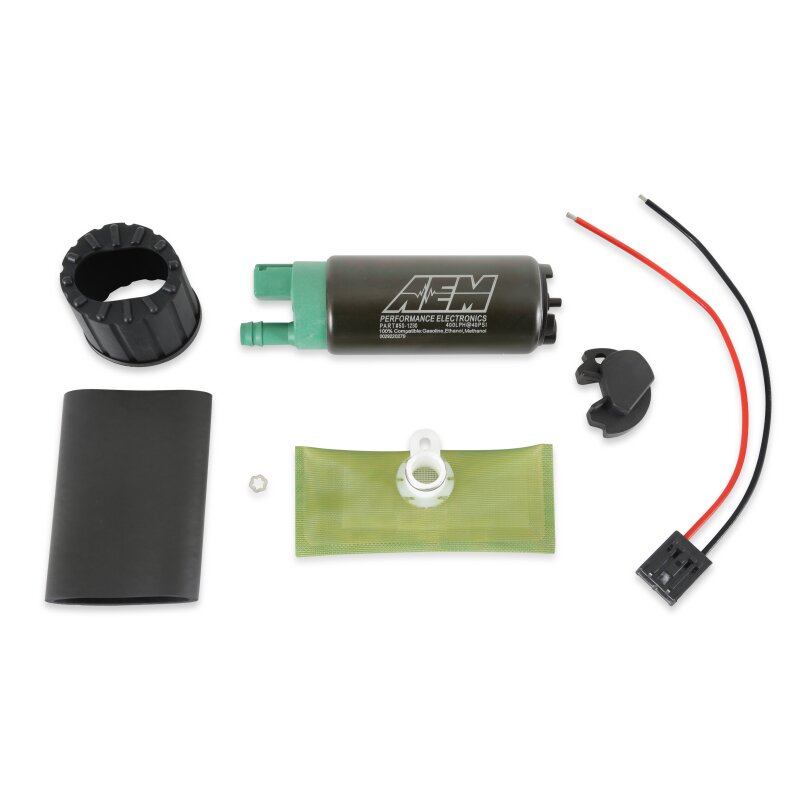

Included Components

• 1x AEM 400LPH High Flow In-Tank Fuel Pump (Double Barb)
• 1x Wiring harness
• 1x Pre-filter
• 1x End cap
• 1x Rubber buffer sleeve

Product Description

The AEM 50-1230 is a 400LPH high-flow, E85-compatible in-tank fuel pump designed for both naturally aspirated and forced induction EFI vehicles. Every pump is individually flow tested and guaranteed to deliver 400+ LPH at 40 PSI, capable of supporting over 1000 horsepower on gasoline, while maintaining strong flow of 330+ LPH even at 70 PSI under boost.

Built in a compact 39mm body - the same size as a Walbro 255 - this pump is designed to drop into many OEM fuel systems as a direct upgrade. Its double-barbed 9mm outlet is sized for 3/8-inch ID hose, and full compatibility with gasoline, ethanol up to E100, and methanol up to M100 makes it a flexible choice for builds running alternative fuels.

Because this is a universal, high-current pump, installers should verify the vehicle's factory fuel pump wiring can handle the increased draw before installation, and should plan for a separate check valve since one is not integrated into the pump. The kit includes a wiring harness, pre-filter, end cap, and rubber buffer sleeve for a complete in-tank installation.
