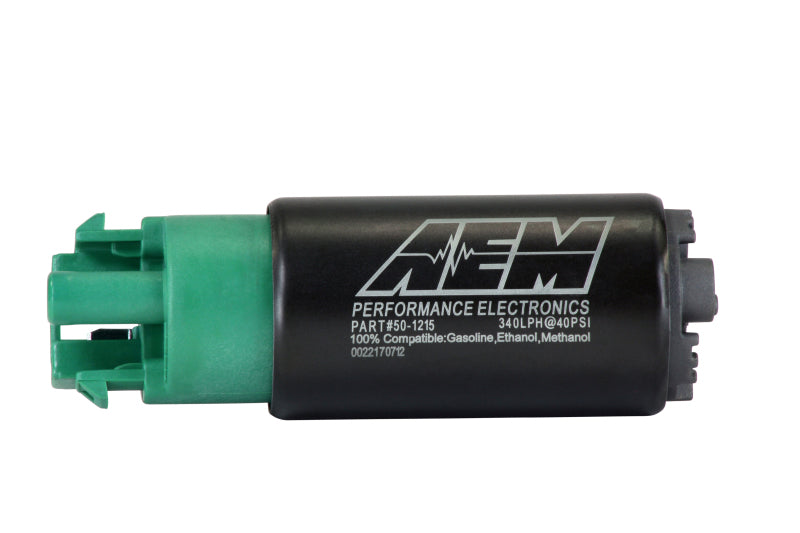

AEM 50-1215 340LPH E85-Compatible In-Tank Fuel Pump 65mm w/ Hooks Offset Inlet

Vehicle Fitment

• Universal -- in-tank fuel pump sized at 39mm OD x 65mm body with mounting hooks and offset inlet

Fitment Notes

• Not vehicle-specific -- verify physical dimensions and fuel system compatibility before purchasing
• 39mm compact diameter fits most in-tank applications
• 65mm short body with mounting hooks -- offset inlet design
• Use AEM's Vehicle Search tool at aemelectronics.com to confirm fitment for your vehicle
• Use of stock isolator sleeve is recommended
• Included universal pre-filter may not fit all applications -- refer to OEM filter recommendations
• Factory fuel pump wiring may not handle current draw -- verify electrical requirements before install
• Do not modify fuel tank to accommodate pump -- AEM does not guarantee performance if tank is modified
• Sold individually -- one pump per order

Features

• 340 LPH flow rate at 40 PSI -- individually tested before packaging
• E85/E100 and M100 compatible -- withstands low lubricity ethanol and methanol fuels
• Compatible with all types of gasoline
• Single scroll ceramic turbine impeller
• Compact 39mm diameter x 65mm short body with mounting hooks
• Offset inlet design for easier installation
• Black plated steel construction with laser etching
• Designed for high-output NA and forced induction EFI vehicles

Specifications

• Flow Rate: 340 LPH at 40 PSI
• PRV Activation: 80 PSI

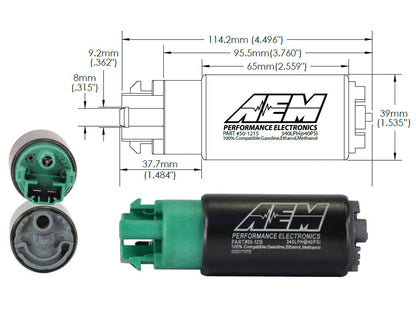

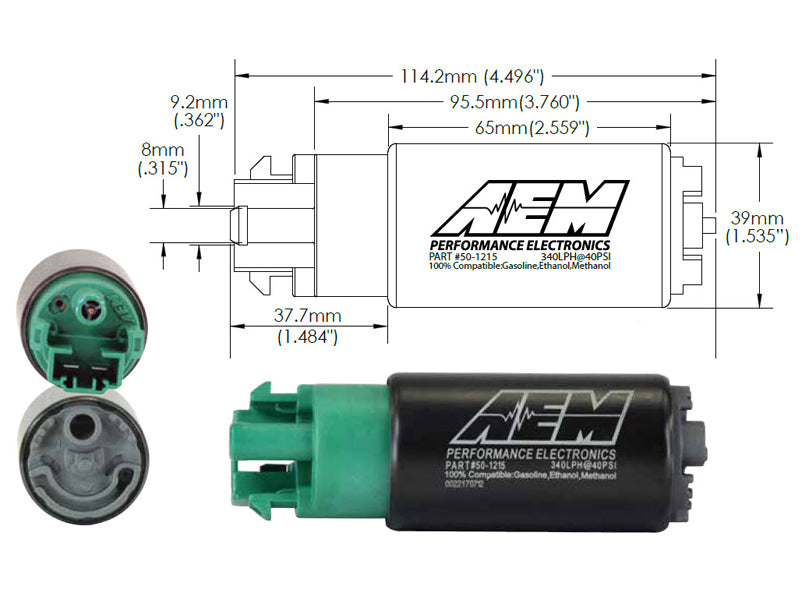

• Outside Diameter: 39mm
• Body Length: 65mm

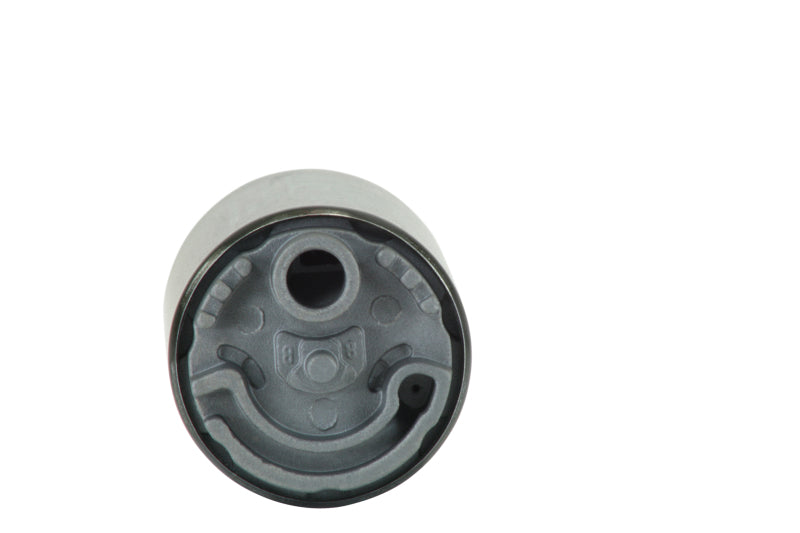

• Inlet Fitting: 7.7mm ID / 11.0mm OD (offset inline)
• Outlet Fitting: 8mm hose clamp (offset)
• Impeller: Single scroll ceramic turbine

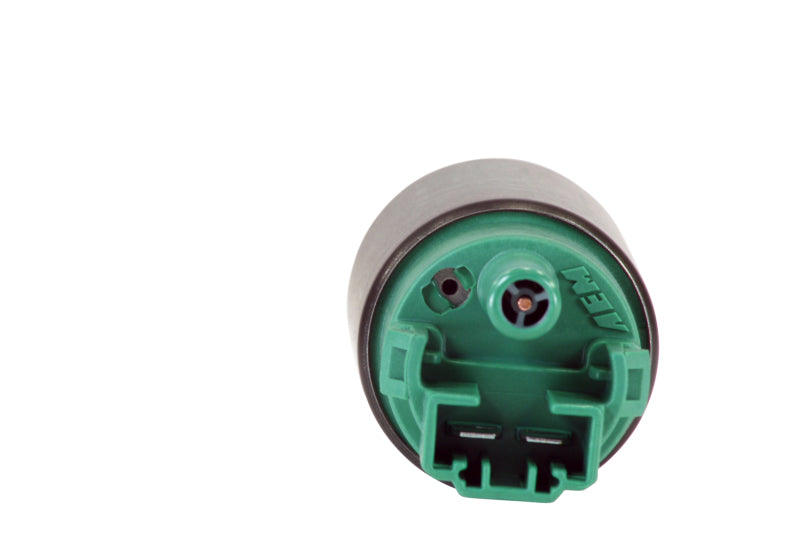

• Connector Terminal: 6mm spade (positive/negative)
• Voltage Range: 6-18 volts
• Current Draw at 40 PSI: 12 amps (13.5V)
• Current Draw at 80 PSI: 15 amps (13.5V)
• Fuse: 20 amps (13.5V)
• Weight: 10.4 oz (294g)
• External Materials: Black plated steel with laser etching
• UPC: 840879024451

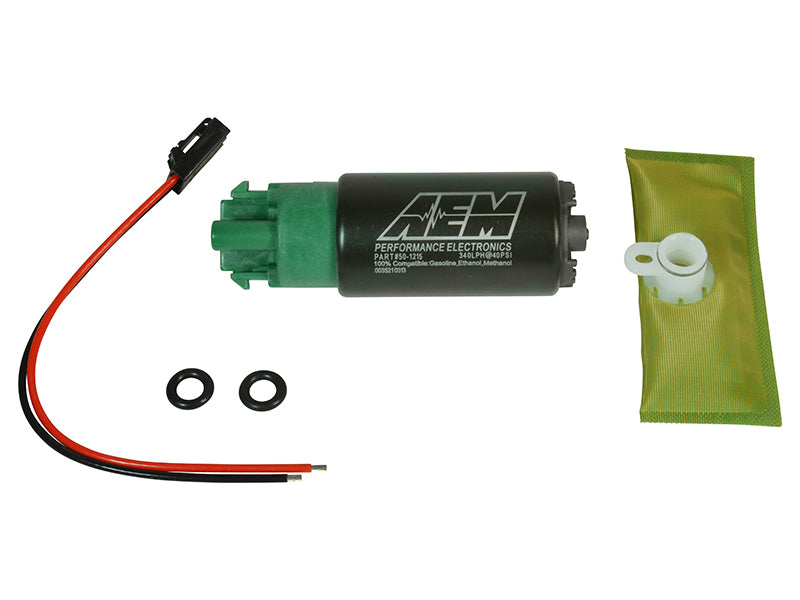

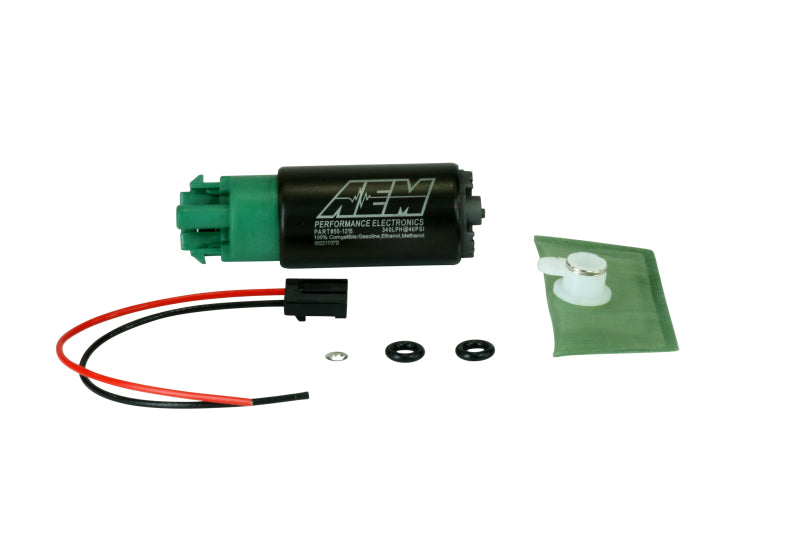

Included Components

• 1x AEM 340LPH E85-compatible in-tank fuel pump
• Wiring harness with flying lead

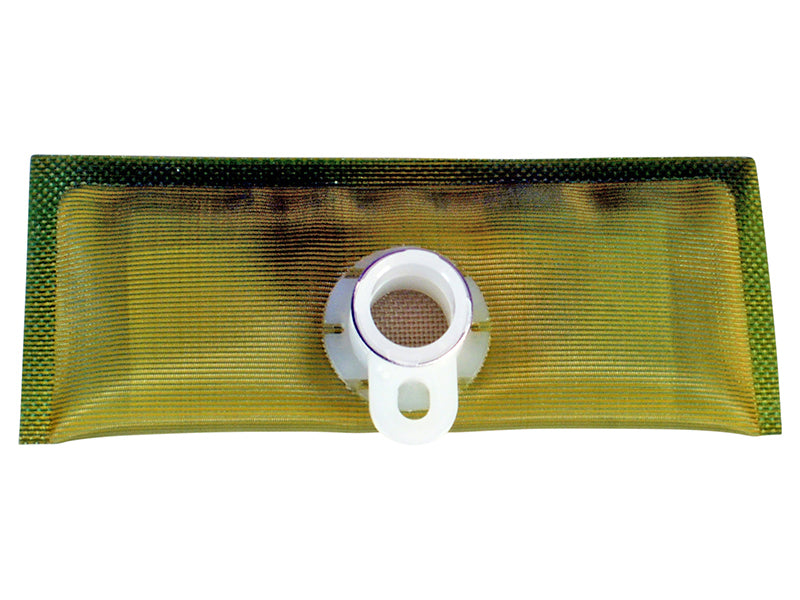

• Universal pre-filter
• Rubber buffer sleeve and end caps
• Internal fuel hose and clamps
• O-rings
• Installation instructions

Product Description

The AEM 50-1215 is a 340LPH E85-compatible high flow in-tank fuel pump in a compact 65mm short body design with mounting hooks and offset inlet. The robust internal construction is engineered to withstand the low lubricity characteristics of ethanol and methanol fuels and is tested to work with E100, M100, and all types of gasoline -- making it suitable for flex fuel, dedicated ethanol, and standard gasoline applications. Every pump is individually flow tested to deliver 340 LPH at 40 PSI before packaging. The single scroll ceramic turbine impeller and 39mm compact diameter are sized to fit most in-tank fuel pump applications on high-output naturally aspirated and forced induction EFI vehicles.

The offset inlet design eases installation, and the compact 65mm body length with mounting hooks is ideal for fuel tanks with tight clearance tolerances. Black plated steel external construction with laser-etched identification ensures durability. Although the 50-1215 is the same physical size as many OEM pumps, it may not be appropriate for every vehicle -- use AEM's Vehicle Search tool at aemelectronics.com to verify compatibility before purchasing. Factory fuel pump wiring may not be adequate to handle the 12-amp current draw at 40 PSI -- verify electrical requirements and upgrade wiring as needed per AEM's installation instructions. The included universal pre-filter may not fit all vehicle applications -- refer to OEM filter recommendations for your specific vehicle. Backed by AEM's Lifetime Limited Warranty.
