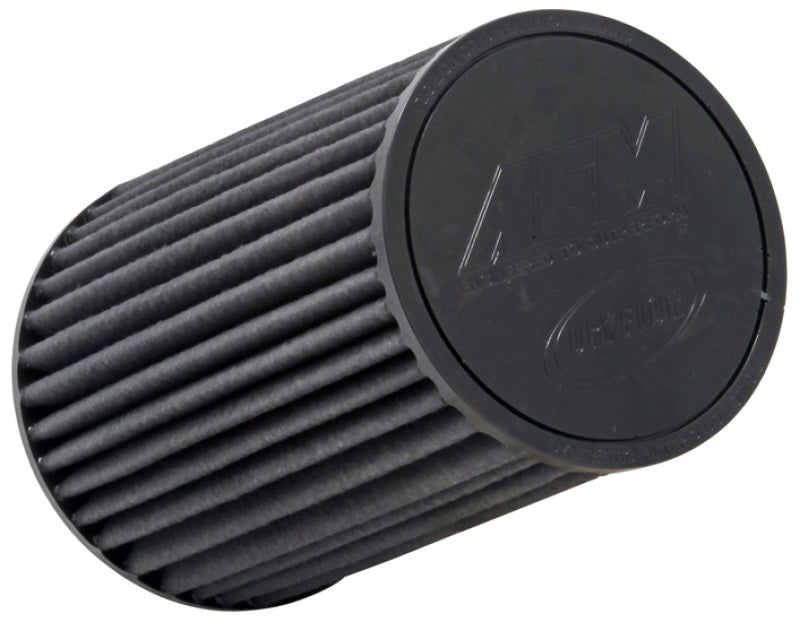

AEM 21-2049BF Brute Force DryFlow 3.5 in Conical Air Filter 6 in Base x 9 in H

Vehicle Fitment

• Universal - fits any cold air intake, short ram intake, or intake tube with a 3.500 in (89mm) outside diameter pipe end
• Designed for off-road vehicles, race cars, large-displacement engine builds, UTV/ATV applications, and any installation operating in dusty, harsh, or demanding environments requiring extra filter media durability and high dirt-holding capacity
• Compatible with carbureted and fuel-injected engines across gasoline, diesel, and alternative fuel applications
• Some adaptation may be required depending on installation - confirm pipe OD matches the 3.500 in flange ID before ordering

Fitment Notes

• Off-Road / Race Use Only - NOT CARB Compliant. The AEM Brute Force DryFlow filter is not legal for installation or use on emissions-controlled vehicles registered in California or other states that have adopted CARB standards. It is intended for off-road, competition, and racing applications only.
• The 21-2049BF is a clamp-on universal conical filter, not a vehicle-specific drop-in panel filter. It requires a 3.500 in (89mm) OD intake tube. Secure with a standard hose clamp (not included) over the 1.375 in flange length.
• At nearly 9 inches tall, the 21-2049BF is one of the largest-bodied filters in AEM's universal clamp-on lineup. Confirm available under-hood, cage, or chassis clearance for the full 9-inch filter height before installation.
• The tall 9-inch body is well suited to large-displacement truck, SUV, and off-road engine builds where maximizing filter surface area is a priority for extended service intervals between cleanings in demanding environments.
• The 3.5-inch standard DryFlow equivalent for street use is the 21-2047DK (black). This Brute Force variant is for off-road and race use only.

Features

• Brute Force Heavy-Duty DryFlow Media - Engineered for Large Engines and Harsh Conditions: The 21-2049BF uses AEM's Brute Force-specific synthetic filter media - significantly tougher than standard DryFlow media, designed to handle the high airflow demands of large-displacement engines while withstanding the heavy dust loading, physical abuse, and repeated cleanings of off-road and desert racing environments without degrading or losing structural integrity.
• Maximum Filter Surface Area - 9-Inch Tall Body: The 8.938-inch (≈9 in) body height is substantially taller than AEM's standard 5-inch Brute Force conical filters, providing dramatically more filter surface area for higher airflow capacity and extended service intervals between cleanings - a key advantage when operating in continuous high-dust environments where frequent filter cleaning may not be practical.
• Mineral-Reinforced Plastic Cage - Collapse-Proof Under High Airflow: The lightweight mineral-reinforced plastic cage maintains the full structural integrity of the filter element under the high-vacuum, high-airflow conditions generated by large-displacement engines and high-performance forced induction builds - preventing the filter media from collapsing inward and restricting intake flow.
• Retains Shape Under Severe Abuse: The Brute Force media and reinforced cage combination ensures the filter maintains its shape, seal, and performance after impacts, compression from debris, and the mechanical stresses of off-road use - conditions that would deform or damage conventional performance filters.
• Oil-Free Synthetic Media - No Oiling Required: Like all AEM DryFlow products, the Brute Force requires no filter oil for installation or maintenance. Clean with AEM filter cleaner (PN 1-1000), rinse with water, air dry, and reinstall. No risk of MAF sensor contamination from oil overspray.
• Tapered Conical Profile - 6-Inch Base / 5.125-Inch Top: The cone tapers from a 6-inch base OD to a 5.125-inch top OD, maximizing filter media volume within a given mounting envelope compared to a straight cylindrical design of equivalent flange size.
• Closed Top Cap: The closed top cap directs all intake air through the full surface area of the tall conical filter body, ensuring maximum airflow capacity across the entire 9-inch filter height.

Specifications

• Part Number: 21-2049BF
• Brand: AEM Induction Systems
• Product Line: Brute Force DryFlow
• Product Type: Brute Force DryFlow Universal Clamp-On Conical Air Filter
• Color: White
• Filter Shape: Round conical (tapered)
• Filter Media: Brute Force Heavy-Duty Non-Woven Synthetic (DryFlow - oil-free)
• Internal Cage: Mineral-reinforced lightweight plastic
• Flange Inside Diameter: 3.500 in (89mm) - fits 3.5-inch OD intake pipe
• Flange Length: 1.375 in (1-3/8 in)
• Flange Angle: 0 degrees (centered, straight)
• Flange Type: Centered (1 flange)
• Outside Diameter (Base): 6.000 in (152mm)
• Outside Diameter (Top): 5.125 in (130mm)
• Height: 8.938 in (227mm) - nominal 9 in
• Top Style: Closed cap
• Oiling Required: No
• Washable / Reusable: Yes
• CARB Compliance: Not CARB compliant - off-road / race use only
• Fitment: Universal
• Warranty: 1 Year Limited
• Quantity: 1 (sold individually)

Included Components

• 1x AEM Brute Force DryFlow Universal Clamp-On Conical Air Filter (21-2049BF) - White
• Note: Intake pipe, hose clamp, and heat shield sold separately

Product Description

The AEM 21-2049BF is a Brute Force DryFlow universal clamp-on conical air filter in white - AEM's heavy-duty off-road and racing filter line, in a tall 9-inch body configuration designed for large-displacement engines that need both high airflow capacity and extended service intervals between cleanings in demanding environments. The nearly 9-inch filter height provides substantially more filter surface area than AEM's standard 5-inch Brute Force conical filters, making it well suited to high-output truck, SUV, off-road buggy, and race car intake systems where maximum flow and dust-holding capacity are priorities.

The 3.5-inch centered flange fits any 3.500 in (89mm) OD intake tube. The 6-inch base tapers to 5.125 inches at the top across the 8.938-inch body height. AEM's Brute Force-specific media is tougher than standard DryFlow media and is supported by a mineral-reinforced plastic cage that resists collapse under high airflow and engine vacuum conditions. Oil-free - no oiling required. Wash with AEM filter cleaner, rinse, and air dry.

This filter is NOT CARB compliant and is intended for off-road and competition use only - not legal for street-registered vehicles in California or other CARB-adopting states. Universal fitment. 1-year limited warranty.
