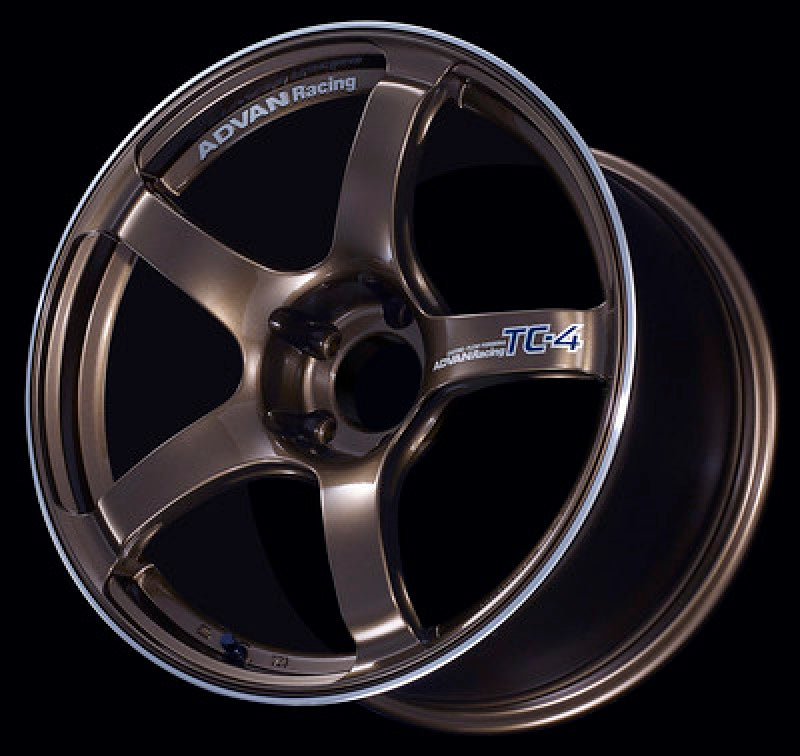

Advan Racing YAD7I45EUAR TC-4 17x9 +45 5x114.3 Umber Bronze Wheel/Rim

Vehicle Fitment

• Universal -- fits vehicles with 5x114.3 (5x4.5) bolt pattern and 73.1mm or larger hub bore

Fitment Notes

• Sold individually -- order qty of 4 for a full set
• Verify brake caliper clearance before purchase
• +45mm offset with GTR concave face profile
• Hub-centric rings may be required for hub bores larger than 73.1mm
• Lug nuts sold separately -- exposed lug design requires open-ended lug nuts
• Not true directional -- mounts on any corner
• Machined outer lip ring protects finish from curb rash paint transfer

Features

• Advan Racing TC-4 flagship enthusiast/racing wheel
• Flow-formed cast one-piece construction with forged-like barrel strength
• Symmetrical 5-spoke design with concave GTR face profile
• Side-cut spokes reduce weight without sacrificing rigidity
• Knurled bead seat for improved tire grip under hard driving
• Machined outer lip ring prevents paint deterioration from curb contact
• Cast ADVAN Racing logo between spokes
• Exceeds JWL and VIA testing standards
• Made in Japan by Yokohama Rubber Co.

Specifications

• Part Number: YAD7I45EUAR
• Brand: Advan Racing (Yokohama)
• Model: TC-4
• Color: Racing Umber Bronze Metallic with Machined Outer Lip Ring
• Diameter: 17"
• Width: 9.0"
• Offset: +45mm
• Backspacing: 6.77"
• Bolt Pattern: 5x114.3 (5x4.5)
• Hub Bore: 73.1mm
• Spoke Count: 5
• Face Profile: GTR (Concave)
• Construction: One-Piece Flow-Formed Cast
• Weight: ~24.1 lbs
• Exposed Lugs: Yes
• True Directional: No
• Country of Origin: Japan

Included Components

• (1) Advan Racing TC-4 wheel
• (1) Valve stem
• (1) TC-4 logo sticker

Product Description

The Advan Racing YAD7I45EUAR is a TC-4 17x9 +45mm wheel in Racing Umber Bronze Metallic with a machined outer lip ring for 5x114.3 bolt pattern vehicles. As Advan Racing's flagship enthusiast wheel, the TC-4 uses flow-formed cast construction to deliver forged-like barrel strength at a lower cost than full-forged options. The symmetrical 5-spoke design features a concave GTR face profile with strategically placed side cuts at the spoke crotch and outer ends, engineered through strength analysis to maximize weight savings without compromising rigidity. The high-gloss painted finish is paired with a polished machined outer lip ring that prevents paint deterioration from curb contact. Designed to provide ample caliper clearance for large brake packages, the TC-4 exceeds JWL and VIA testing standards for use with R-compound and slick tires in competition. Made in Japan by Yokohama Rubber Co. Sold individually with valve stem and logo sticker included.
