Action Clutch ACR-3745 Stage 2 Super Copper Clutch Kit 2022-2024 Toyota GR86

Vehicle Fitment

• 2022-2024 Toyota GR86 (2.4L FA24D, manual transmission)
• 2022-2024 Subaru BRZ (2.4L FA24D, manual transmission)

Fitment Notes

• Fits the FA24D-equipped 2022-2024 GR86 and BRZ only - does not fit earlier FA20-powered 2013-2021 86/BRZ models
• Flywheel is NOT included with this kit - uses the factory flywheel or a separately purchased aftermarket flywheel
• The Stage 2 (1SC) Super Copper is engineered for daily-driven and tuned street cars from stock to basic bolt-on builds, and for occasional circuit, time attack, or road racing use - not recommended for drag racing or drifting
• Break-in required: 500 street miles, RPMs under 4,500, no more than half throttle, no boost (if applicable) - break-in must be completed to retain warranty and maximize longevity and holding capacity
• Holding capacity increase is rated in crank torque, not wheel torque

Features

• Super Copper Series disc features the highest copper content of any organic clutch in the Action Clutch lineup, delivering more grip, superior heat tolerance, and more consistent engagement than standard organic friction material
• Reinforced steel-backed, copper-loaded organic sprung disc provides smooth, linear engagement suitable for daily driving and spirited street and track use
• Single diaphragm heavy-duty pressure plate provides a meaningful clamping force increase over OEM while maintaining an approachable, streetable pedal feel
• Superior heat resistance compared to standard organic clutches - maintains consistent performance through repeated on-track or spirited driving cycles
• Sprung hub design provides dampening for comfortable daily driving and stop-and-go use
• Patented fully enclosed spring retainers prevent spring ejection, eliminating a common failure mode that can cause catastrophic engine and transmission damage
• Ductile iron friction plate on all clutch covers
• 4-stage, heat-treated diaphragm spring for consistent clamping force
• 100% dynamically spin balanced to within 0.25 oz-in for smooth high-RPM operation
• American-grade rivets throughout
• SFI Spec 1.1 certified
• Every kit quality checked and signed off by an Action Clutch engineer before release

Specifications

• Stage: Stage 2 (1SC - Super Copper Series)
• Disc Type: Reinforced steel-backed, copper-loaded organic, full face, sprung hub
• Pressure Plate: Single diaphragm heavy-duty
• Pedal Feel: Smooth and linear with moderate increase over OEM
• Use Case: Daily-driven tuned street cars; stock to basic bolt-on; occasional circuit / time attack / road racing
• Flywheel: Not included
• SFI Rating: SFI Spec 1.1
• Break-in: 500 miles required
• Warranty: 12 months / 15,000 miles (break-in required)

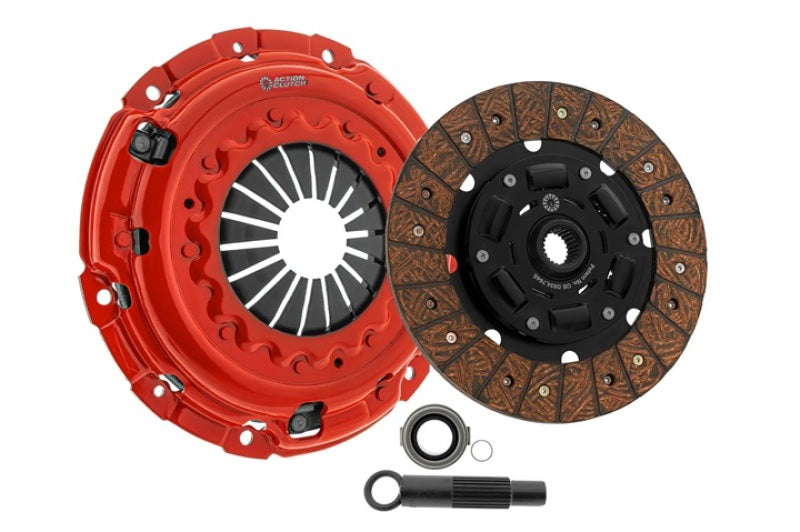

Included Components

• 1x single diaphragm heavy-duty pressure plate
• 1x reinforced steel-backed copper-loaded organic sprung disc (full face)
• Throwout / release bearing
• Pilot bearing / bushing (where applicable)
• Clutch alignment tool

Product Description

The Action Clutch ACR-3745 is a Stage 2 (1SC) Super Copper Series clutch kit engineered for 2022-2024 Toyota GR86 and Subaru BRZ models with the 2.4L FA24D engine. The Super Copper designation identifies it as Action Clutch's premium organic option - built with the highest copper content in the lineup for more grip, better heat resistance, and more consistent engagement through hard driving sessions compared to a standard organic disc, all while retaining a smooth and linear pedal feel that holds up well in daily use.

This kit is well matched to GR86 and BRZ builds from stock to basic bolt-on that see a mix of street driving and occasional track days - circuit, time attack, and road racing applications. The reinforced steel-backed, copper-loaded organic disc pairs with a heavy-duty single diaphragm pressure plate for a real-world holding capacity improvement over factory without sacrificing the driving character that makes the GR86/BRZ platform so rewarding. Action Clutch's patented fully enclosed spring retainers protect against spring ejection at high RPM, and every assembly is 100% dynamically balanced and individually inspected before shipping. A 500-mile break-in period is required to retain warranty coverage and achieve full holding capacity.
