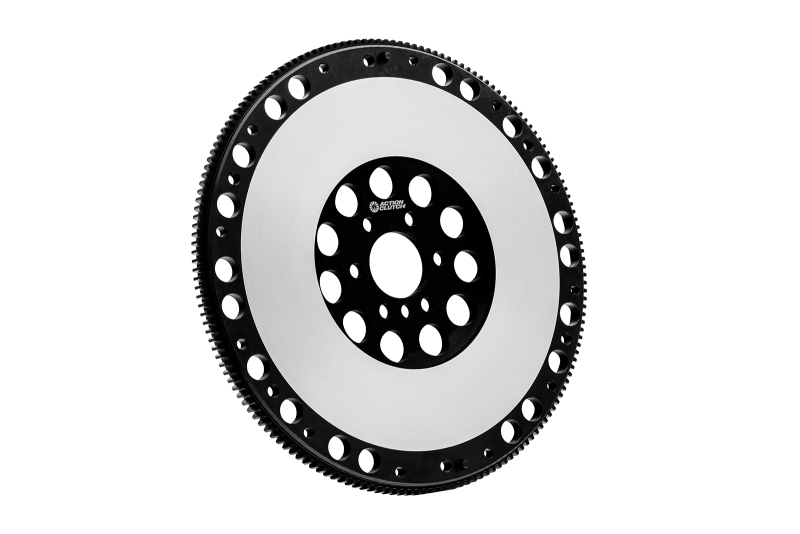

Action Clutch AC130FW Chromoly LW Flywheel for 1997-2006 Corvette/Camaro

Vehicle Fitment

• 1997-2004 Chevrolet Corvette, 5.7L V8 LS1, RWD
• 1997-2004 Chevrolet Corvette Z06, 5.7L V8 LS6, RWD
• 1998-2002 Chevrolet Camaro Z28/SS, 5.7L V8 LS1, RWD
• 1998-2002 Pontiac Firebird Formula, 5.7L V8 LS1, RWD
• 1998-2002 Pontiac Firebird Trans Am, 5.7L V8 LS1, RWD
• 1998-2002 Pontiac Firebird Firehawk, 5.7L V8 LS1, RWD
• 2004 Pontiac GTO, 5.7L V8 LS1, RWD
• 2005-2006 Pontiac GTO, 6.0L V8 LS2, RWD

Fitment Notes

• Designed for compatible GM LS-series manual-transmission applications using the specified 6-bolt crankshaft configuration.
• Includes both standard Corvette LS1 and Corvette Z06 LS6 applications.
• Camaro application is limited to the Z28/SS 5.7L LS1 models.
• Firebird applications include Formula, Trans Am, and Firehawk 5.7L LS1 models.
• Pontiac GTO applications include 2004 5.7L LS1 and 2005-2006 6.0L LS2 models.
• Verify transmission and crankshaft configuration before installation.

Features

• Chromoly lightweight flywheel engineered for high-performance applications.
• Designed for light to highly tuned street and race vehicles.
• 6-bolt crankshaft configuration.
• 15 lb flywheel weight.
• SFI 1.1 certified specification.
• Heat-treated construction improves durability under demanding use.
• Reduced rotational mass improves engine response.
• Low inertia supports quicker engine acceleration and rev response.
• High thermal capacity supports repeated high-load operation.
• Resurfacable design can extend service life when properly maintained.
• Tested by Action Clutch up to 18,000 RPM.
• Suitable for street/track vehicles where increased performance characteristics are desired.

Specifications

• Brand: Action Clutch
• Part Number: AC130FW
• Product Type: Chromoly Lightweight Flywheel
• Material: Chromoly
• Weight: 15 lbs
• SFI Specification: 1.1
• Crankshaft Configuration: 6-bolt
• Application: GM LS-series manual-transmission vehicles
• Vehicle Position: Engine/transmission interface
• Drive Type: Rear-wheel drive applications listed above
• Maximum Tested Speed: 18,000 RPM
• Serviceability: Resurfacable

Included Components

• 1x Chromoly Lightweight Flywheel

Product Description

The Action Clutch AC130FW Chromoly Lightweight Flywheel is engineered for GM LS-series performance applications requiring reduced rotational mass and increased durability. Constructed from heat-treated chromoly and weighing 15 pounds, this lightweight flywheel is designed to improve engine response and reduce rotational inertia while maintaining the thermal capacity needed for demanding street and race use.

The AC130FW uses a 6-bolt crankshaft configuration and carries an SFI 1.1 specification. Action Clutch states that its chromoly lightweight flywheels are tested up to 18,000 RPM and are resurfacable, allowing serviceability over the component's useful life. The reduction in rotational mass can improve engine response, although it may also introduce additional NVH compared with a heavier factory-style flywheel.

Verified applications include 1997-2004 Chevrolet Corvette and Corvette Z06 models, 1998-2002 Chevrolet Camaro Z28/SS and Pontiac Firebird Formula, Trans Am, and Firehawk models, plus 2004 Pontiac GTO and 2005-2006 Pontiac GTO LS2 applications. Confirm the vehicle's manual-transmission and 6-bolt crankshaft configuration before installation.
