Action Clutch ACR-1817 Stage 2 Clutch Kit 2015-2018 Subaru WRX FA20DIT 6MT AWD

Vehicle Fitment

• 2015-2018 Subaru WRX - 2.0L DOHC Turbocharged (FA20DIT); 6-Speed Manual; AWD

Fitment Notes

• Critical: Flywheel compatibility is VIN-dependent for 2018 model year WRX - verify your VIN before ordering. Midway through the 2018 model year, Subaru upgraded the WRX clutch from 230mm to 240mm (per Subaru TSB 03-79-18R). Because the two sizes use different bolt patterns, this kit must be matched to the correct production date using the last seven digits of the VIN:
• VIN below J*806877: Your WRX has the original 230mm factory clutch setup. This kit (ACR-1817) is directly compatible with your existing OEM flywheel - no additional parts are required for installation.
• VIN J*806877 or higher: Your WRX has the updated 240mm factory clutch setup. This kit is NOT compatible with your factory flywheel in its current state. You must also purchase and install the Action Clutch AC105FW flywheel alongside this kit to convert the system back to the 230mm configuration; without the AC105FW, this clutch will not fit correctly.
• This kit fits 2015-2018 WRX only - it does NOT fit the WRX STI (EJ257 engine), the 2019+ WRX (which uses a different clutch configuration), or any WRX model with an automatic transmission
• A flywheel is NOT included with this kit - the existing OEM flywheel must be in serviceable condition (resurface or replace as needed), or the AC105FW must be purchased separately for late 2018 VINs; failure to resurface the flywheel will void the product warranty
• This kit is not recommended for drag racing or drifting - the Kevlar disc is optimized for street durability and road/circuit track use; for drag or drift applications, a Stage 3 or higher ceramic kit is more appropriate
• This item is a replacement/service part and is non-returnable and non-refundable unless the product arrives defective.

Features

• Stage 2 (1KS) segmented Kevlar sprung disc - the Kevlar disc is Action Clutch's most street-durable friction material, providing the longest wear life in their single-disc lineup; Kevlar friction material is heat-resistant, provides smooth and linear engagement, and delivers consistent performance across a wide operating temperature range; for a turbocharged WRX used in heavy street driving with occasional circuit or time attack sessions, the Kevlar disc's durability and engagement smoothness make it the preferred choice over organic or ceramic alternatives
• Steel-backed segmented friction material - the segmented Kevlar disc uses discrete friction pads on a steel backing plate rather than a full-face design; the segmentation allows for more effective heat dissipation between the pads and contributes to the disc's durability advantage over continuous-face designs
• Sprung hub - the disc hub springs absorb drivetrain shock at engagement, protecting the transmission synchronizers and gears from abrupt torque loads during engagement; on a turbocharged AWD platform like the FA20DIT WRX, sprung hub design also reduces the stress on the differentials and driveshaft components that a rigid hub design would transmit at engagement
• 110% increase in torque holding capacity over factory - the Stage 2 Kevlar configuration delivers more than double the factory WRX clutch's torque capacity (rated in crank torque), accommodating bolt-on modifications, intake and exhaust upgrades, and ECU tuning that push the FA20DIT's output beyond factory levels
• Single diaphragm heavy-duty pressure plate - applies greater clamping force than the factory unit to hold the increased torque capacity of the Kevlar disc; pedal feel remains OEM-like in weight and progression, making this kit suitable for daily-driven WRX builds that also see regular track days
• Patented fully enclosed spring retainers - Action Clutch's proprietary enclosed spring retainer design prevents springs from ejecting during use, a failure mode capable of causing catastrophic engine and transmission damage; this retainer design is a key safety differentiator versus competing clutch kits
• SFI Spec 1.1 certified - meets SFI Foundation specification 1.1 for replacement flywheels and clutch assemblies
• Individually quality checked - every kit is assembled and signed off by Action Clutch's engineering team (over 60 years of combined experience) before release

Specifications

• Part Number: ACR-1817
• Stage: 2 (1KS - Single Disc, Segmented Kevlar, Sprung)
• Disc Type: Sprung Segmented Kevlar (steel-backed)
• Pressure Plate Type: Single Diaphragm Heavy-Duty
• Torque Holding Capacity: 110% increase over factory (crank torque)
• Intended Use: Street / Track - occasional circuit, time attack, road racing
• NOT Recommended For: Drag racing or drifting
• Clutch Disc Diameter: 230mm (requires AC105FW flywheel for late 2018 VINs with 240mm factory setup)
• Flywheel Included: No - AC105FW required for WRX VIN J*806877 and higher; OEM flywheel compatible for earlier VINs
• VIN Reference: Subaru TSB 03-79-18R
• SFI Certification: SFI Spec 1.1
• Break-In Required: Yes - 1,000 street miles minimum (Kevlar requires longer break-in than organic); RPMs under 4,500; no more than half-throttle; no boost during break-in
• Price: ~$753.64-$861.00 (varies by retailer)

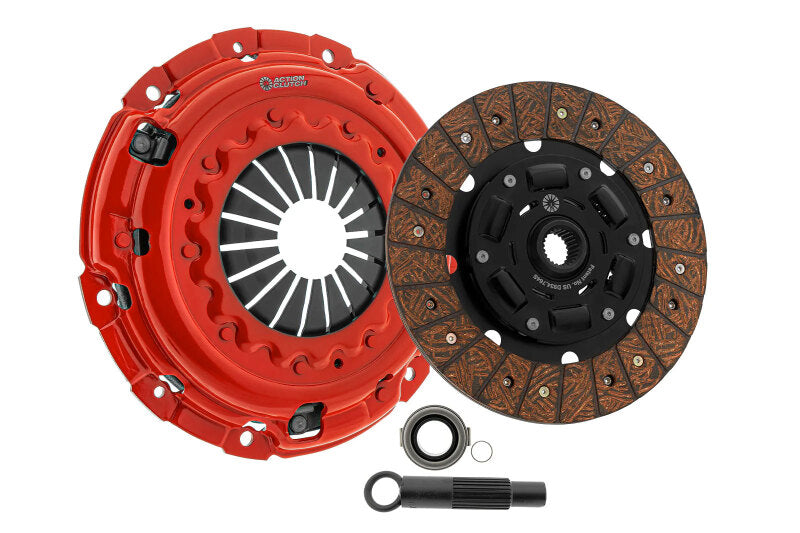

Included Components

• 1x Sprung Segmented Kevlar Clutch Disc (steel-backed)
• 1x Single Diaphragm Heavy-Duty Pressure Plate
• 1x Conventional Release Bearing
• 1x Pilot Bearing / Bushing (when applicable)
• 1x Clutch Alignment Tool
• Note: Flywheel is NOT included - for WRX VINs J*806877 and higher, the AC105FW flywheel must be purchased and installed alongside this kit

Product Description

The Action Clutch ACR-1817 is a Stage 2 (1KS) Kevlar sprung clutch kit for the 2015-2018 Subaru WRX equipped with the FA20DIT 2.0L turbocharged engine and 6-speed manual transmission. It positions above the Stage 1 organic kit in holding capacity and durability, while preserving the OEM-like pedal feel and smooth engagement that make the WRX practical for daily driving - a combination that makes the Stage 2 Kevlar the most common aftermarket clutch upgrade for bolt-on and lightly tuned WRX builds.

The segmented Kevlar disc delivers Action Clutch's longest wear life of any single-disc option, with superior heat resistance and consistent engagement across a wide operating temperature range compared to standard organic friction materials. The 110% increase in torque capacity over factory comfortably accommodates the power levels typical of bolt-on FA20DIT builds with an aftermarket intake, turbo-back exhaust, intercooler, and an Accessport tune. The 1,000-mile break-in period for Kevlar discs is longer than the 500-mile requirement for organic kits - this extended break-in is normal for Kevlar and should be completed before hard track use or boost to ensure proper seating and maximum holding capacity.

2018 VIN attention required: Subaru changed the WRX clutch diameter from 230mm to 240mm partway through the 2018 model year (per TSB 03-79-18R). WRX owners with a VIN at or above J*806877 must also purchase the Action Clutch AC105FW flywheel to use this kit - without it, the 230mm disc will not properly mate to the 240mm factory flywheel. Owners with a VIN below J*806877 can install directly onto the factory flywheel after resurfacing. A flywheel is not included. This kit is not suitable for drag racing or drifting applications. This item is non-returnable and non-refundable unless the product arrives defective. SFI Spec 1.1 certified. Backed by Action Clutch's 1-year limited manufacturer defect warranty.
