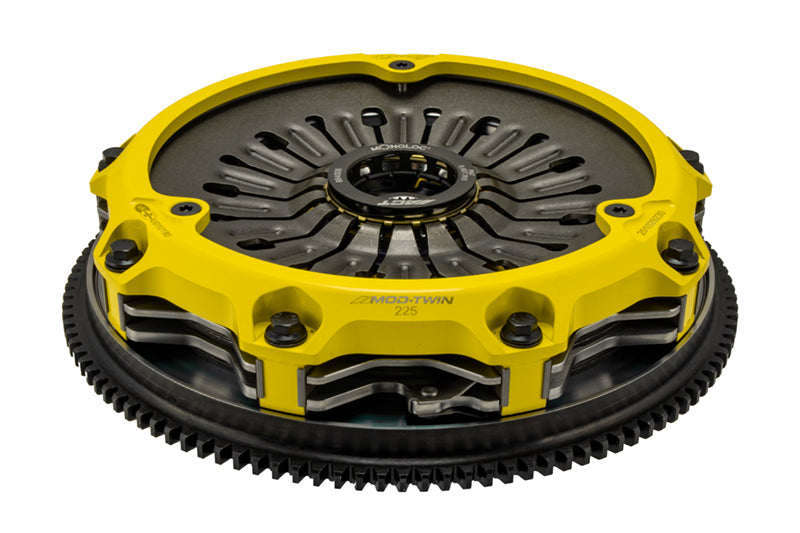

ACT T1S-M05 Twin Disc Clutch Kit for 2008-2015 Mitsubishi Evo X 2.0L

Vehicle Fitment

• 2008-2015 Mitsubishi Lancer Evolution (GSR, RS, Final Edition, CZ4A, 2.0L Turbo I4, AWD, 5-Speed Manual)

Features

• Mod-Twin dual disc clutch system for high torque capacity
• Sprung Mono-Drive hub reduces drivetrain shock
• Organic friction discs for smooth engagement and drivability
• Soft pedal effort with progressive engagement feel
• Designed for high-powered AWD street and street/strip builds
• Steel-backed friction plates for durability and heat resistance
• Exclusive diaphragm design with four-stage heat treatment
• Fully rebuildable modular clutch system
• SFI 1.2 certified and dynamically balanced components

Specifications

• Clutch Type: Twin Disc (Mod-Twin 225)
• Disc Diameter: 225mm (8.8 in)
• Disc Material: Organic
• Torque Capacity: 700 ft-lbs (crank)
• Torque Increase Over OE: +97%
• Input Spline: 23 spline
• Input Shaft Diameter: 1 in
• Pressure Plate: Heavy Duty
• Weight: ~28.1 lbs
• Drivetrain: AWD only
• Transmission: 5-speed manual only

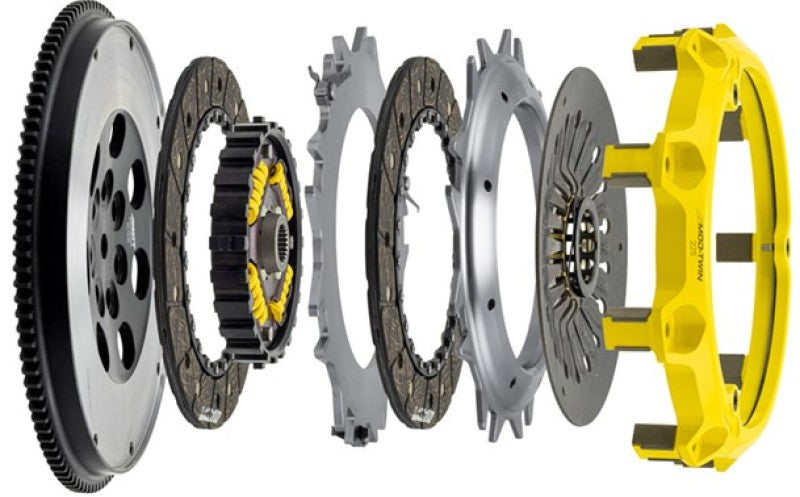

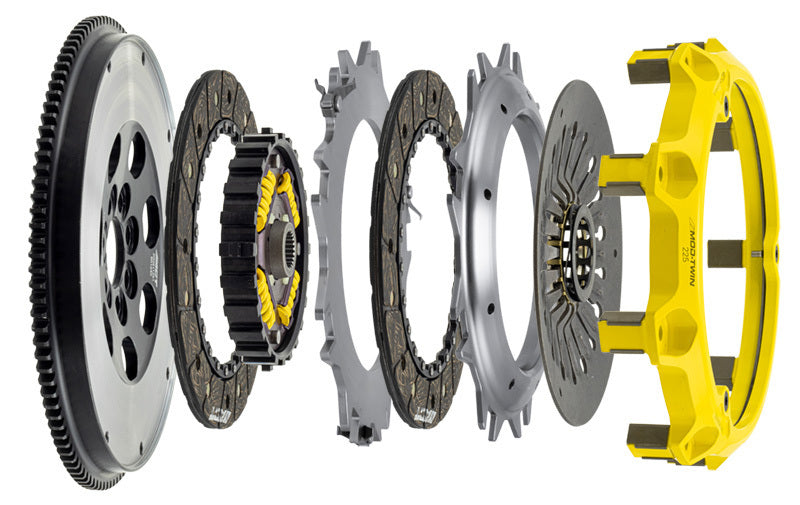

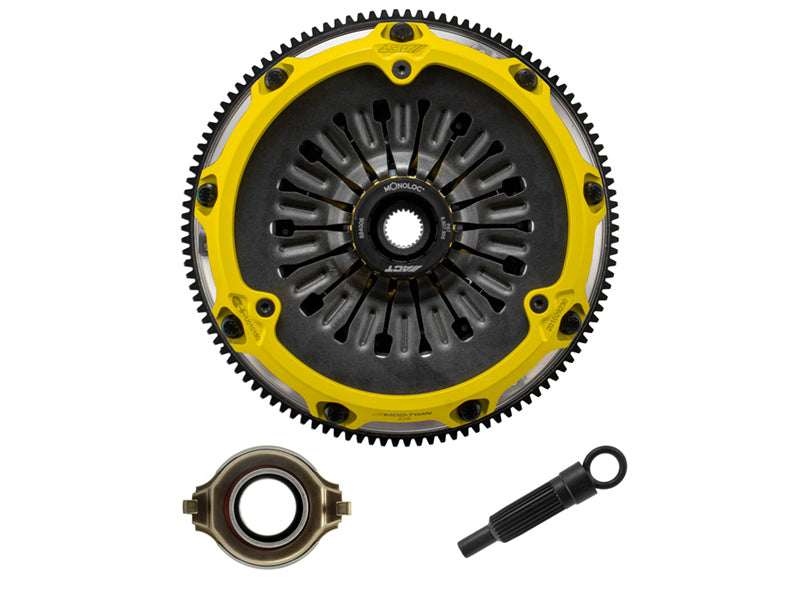

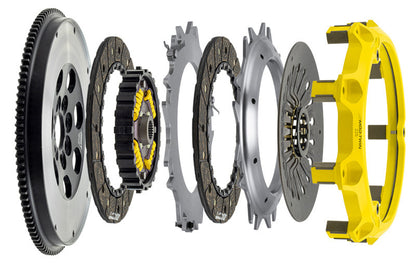

Included Components

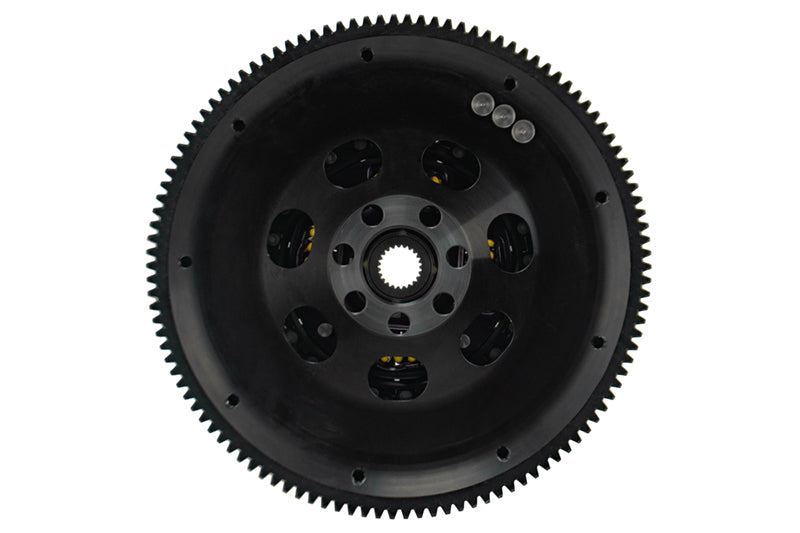

• 1x CNC-machined flywheel
• 1x pressure plate cover
• 2x organic friction discs
• 1x floater plate
• 1x sprung Mono-Drive hub assembly
• 1x Monoloc collar
• 1x release bearing
• 1x alignment tool
• 1x pilot bearing (if applicable)

Product Description

The ACT T1S-M05 Mod-Twin 225 HD Sprung Street Clutch Kit is engineered for high-performance Mitsubishi Evolution X applications, delivering exceptional torque capacity and durability for demanding street and street/strip builds. Designed specifically for AWD Evo X models with 5-speed manual transmissions, this twin-disc system combines two organic friction surfaces with a sprung Mono-Drive hub to provide smooth engagement, reduced drivetrain shock, and extended component life.

With a torque capacity of up to 700 ft-lbs, this clutch kit is ideal for modified and high-horsepower setups that exceed the limits of OEM components. The included lightweight, CNC-machined flywheel and precision-balanced assembly ensure consistent performance and reliability. Thanks to its modular and rebuildable design, the ACT Mod-Twin system offers long-term serviceability, making it a top choice for enthusiasts seeking both daily drivability and track-ready performance.

Fitment confirmed through 2015 for Mitsubishi Lancer Evolution X (CZ4A platform). 2025 coverage unconfirmed at time of listing. This kit is designed exclusively for AWD models with 5-speed manual transmission and does not fit SST (dual-clutch) variants.
