ACT T2SS-F17 Mod-Twin 10.5 XT Sprung Street Clutch Kit for 24-26 Ford Mustang

Vehicle Fitment

• 2024-2026 Ford Mustang GT - 5.0L V8 (S650 chassis, manual transmission)
• 2024-2026 Ford Mustang GT Premium - 5.0L V8 (S650 chassis, manual transmission)

Fitment Notes

• Manual transmission applications only - not compatible with automatic or dual-clutch variants
• Flywheel IS included - this is a complete twin disc kit with CNC-machined and dynamically balanced flywheel; no separate flywheel purchase required
• Sprung Mono-Drive hub - provides smooth street engagement and torsional vibration damping; significantly more daily-driveable than rigid hub variants
• Recommended for street use and street/strip applications - handles supercharger, turbo, and nitrous power adders
• Street disc requires a 300-500 mile break-in period with mild engagement before spirited or track use
• Fully rebuildable - replacement discs and most components can be ordered separately
• SFI certified

Features

• Mod-Twin 10.5" dual-disc design - doubles the organic friction surfaces versus a single-disc kit, providing substantially greater heat capacity, wear life, and torque holding power for high-powered Mustang GT builds
• ACT Xtreme pressure plate with forged aluminum cover - exclusive diaphragm geometry produces very high clamping load with a consistently light pedal feel; lighter than stock OEM feel despite significantly higher torque capacity
• Four-stage heat-treated diaphragm springs - ensure consistent clamping force and long service life under demanding street and competition conditions
• Sprung Mono-Drive hub assembly - torsional damper spring hub reduces drivetrain shock from torsional vibration for smooth street engagement and OE to mild transmission gear noise
• Steel-backed organic friction plates - deliver stable friction coefficient, good heat capacity, and long clutch life versus pure organic discs; superior street manners compared to ceramic race discs
• Positive Lift Floater System - proprietary floater design eliminates rattle and post wear common to conventional twin disc designs; allows quiet, rattle-free operation during disengagement
• Patented Monoloc Collar - self-adjusts for disc wear over time to maintain consistent pedal feel and engagement point; ensures equal and simultaneous disengagement of both discs

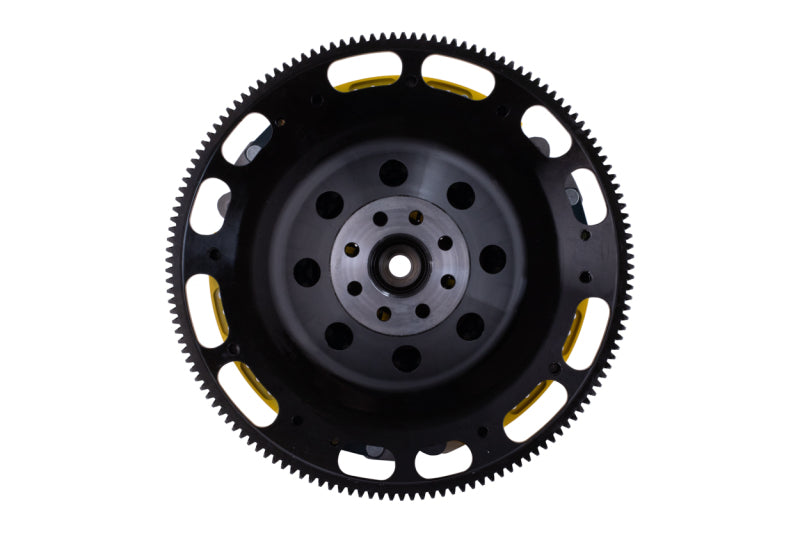

• CNC-machined and dynamically balanced flywheel - included with the kit; 18% lighter than the OEM 215mm assembly (full kit weighs approximately 49 lbs. vs. 60 lbs. OEM) for improved throttle response
• Computer spin balanced to within .25 oz-in - tighter than OEM production tolerance of .50 oz-in
• 100% clamp load tested - every pressure plate individually verified before shipment
• Torque capacity up to 986 ft-lbs. at the crank - handles a wide range of power adders on the 5.0L Coyote platform

Specifications

• Part Number: T2SS-F17
• System: Mod-Twin 10.5" (Twin Disc)
• Pressure Plate Type: Xtreme (T2)
• Disc Type: Sprung Street (Mono-Drive Hub)
• Disc Material: Organic
• Clutch Disc Diameter: 10.5 in. (267mm)
• Input Shaft Diameter: 1.0 in.
• Hub Type: Sprung Mono-Drive
• Torque Capacity: Up to 986 ft-lbs. (at crank)
• SFI Certification: SFI certified
• Balance: Computer spin balanced to within .25 oz-in
• Warranty: 12 months

Included Components

• 1x ACT Xtreme Pressure Plate Cover with Forged Aluminum Cover
• 1x Diaphragm Spring and Face
• 2x Steel-Backed Organic Friction Plates
• 1x Sprung Mono-Drive Hub Assembly
• 1x Positive Lift Floater
• 1x Patented Monoloc Collar
• 1x CNC-Machined Dynamically Balanced Flywheel
• 1x Clutch Release Bearing
• 1x Clutch Alignment Tool
• 1x Pilot Bearing (where applicable)

Product Description

The ACT T2SS-F17 is a Mod-Twin 10.5 Xtreme Sprung Street twin disc clutch kit built for the 2024-2026 Ford Mustang GT (S650) with the 5.0L Coyote V8 and manual transmission. Rated to hold up to 986 ft-lbs. of torque at the crank, this kit is engineered to meet the demands of modified and power-adder-equipped Mustangs - supercharged, turbocharged, nitrous, or otherwise - while remaining fully street-driveable in a way that conventional race-oriented twin disc setups are not.

The 10.5" dual-disc design doubles the friction surface area of the OEM clutch and is paired with ACT's Xtreme pressure plate - ACT's highest-load diaphragm design - mounted in a forged aluminum cover. Despite the extreme torque capacity, the Xtreme's unique diaphragm geometry produces a pedal effort that is lighter than stock, a key advantage over other performance twin disc systems. The sprung Mono-Drive hub assembly preserves the torsional damping properties of the stock clutch disc, reducing drivetrain shock and gear rattle for everyday drivability. ACT's patented Monoloc Collar adjusts for wear over the clutch's service life and ensures both discs release simultaneously for crisp, consistent clutch action. The included CNC flywheel brings the full assembly in approximately 18% lighter than the OEM unit, sharpening throttle response without sacrificing drivability. This kit is fully rebuildable, SFI certified, and requires a standard 300-500 mile street break-in period.
