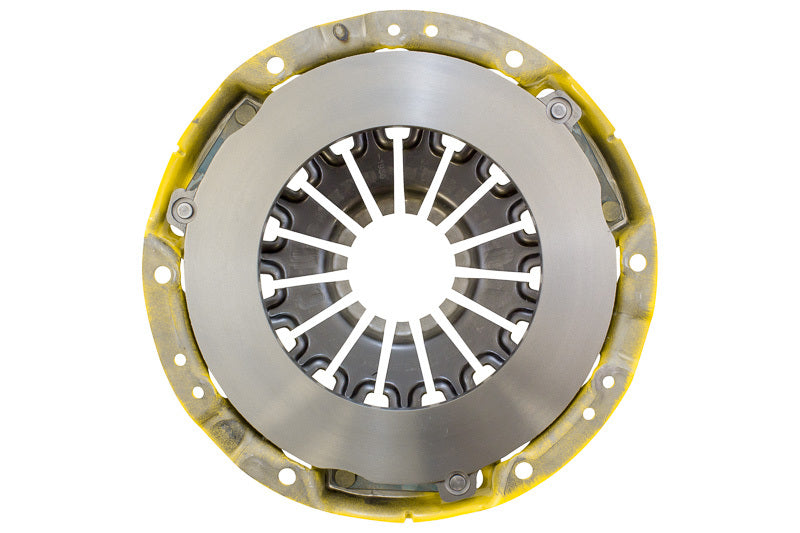

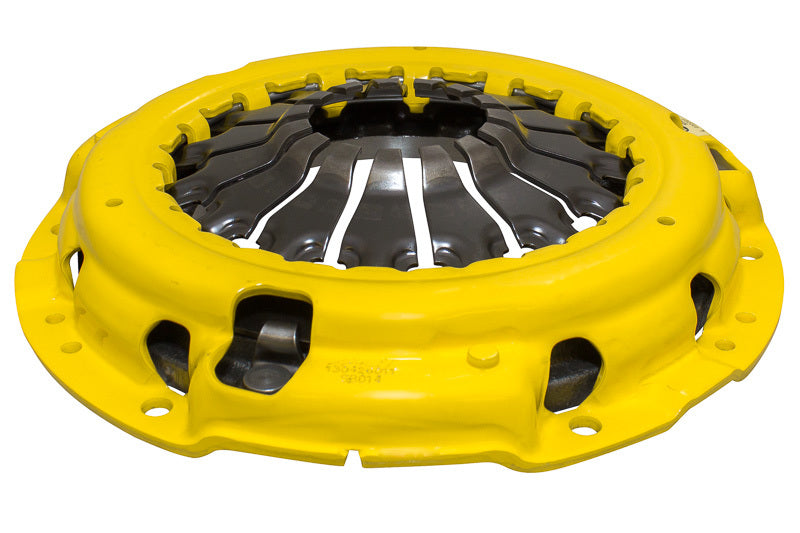

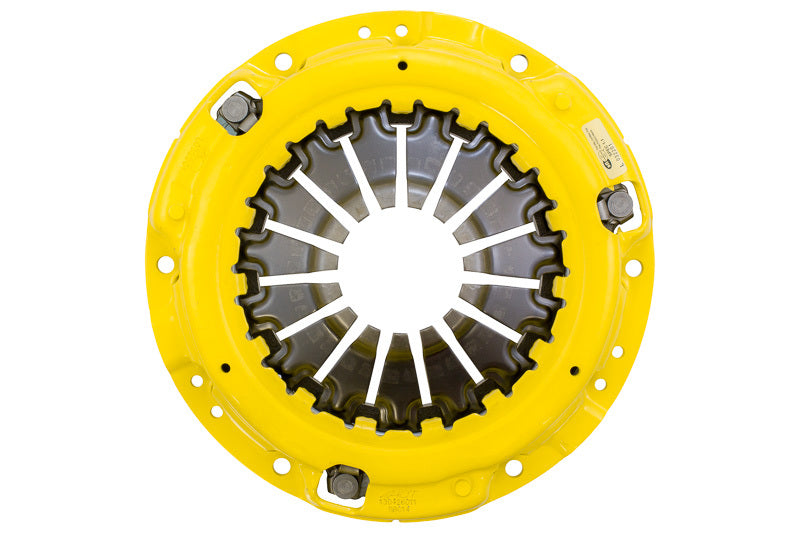

ACT SB014 HD Clutch Pressure Plate for 2006-2018 Subaru WRX/Legacy GT 2.5T

Vehicle Fitment

• 2006-2007 Subaru Impreza WRX (2.5L Turbo EJ255, Manual)
• 2008-2014 Subaru Impreza WRX (2.5L Turbo EJ255, Manual)
• 2015-2018 Subaru WRX (2.0L Turbo FA20F, Manual - see Fitment Notes for 2018)
• 2005-2006 Subaru Legacy GT (2.5L Turbo EJ255, 5-Speed Manual)
• 2006 Subaru Legacy GT Spec.B (2.5L Turbo EJ255, 5-Speed Manual)
• 2007-2009 Subaru Legacy GT Limited (2.5L Turbo EJ255, 5-Speed Manual)
• 2010 Subaru Legacy 2.5GT (2.5L Turbo EJ255, 5-Speed Manual)
• 2005-2009 Subaru Outback XT (2.5L Turbo EJ255, 5-Speed Manual)
• 2006-2007 Subaru Forester XT Limited (2.5L Turbo EJ255, Manual)
• 2008 Subaru Forester 2.5 XT (2.5L Turbo EJ255, Manual)
• 2006 Subaru Baja Turbo (2.5L Turbo EJ255, Manual)
• 2006 Saab 9-2X Aero (2.5L Turbo H4, Manual)

Fitment Notes

• 2018 WRX fitment: Subaru incorporated 240mm clutch components mid-production starting at VIN J*806877. Confirm VIN before ordering - early 2018 production (230mm) is compatible; late 2018 production is not.
• Legacy GT, Outback XT, and Legacy GT Spec.B applications are 5-Speed Manual only - not compatible with 6-speed transmissions on these models.
• For 2006 and newer WRX applications, must be used with ACT flywheel or factory OEM flywheel - aftermarket non-ACT flywheels are not recommended.
• Recommended disc: ACT Street or Race disc. Not compatible with OEM-replacement clutch discs on some applications.

Features

• Exclusive diaphragm design increases clamp load by 20-50% over stock for improved torque capacity
• Four-stage heat-treating process on all diaphragms for maximum durability and consistent performance
• Induction-hardened diaphragm reduces wear and promotes smooth, reliable operation
• Stronger drive straps and rivets prevent breakage and ensure quiet, trouble-free engagement
• Precision CNC-machined cover stampings for greater consistency and rigidity
• Dynamically computer balanced for smooth high-RPM reliability
• Light to moderate pedal effort - suitable for street and performance driving
• SFI 1.1 certified for street and race use

Specifications

• Pressure Plate Type: Heavy Duty Diaphragm-Style
• Diameter: 9.055 in / 230 mm
• Weight: 10.5 lbs
• Clamp Load Increase: 20-50% over OEM
• SFI Rating: 1.1
• Compatible Engines: EJ255 2.5L Turbo H4, FA20F 2.0L Turbo H4
• Transmission: Manual (5-Speed and 6-Speed where applicable)
• Recommended Disc: Street or Race

Included Components

• 1x ACT Heavy Duty Clutch Pressure Plate (SB014)

Product Description

The ACT SB014 Heavy Duty Pressure Plate is a direct-fit performance upgrade for a wide range of turbocharged Subaru and Saab platforms sharing the EJ255 and FA20F drivetrain. Delivering 20-50% more clamping force than stock, it provides confident torque transfer for modified engines while maintaining a street-friendly light-to-moderate pedal feel - making it one of the most versatile and popular clutch components for the WRX platform.

Built to ACT's exacting standards, the SB014 features a four-stage heat-treated diaphragm, precision CNC-machined cover stampings, and reinforced drive straps and rivets for long-term reliability under demanding conditions. It is 100% clamp load tested and dynamically balanced for smooth operation at high RPM. Paired with an ACT or OEM flywheel and a compatible street or race disc, this pressure plate delivers a complete and proven clutch solution for street performance and track use.
