ACT SB11-HDG6 HD 6-Puck Clutch Kit for 05-17 Subaru WRX 2.0L 2.5L

Vehicle Fitment

• 2005-2017 Subaru WRX (GD/GG/VA, 2.0L H4 Turbo, 2.5L H4 Turbo, AWD)
• 2005-2012 Subaru Legacy GT (BL/BP, 2.5L H4 Turbo, AWD)
• 2005-2009 Subaru Outback XT (BP, 2.5L H4 Turbo, AWD)
• 2004-2008 Subaru Forester XT (SG, 2.5L H4 Turbo, AWD)
• 2003-2006 Subaru Baja Turbo (2.5L H4 Turbo, AWD)

Fitment confirmed through 2024. 2025 coverage unconfirmed at time of listing.

Important Fitment Note: This is a 240mm conversion kit designed to replace OEM 230mm clutch systems. Not compatible with mid-2018+ WRX models equipped with revised factory 240mm clutch components (VIN-specific restriction).

Features

• Heavy Duty pressure plate with 20-50% increased clamp load
• 6-puck sprung ceramic race disc for high torque capacity
• Designed for high horsepower street and track applications
• Spring-centered hub reduces drivetrain shock and vibration
• Light to moderate pedal effort with aggressive engagement
• High heat tolerance ceramic friction material for durability
• Precision-balanced components for smooth high-RPM operation
• Faster shifting response compared to OEM clutch systems
• ACT diaphragm design improves clutch life and consistency

Specifications

• Disc Diameter: 240mm (9.4")
• Disc Type: 6-Puck Sprung Race Disc
• Disc Material: Ceramic
• Pressure Plate Type: Heavy Duty (HD)
• Torque Capacity: Up to 574 ft-lbs
• Torque Increase Over OE: Up to 86%
• Spline Count: 24
• Input Shaft Diameter: 1"
• Flywheel Type: Streetlite (included)
• Product Weight: ~29 lbs

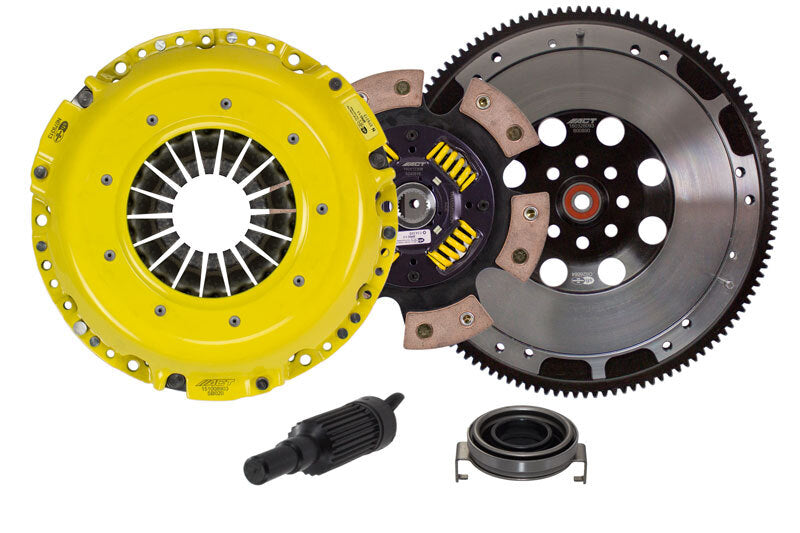

Included Components

• 1x ACT Heavy Duty Pressure Plate (SB020)
• 1x ACT 6-Puck Sprung Race Clutch Disc (6240518)
• 1x ACT Streetlite Flywheel (600890)
• 1x ACT Release Bearing (RB846)
• 1x ACT Pilot Bearing (PB1004)
• 1x ACT Alignment Tool (AT90)
• 1x Pressure Plate Bolt Kit

Product Description

The ACT SB11-HDG6 Heavy Duty 6-puck clutch kit is engineered for turbocharged Subaru platforms requiring substantial increases in torque capacity and performance. Featuring a ceramic 6-puck sprung race disc paired with ACT's Heavy Duty pressure plate, this kit delivers aggressive engagement, rapid shifting, and excellent heat resistance for high-performance street and track builds.

This kit upgrades factory 230mm clutch systems to a stronger 240mm setup and includes a Streetlite flywheel to reduce rotational mass, improving throttle response and acceleration. With up to 574 ft-lbs torque capacity and significantly increased clamp load, it is ideal for modified WRX, Legacy GT, Forester XT, Baja Turbo, and Outback XT applications.

Due to its aggressive engagement characteristics, this clutch is best suited for experienced drivers and performance-focused vehicles. Proper installation and compatibility verification are critical, especially for newer WRX models with updated factory clutch systems. No lift or drop height applies, as this is a drivetrain component.
