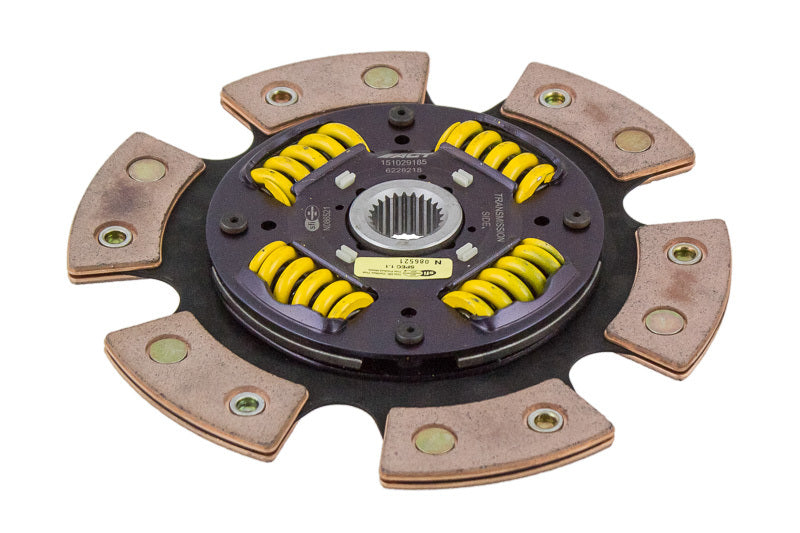

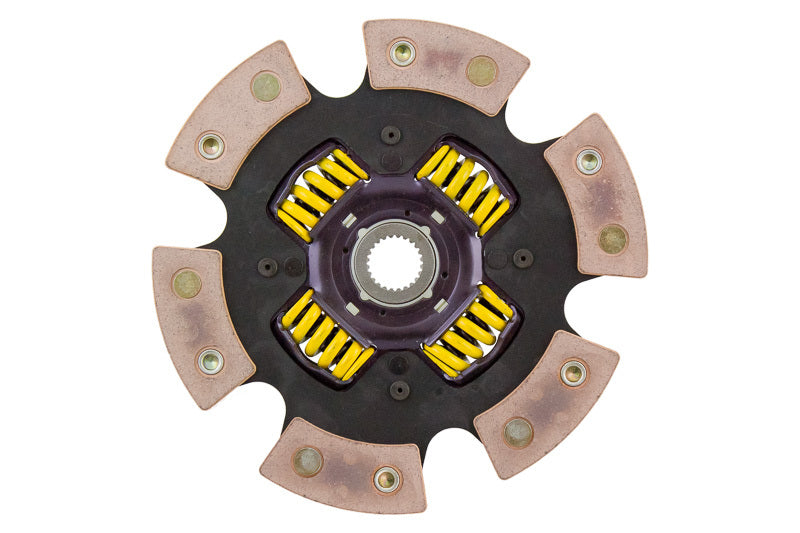

ACT 6228218 6-Pad Sprung Race Clutch Disc for 2004-2021 Subaru WRX/STI/Legacy

Vehicle Fitment

• 1991-1994 Subaru Legacy Sport, 2.2L H4 Turbo
• 2002-2005 Subaru Impreza WRX, 2.0L H4 Turbo -- must use ACT flywheel or 2003-2005 WRX flywheel
• 2004-2005 Subaru Baja Turbo, 2.5L H4 Turbo
• 2004-2005 Subaru Forester XT / XT Premium, 2.5L H4 Turbo -- must use ACT flywheel or 2003-2005 WRX flywheel
• 2005 Saab 9-2X Aero, 2.0L H4
• 2005-2012 Subaru Legacy GT / GT Limited, 2.5L H4 Turbo
• 2005-2006 Subaru Outback XT / XT Limited, 2.5L H4 Turbo
• 2006 Saab 9-2X Aero, 2.5L H4
• 2006-2008 Subaru Baja Turbo, 2.5L H4 Turbo
• 2006-2008 Subaru Forester XT / XT Limited / Sports XT, 2.5L H4 Turbo
• 2006-2014 Subaru Impreza WRX / WRX Limited / WRX TR / WRX Premium, 2.5L H4
• 2007-2009 Subaru Legacy GT spec.B, 2.5L H4 Turbo
• 2008-2009 Subaru Outback 2.5 XT / XT Limited, 2.5L H4 Turbo
• 2013-2014 Subaru WRX Base / Limited, 2.5L H4
• 2015-2018 Subaru WRX Base / Limited / Premium / Sport / Sport-tech, 2.0L H4
• 1993-2005 Subaru Impreza GT / WRX [JDM], 2.0L H4 Turbo
• 2006-2007 Subaru Impreza WRX STI [JDM], 2.5L H4 Turbo

Fitment Notes

• Sold individually -- disc only, not a complete clutch kit
• 228mm / 9" disc diameter -- confirm fitment with your pressure plate before ordering
• 2002-2005 WRX and 2004-2005 Forester XT must use ACT flywheel or 2003-2005 WRX OEM flywheel
• Not compatible with 2018 WRX production after mid-year VIN J*806877 -- Subaru revised to 240mm clutch components at that VIN
• SFI Spec 1.1 certified -- legal in all racing organizations requiring SFI certification
• ACT recommends replacing complete clutch assembly rather than disc only when performing clutch service

Features

• 6-pad spring-centered ceramic race disc
• 28% more friction and torque capacity over organic disc material
• Spring-center construction dampens torsional vibrations -- quieter operation than rigid race discs
• Wraparound spring windows and thicker retainer stampings -- increased spring support and strength
• Heat-treated spring steel drive plate -- reduces stress concentrations
• Top-grade rivets -- secure fastening of friction material
• Aggressive engagement with fast shift action
• Computer spin balanced to within .25 oz-in
• SFI Spec 1.1 certified

Specifications

• Part Number: 6228218
• Type: 6-pad sprung race disc
• Disc diameter: 9" / 228mm
• Input shaft diameter: 1"
• Input spline count: 24
• Friction material: Ceramic
• Certification: SFI Spec 1.1
• Quantity: Sold individually
• Warranty: 12 months

Included Components

• 1x ACT 6-pad sprung race clutch disc

Product Description

The ACT 6228218 is a standalone 6-pad spring-centered ceramic race clutch disc compatible with ACT kit platforms spanning 1991-2018 Subaru and 2005-2006 Saab 9-2X applications. At 228mm (9") in diameter with a 1" / 24-spline input shaft, it is used as the disc component in ACT kit numbers SB9-HDG6 and SB5-HDG6, and is sold separately for disc replacement without replacing the full clutch assembly.

The 6-pad spring-centered design uses high-quality ceramic friction materials that provide 28% greater friction and torque capacity over organic compounds, while the spring-center construction dampens torsional vibrations for quieter operation than a rigid race disc. ACT's wraparound spring windows and thicker retainer stampings provide spring support and reduce stress concentrations. Computer spin balanced to within .25 oz-in for smooth high-RPM reliability. SFI Spec 1.1 certified. Note: 2002-2005 WRX and 2004-2005 Forester XT applications require the ACT flywheel or 2003-2005 WRX OEM flywheel. Not compatible with 2018 WRX production after VIN J*806877 -- Subaru revised to 240mm clutch components at that point. Backed by ACT's 12-month warranty.
