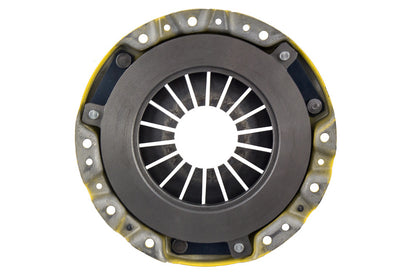

ACT H021 Heavy Duty Clutch Pressure Plate for 00-09 Honda S2000 F20C/F22C1

Vehicle Fitment

• 2000-2003 Honda S2000 Base (2.0L F20C1 I4, RWD, Manual)
• 2004-2009 Honda S2000 Base (2.2L F22C1 I4, RWD, Manual)
• 2008-2009 Honda S2000 CR (2.2L F22C1 I4, RWD, Manual)

Features

• Exclusive diaphragm design increases clamp load by 20-50%
• Four-stage heat-treated diaphragm for enhanced performance and durability
• Precision cover stampings ensure rigidity and consistency
• Light to moderate pedal effort with positive engagement
• Extended disc life due to reduced deflection
• 100% clamp load tested and dynamically balanced for smooth high RPM reliability
• Recommended for street and race use
• SFI 1.1 certified for motorsport compliance

Specifications

• Part Number: H021
• Material: High-strength steel
• Friction Surface Diameter: 8.3 inches (212 mm)
• Product Weight: 10.1 lbs
• Pressure Plate Type: Heavy Duty
• Installation: Direct bolt-on replacement
• Warranty: 12 months
• Country of Origin: USA

Included Components

• 1x ACT H021 Heavy Duty Clutch Pressure Plate
• Installation Instructions

Product Description

The ACT H021 Heavy Duty Clutch Pressure Plate is engineered to enhance the performance of 2000-2009 Honda S2000 models equipped with F20C1 or F22C1 engines. Featuring an exclusive diaphragm design, this pressure plate increases clamp load by 20-50%, providing improved torque capacity and clutch engagement.

Constructed from high-strength steel and subjected to a four-stage heat-treating process, the H021 offers exceptional durability and reduced deflection. Precision cover stampings ensure consistent performance, while the light to moderate pedal effort maintains drivability. SFI 1.1 certification makes it suitable for both street and race applications. Installation is straightforward, utilizing factory mounting points without the need for modifications.
