ACT AI4-SPG6 Sport / Race Sprung 6-Pad Clutch Kit for Acura Integra/Honda Civic

Vehicle Fitment

• 1994-2001 Acura Integra (RS, LS, GS, GS-R, Type R, Special Edition, 1.8L B18 I4)
• 1994-1997 Honda Civic del Sol VTEC (1.6L B16A2 I4)
• 1999-2000 Honda Civic Si (EM1, 1.6L B16A2 I4)
• 1998-2001 Honda CR-V (LX, EX, SE, 2.0L B20 I4)

Fitment Notes

• Hydraulic transmission only
• 220mm friction surface diameter
• 1-1/32" x 24-spline input shaft
• Recommended for high horsepower street or race use
• Flywheel not included
• Compatible flywheel: ACT 600210 / 600215
• Direct OE replacement architecture

Features

• Sport pressure plate
• 20-40% increase in clamp load over OE
• 280 ft-lbs torque capacity
• 6-pad spring-centered race disc
• Premium ceramic friction material
• Exclusive diaphragm design
• Four-stage heat-treated diaphragm
• Precision cover stamping
• Reinforced for reduced flex
• Wraparound spring windows
• Thicker retainer stampings
• Heavy-duty torsional dampening springs
• Spring-center construction dampens torsional vibrations
• Aggressive engagement with fast shift action
• 28% more friction than organic materials
• SFI 1.1 certified race disc
• Computer balanced for high RPM operation
• Includes pilot bearing, release bearing, and alignment tool
• 1-year limited warranty
• Made in USA

Specifications

• Series: Sport / Race Sprung 6-Pad
• Pressure plate: Sport (H025S)
• Disc: 6-Pad Sprung Race (6220110)
• Disc material: Ceramic
• Friction surface diameter: 220mm (8.66")
• Torque capacity: 280 ft-lbs
• Clamp load increase: 20-40% over OE
• Input shaft diameter: 1-1/32"
• Spline count: 24
• Pilot bearing: PB1002
• Release bearing: RB817
• Alignment tool: AT88
• SFI certification: 1.1 (race disc)
• Transmission style: Hydraulic
• Country of origin: USA
• Warranty: 1-year limited

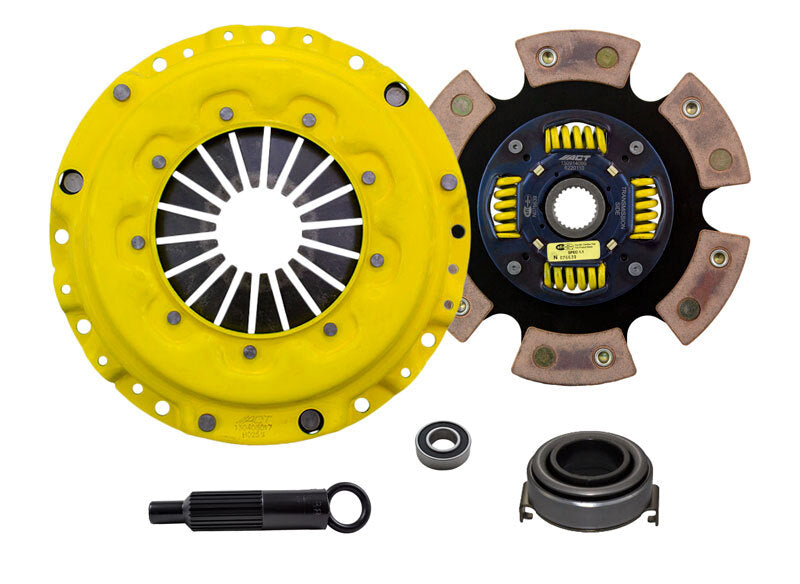

Included Components

• 1x ACT Sport pressure plate
• 1x ACT 6-Pad Sprung Race ceramic clutch disc
• 1x ACT release bearing (RB817)
• 1x ACT pilot bearing (PB1002)
• 1x ACT clutch alignment tool (AT88)

Product Description

The ACT AI4-SPG6 Sport / Race Sprung 6-Pad Clutch Kit is engineered for the B-series Honda/Acura platform with hydraulic transmissions -- covering the 1994-2001 Acura Integra (all trims including RS, LS, GS, GS-R, Type R, and Special Edition), 1994-1997 Honda Civic del Sol VTEC, 1999-2000 Honda Civic Si (EM1), and 1998-2001 Honda CR-V. The kit pairs ACT's Sport pressure plate with the legendary 6-pad spring-centered race clutch disc, delivering 280 ft-lbs of torque capacity and 20-40% increased clamp load over the factory unit while maintaining a stock-to-moderate pedal feel suitable for daily driving.

ACT's Sport pressure plates use an exclusive diaphragm design that increases clamp load while reducing deflection to maximize clutch life -- all diaphragms undergo a four-stage heat-treating process for unparalleled performance. The 6-pad spring-centered race disc features ceramic friction material that produces 28% more friction and torque capacity over standard organic discs, while the spring-center construction properly dampens torsional vibrations for quieter operation than rigid race discs. Wraparound spring windows, thicker retainer stampings, and a heat-treated spring steel drive plate provide spring support and reduce stress concentrations for race-level reliability. SFI 1.1 certified. Kit includes pressure plate, disc, release bearing (RB817), pilot bearing (PB1002), and alignment tool (AT88) -- flywheel not included; pair with ACT 600210 / 600215 for a complete upgrade. Computer balanced and made in the USA.
