ACT TM1-HDR6 Heavy Duty/Race Rigid 6-Pad Clutch Kit for 1991-1995 Toyota MR2

Vehicle Fitment

• 1991-1995 Toyota MR2 Turbo (2.0L 3SGTE)

Features

• Heavy Duty diaphragm pressure plate increases clamp load and reduces deflection
• 6-pad rigid race disc with ceramic friction material for aggressive engagement
• Chrome-moly hub heat-treated for strength and durability
• Lightweight design allows for quicker shifts and smooth, trouble-free service
• Designed for larger clutch sizes to absorb more heat
• Precision cover stampings provide rigidity and consistency
• Includes release bearing (RB446) and alignment tool (AT72)

Specifications

• Torque Capacity: 500 ft-lbs (69% over OEM)
• Disc Diameter: 9.3 in (236 mm)
• Disc Type: Race Disc
• Spline Count: 21
• Spline Size: 1-1/8 in (28.575 mm)
• Pressure Plate Type: Heavy Duty
• Product Weight: 13.7 lbs

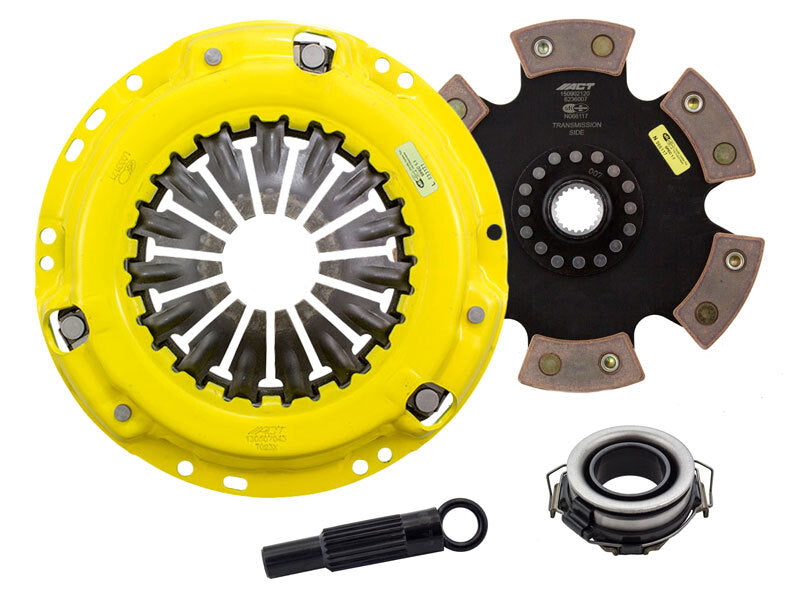

Included Components

• 1x Heavy Duty Pressure Plate (T023)
• 1x 6-Pad Rigid Race Disc (6236007)
• 1x Release Bearing (RB446)
• 1x Alignment Tool (AT72)

Product Description

The ACT TM1-HDR6 Heavy Duty/Race Rigid 6-Pad Clutch Kit is engineered for high-performance applications, specifically for the 1991-1995 Toyota MR2 Turbo with the 2.0L 3SGTE engine. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and maximize clutch life. All diaphragms undergo a four-stage, heat-treating process for unparalleled performance.

The 6-pad rigid race disc is made with high-quality ceramic friction materials, and the chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

This kit includes the necessary components for installation: the Heavy Duty pressure plate (T023), 6-pad rigid race disc (6236007), release bearing (RB446), and alignment tool (AT72). Please note that a flywheel is not included and must be purchased separately.
