ACT SB12-XTG6 Xtreme 6-Pad Clutch for 2005-2026 Subaru WRX 2.5L/2.0L/2.4L

Vehicle Fitment

• 2005-2006 Subaru Legacy GT - 2.5L Turbo H4 EJ255 - AWD - Manual
• 2005, 2007-2009 Subaru Legacy GT Limited - 2.5L Turbo H4 EJ255 - AWD - Manual
• 2006-2009 Subaru Legacy GT spec.B - 2.5L Turbo H4 EJ255 - AWD - Manual
• 2010-2012 Subaru Legacy 2.5GT - 2.5L Turbo H4 EJ255 - AWD - Manual
• 2005-2006 Subaru Outback XT - 2.5L Turbo H4 EJ255 - AWD - Manual
• 2005-2009 Subaru Outback XT Limited - 2.5L Turbo H4 EJ255 - AWD - Manual
• 2006 Subaru Baja Turbo - 2.5L Turbo H4 EJ255 - AWD - Manual
• 2006-2008 Subaru Forester XT Limited - 2.5L Turbo H4 EJ255 - AWD - Manual
• 2008 Subaru Forester Sports 2.5 XT - 2.5L Turbo H4 EJ255 - AWD - Manual
• 2006-2014 Subaru Impreza WRX - 2.5L Turbo H4 EJ255 - AWD - Manual
• 2006-2007 Subaru Impreza WRX Limited - 2.5L Turbo H4 EJ255 - AWD - Manual
• 2009-2014 Subaru Impreza WRX Premium - 2.5L Turbo H4 EJ255 - AWD - Manual
• 2006-2007 Subaru Impreza WRX TR - 2.5L Turbo H4 EJ255 - AWD - Manual
• 2015-2025 Subaru WRX Base - 2.0L Turbo H4 FA20 / 2.4L Turbo H4 FA24 - AWD - Manual
• 2015-2025 Subaru WRX Limited - 2.0L Turbo H4 FA20 / 2.4L Turbo H4 FA24 - AWD - Manual
• 2015-2025 Subaru WRX Premium - 2.0L Turbo H4 FA20 / 2.4L Turbo H4 FA24 - AWD - Manual
• 2024 Subaru WRX TR - 2.4L Turbo H4 FA24 - AWD - Manual
• 2025 Subaru WRX TS - 2.4L Turbo H4 FA24 - AWD - Manual
• 2026 Subaru WRX - 2.4L Turbo H4 FA24 - AWD - Manual

Fitment Notes

• 240mm conversion clutch kit; the included ACT XACT Prolite flywheel is required for the conversion.
• Designed for compatible manual-transmission Subaru WRX and turbocharged Subaru applications.
• WRX STI applications are excluded.
• Early EJ255 applications generally use a 230mm OEM clutch and require the 240mm ACT flywheel conversion.
• 2018 WRX applications require attention to the mid-year OEM clutch-size change; verify the vehicle's production configuration before installation.
• 2022-2026 WRX applications use the 2.4L FA24 turbo engine and manual transmission configuration.

Features

• Xtreme pressure plate engineered for maximum clamp load.
• 6-pad spring-centered ceramic race clutch disc.
• Spring-centered hub helps damp torsional drivetrain vibrations.
• Ceramic friction material provides high-temperature resistance.
• Six-pad design provides fast engagement and shifting response.
• Four-stage heat-treated diaphragm improves pressure-plate durability.
• Precision pressure-plate cover stampings improve rigidity and consistency.
• Wraparound spring windows provide additional spring support.
• Thicker spring-retainer stampings reduce stress concentrations.
• 240mm friction surface provides increased heat capacity over smaller clutch configurations.

Specifications

• Brand: ACT / Advanced Clutch Technology
• Part Number: SB12-XTG6
• Product Type: Xtreme Race Sprung 6-Pad Clutch Kit
• Pressure Plate: ACT Xtreme (XT)
• Disc Type: 6-Pad Sprung Ceramic Race Disc
• Clutch Disc Diameter: 240mm / 9.4 in
• Hub Type: Spring-centered / Sprung
• Torque Capacity: 681 lb-ft at the crank
• Input Shaft Diameter: 1 in
• Input Spline Count: 24
• Flywheel: ACT XACT Prolite Chromoly
• Flywheel Part Number: 600895
• Flywheel Weight: 8.5 lb
• Transmission: Manual
• Drive Type: AWD

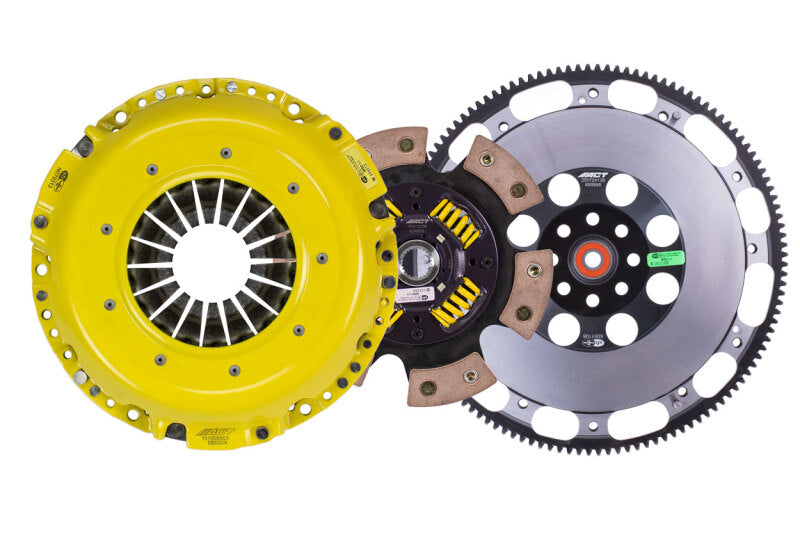

Included Components

• 1x ACT Xtreme pressure plate
• 1x 6-pad sprung ceramic race clutch disc
• 1x ACT XACT Prolite chromoly flywheel
• 1x Release bearing
• 1x Alignment tool

Product Description

The ACT SB12-XTG6 Xtreme Race Sprung 6-Pad Clutch Kit is a high-capacity clutch assembly engineered for demanding turbocharged Subaru applications. It combines ACT's Xtreme pressure plate with a 240mm six-pad sprung ceramic race disc and XACT Prolite chromoly flywheel. The Xtreme pressure plate provides substantially increased clamp load, while the spring-centered six-pad disc helps manage torsional vibration during aggressive driving.

The ceramic race disc is designed to withstand high temperatures and repeated hard engagement, making this clutch suited to high-performance and competition-oriented builds. ACT's four-stage heat-treated diaphragm and precision pressure-plate construction are designed to maintain rigidity and consistent operation under demanding conditions. The 240mm conversion also provides a larger friction surface than the 230mm OEM clutch used on many earlier WRX applications.

The SB12-XTG6 is rated for 681 lb-ft of torque at the crank and uses ACT XACT Prolite chromoly flywheel #600895 as part of the 240mm conversion. It is intended for compatible manual-transmission AWD Subaru applications and does not fit WRX STI models. Because Subaru changed clutch dimensions during the 2018 WRX production year, the exact vehicle configuration should be verified before installation.
