ACT SB12-HDG6 HD 6-Pad Clutch for 2006-2026 Subaru WRX 2.5L Turbo AWD

Vehicle Fitment

• 2006 Subaru Baja Turbo - 2.5L Turbo H4 EJ255 - AWD
• 2008 Subaru Forester Sports 2.5 XT - 2.5L Turbo H4 - AWD
• 2006-2008 Subaru Forester XT Limited - 2.5L Turbo H4 - AWD
• 2006-2014 Subaru Impreza WRX - 2.5L Turbo H4 EJ255/EJ257 - AWD
• 2006-2007, 2010-2014 Subaru Impreza WRX Limited - 2.5L Turbo H4 EJ255/EJ257 - AWD
• 2009-2014 Subaru Impreza WRX Premium - 2.5L Turbo H4 EJ255/EJ257 - AWD
• 2006-2007 Subaru Impreza WRX TR - 2.5L Turbo H4 - AWD
• 2010-2012 Subaru Legacy 2.5GT - 2.5L Turbo H4 - AWD
• 2005-2006 Subaru Legacy GT - 2.5L Turbo H4 - AWD
• 2005, 2007-2009 Subaru Legacy GT Limited - 2.5L Turbo H4 - AWD
• 2006-2009 Subaru Legacy GT spec.B - 2.5L Turbo H4 - AWD
• 2005-2006 Subaru Outback XT - 2.5L Turbo H4 - AWD
• 2005-2009 Subaru Outback XT Limited - 2.5L Turbo H4 - AWD
• 2015-2021 Subaru WRX Base - 2.0L Turbo H4 FA20 - AWD
• 2015-2021 Subaru WRX Limited - 2.0L Turbo H4 FA20 - AWD
• 2015-2021 Subaru WRX Premium - 2.0L Turbo H4 FA20 - AWD
• 2022-2026 Subaru WRX - 2.4L Turbo H4 FA24 - AWD
• 2024 Subaru WRX TR - 2.4L Turbo H4 FA24 - AWD
• 2025 Subaru WRX TS - 2.4L Turbo H4 FA24 - AWD

Fitment Notes

• Designed for Subaru WRX/Impreza WRX and compatible turbocharged Subaru applications listed above; STI applications are excluded.
• ACT application data specifies 5-speed and 6-speed manual transmission configurations depending on model year.
• For 2015-2018 WRX applications, clutch sizing and flywheel compatibility must be checked by model year and production configuration.
• ACT identifies a 240mm clutch configuration for later WRX applications and requires the appropriate ACT flywheel where specified.
• 2022-2026 WRX applications use the 2.4L FA24 turbo engine and 6-speed manual transmission configuration.

Features

• Heavy Duty pressure plate engineered for increased clamp load.
• 6-pad spring-centered race disc for high-performance clutch engagement.
• Spring-centered hub helps damp torsional vibrations.
• Ceramic friction material provides high-temperature performance.
• Six-pad design promotes rapid shifting and strong clutch engagement.
• Four-stage heat-treated diaphragm construction improves durability.
• Precision pressure-plate cover stampings improve rigidity and consistency.
• Wraparound spring windows provide additional spring support.
• Thicker spring-retainer stampings help reduce stress concentrations.
• Designed to handle increased heat generated during demanding performance use.
• Heavy Duty pressure plate is rated for approximately 574 lb-ft of torque capacity at the crank.

Specifications

• Brand: ACT
• Part Number: SB12-HDG6
• Product Type: HD/Race Sprung 6-Pad Clutch Kit
• Pressure Plate Type: Heavy Duty
• Clutch Disc Diameter: 9.4 in / 240 mm
• Disc Material: Ceramic
• Disc Type: Sprung
• Input Spline Quantity: 24
• Input Shaft Diameter: 1 in
• Torque Capacity: 574 lb-ft at the crank
• Transmission Compatibility: Manual transmission applications as specified by ACT
• Drive Type: Subaru Symmetrical AWD applications listed above

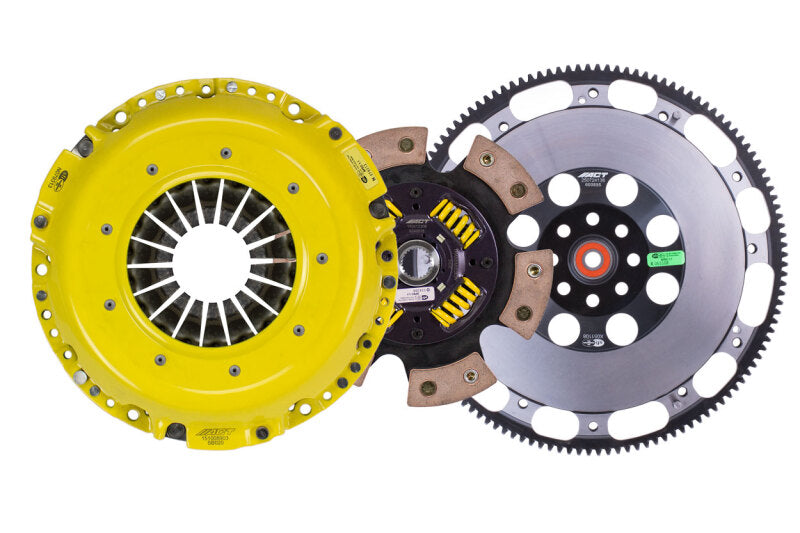

Included Components

• 1x Heavy Duty pressure plate
• 1x 6-pad spring-centered race clutch disc
• 1x Release bearing
• 1x Alignment tool
• 1x Flywheel
• 1x Clutch installation hardware set
• 1x Grease packet

Product Description

The ACT SB12-HDG6 HD/Race Sprung 6-Pad Clutch Kit is a performance-oriented clutch assembly designed for compatible turbocharged Subaru applications. It combines ACT's Heavy Duty pressure plate with a 6-pad, spring-centered ceramic race disc to provide increased clamping force, fast shifting characteristics, and improved resistance to heat during demanding driving. The spring-centered disc also helps damp torsional vibrations while maintaining the aggressive engagement characteristics expected from a race-style clutch.

The Heavy Duty pressure plate uses a heat-treated diaphragm and precision cover construction to improve rigidity, consistency, and service life. Reinforced spring-retainer construction supports the disc springs and helps reduce stress concentrations under high-load operation. With a rated capacity of approximately 574 lb-ft at the crank, this kit is suited to performance-focused Subaru owners who need substantially greater clutch holding capability than a conventional replacement clutch.

Compatibility varies by model year, engine, transmission, and clutch/flywheel configuration. Later WRX applications use different engine and clutch configurations than earlier Impreza WRX models, so the vehicle's exact year and transmission should be confirmed before installation. This kit is not intended for Subaru WRX STI applications.
