ACT SB12-HDSS HD Street Sprung Clutch Kit for 2006-2026 Subaru WRX Turbo

Vehicle Fitment

• 2005-2006 Subaru Legacy GT - 2.5L Turbo H4 EJ255 - AWD
• 2005, 2007-2009 Subaru Legacy GT Limited - 2.5L Turbo H4 EJ255 - AWD
• 2006-2007 Subaru Legacy GT spec.B - 2.5L Turbo H4 EJ255 - AWD
• 2010-2012 Subaru Legacy 2.5GT - 2.5L Turbo H4 EJ255 - AWD
• 2005-2006 Subaru Outback XT - 2.5L Turbo H4 EJ255 - AWD
• 2005-2009 Subaru Outback XT Limited - 2.5L Turbo H4 EJ255 - AWD
• 2006 Subaru Baja Turbo - 2.5L Turbo H4 EJ255 - AWD
• 2006-2007 Subaru Forester XT Limited - 2.5L Turbo H4 EJ255 - AWD
• 2006-2014 Subaru Impreza WRX - 2.5L Turbo H4 EJ255 - AWD
• 2006-2007 Subaru Impreza WRX Limited - 2.5L Turbo H4 EJ255 - AWD
• 2006-2007 Subaru Impreza WRX TR - 2.5L Turbo H4 EJ255 - AWD
• 2010-2014 Subaru Impreza WRX Limited/Premium/SE - 2.5L Turbo H4 EJ255 - AWD
• 2012-2014 Subaru WRX Base/Limited/SE - 2.5L Turbo H4 EJ255 - AWD
• 2015-2021 Subaru WRX Base/Limited/Premium - 2.0L Turbo H4 FA20 - AWD
• 2017-2021 Subaru WRX Sport/Sport-tech/Sport-tech RS - 2.0L Turbo H4 FA20 - AWD
• 2019 Subaru WRX Raiu Edition - 2.0L Turbo H4 FA20 - AWD
• 2022-2024 Subaru WRX Base/Limited/Premium/Sport/Sport-tech - 2.4L Turbo H4 FA24 - AWD
• 2024 Subaru WRX RS/TR - 2.4L Turbo H4 FA24 - AWD
• 2025 Subaru WRX High/Limited/Premium/Sport/Sport-tech/TS - 2.4L Turbo H4 FA24 - AWD
• 2026 Subaru WRX High/Limited/Premium/Series.Yellow/Sport/Sport-tech/TS/tS Performance - 2.4L Turbo H4 FA24 - AWD

Fitment Notes

• 240mm clutch upgrade requiring the ACT Prolite flywheel configuration.
• Compatible with specified manual-transmission Subaru applications only.
• Subaru WRX STI applications are excluded.
• Early EJ255 WRX applications use the 2.5L turbo engine; 2015-2021 WRX applications use the 2.0L FA20; 2022-2026 WRX applications use the 2.4L FA24.
• Exact transmission and clutch configuration should be verified before installation because the ACT SB12 system is designed around a 240mm upgrade.

Features

• Heavy Duty pressure plate engineered for increased clamp load.
• Performance Street full-face sprung clutch disc.
• Premium organic friction material for street-friendly engagement.
• High copper content improves friction-material heat transfer.
• Steel-backed lining provides increased burst strength and durability.
• Reduced marcel promotes faster shift action.
• Four-stage heat-treated diaphragm improves pressure-plate durability.
• Precision pressure-plate cover stampings provide rigidity and consistency.
• Spring-centered hub helps damp driveline torsional vibration.
• Designed for performance street and track-oriented driving.

Specifications

• Brand: ACT / Advanced Clutch Technology
• Part Number: SB12-HDSS
• Product Type: Heavy Duty Performance Street Sprung Clutch Kit
• Pressure Plate Type: Heavy Duty
• Disc Type: Performance Street Sprung
• Disc Material: Organic
• Clutch Disc Diameter: 9.4 in / 240 mm
• Input Shaft Diameter: 1 in
• Input Spline Count: 24
• Torque Capacity: 449 lb-ft at the engine crank
• Torque Capacity Over OE: 46%
• Flywheel Type: ACT Prolite
• Flywheel: ACT Prolite 240mm upgrade configuration
• Transmission: Manual transmission applications specified by ACT
• Drive Type: AWD
• Product Weight: 24.3 lb
• Warranty: 12 months
• Pressure Plate Bolt Size: M8-1.25 x 16 mm

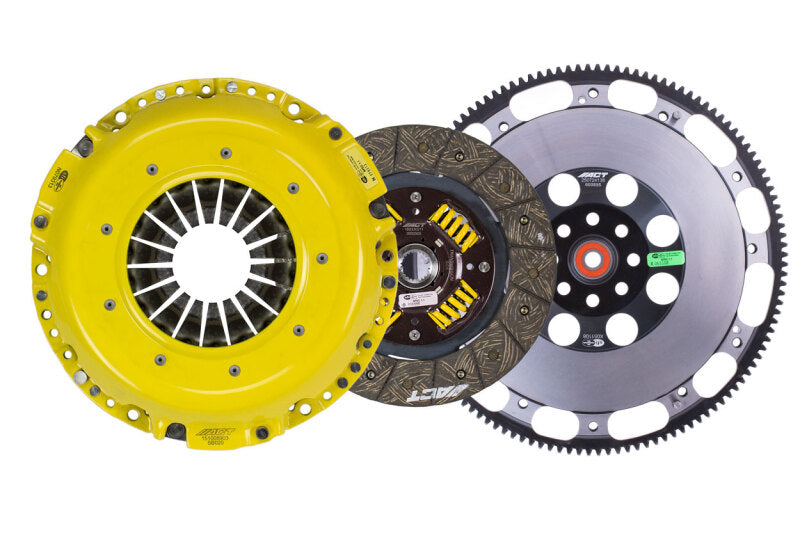

Included Components

• 1x Heavy Duty pressure plate
• 1x Performance Street sprung organic clutch disc
• 1x Prolite flywheel
• 1x Release bearing
• 1x Alignment tool
• 1x Pressure plate bolt set
• 1x Grease packet

Product Description

The ACT SB12-HDSS Heavy Duty Performance Street Sprung Clutch Kit is engineered for compatible Subaru WRX and turbocharged Subaru applications requiring greater torque capacity than the original clutch while retaining street-oriented drivability. It combines ACT's Heavy Duty pressure plate with a Performance Street sprung organic disc and Prolite flywheel in a 240mm upgrade configuration.

The Heavy Duty pressure plate uses ACT's diaphragm design to increase clamp load, reduce deflection, and support extended clutch life. Its four-stage heat-treated diaphragm and precision pressure-plate cover construction improve rigidity and consistency. The Performance Street disc uses premium organic friction material with high copper content for heat transfer, while the steel-backed lining adds strength and durability. Reduced marcel helps provide quicker shift action while maintaining smoother engagement than a ceramic race disc.

The SB12-HDSS provides a 449 lb-ft torque capacity at the crank, representing a 46% increase over OE capacity. The kit is a 240mm upgrade and uses the ACT Prolite flywheel configuration. It is intended for compatible manual-transmission AWD Subaru applications and excludes WRX STI models. Exact year, engine, transmission, and clutch configuration should be confirmed before installation.
