ACT 04-20 WRX STI Mod Twin HD Race Kit Sprung Mono-Drive Hub Torque Cap 895ft/lbs Not For Street Use

$2,104.00
$2,598.00
$2,104.00
Shipping calculated at checkout.

In Stock: 2

Orders by 1pm PST ship same business day

Free Shipping w/3-4 Day Delivery

Authorized Dealer

Fitment Guarantee

30-Day Hassle Free Returns
contact us about this item

Product Specification:

SKU:ACTT1R-S05

MPN: T1R-S05

UPC: 842385025304

Weight: 32.0 lb

Inventory: 2

Type: Clutch Kits - Multi

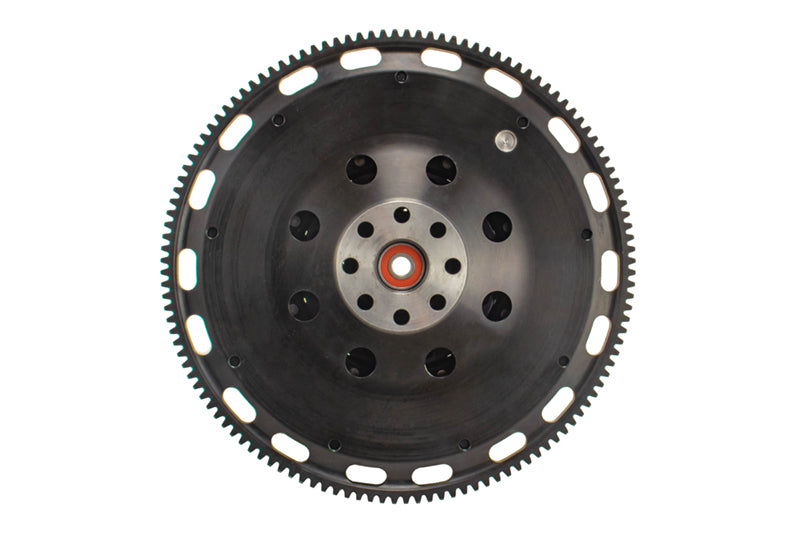

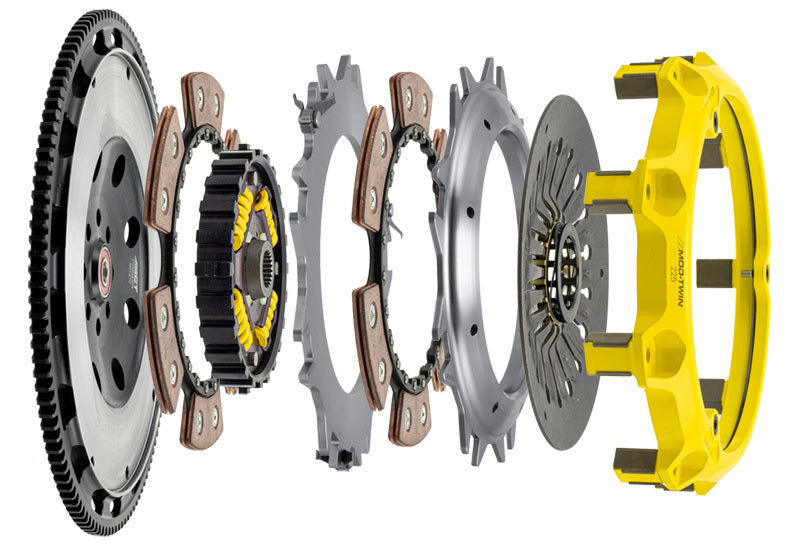

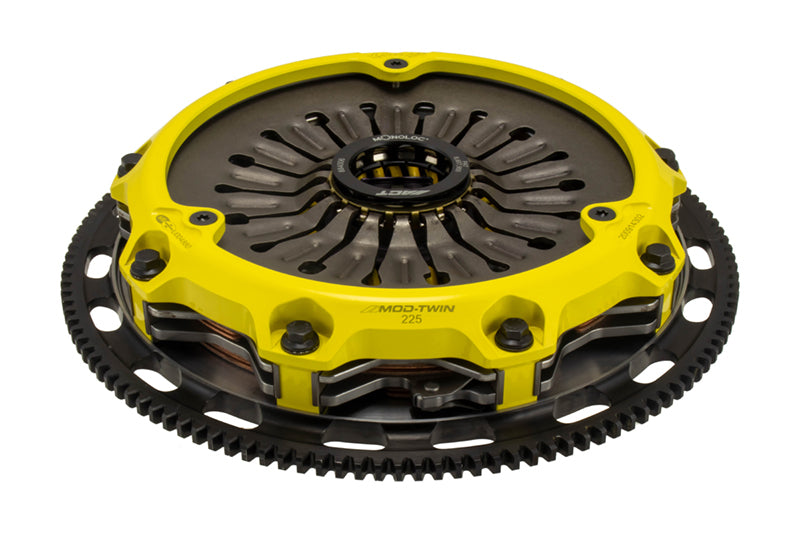

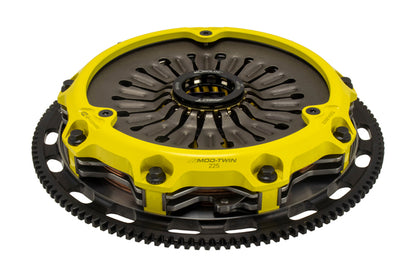

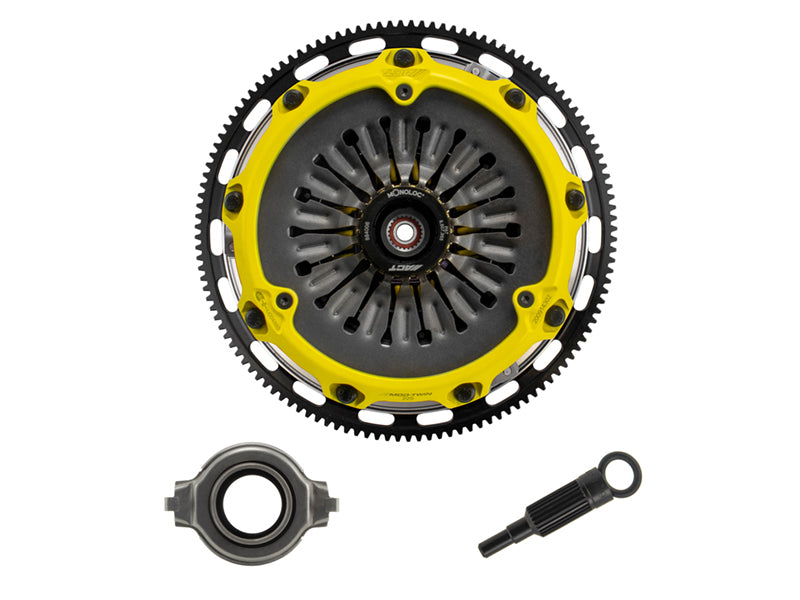

T1R-S05 Mod-Twin 225 HD Sprung Race Kit performs aggressive launches and smoother shifting in high powered AWD’s by combining twice the ceramic friction surfaces with an ultra-durable Mono-Drive sprung hub assembly in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent light pedal feel. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
Warranty
Installation Instructions


This Part Fits:

Year Make Model Submodel
2004-2014 Subaru Impreza WRX STI
2007,2011-2014 Subaru Impreza WRX STI Limited
2010 Subaru Impreza WRX STI Special Edition
2015-2021 Subaru WRX STI Base
2015 Subaru WRX STI Launch Edition
2015-2021 Subaru WRX STI Limited
2019 Subaru WRX STI S209
2016 Subaru WRX STI Series.HyperBlue
2018 Subaru WRX STI Type RA
