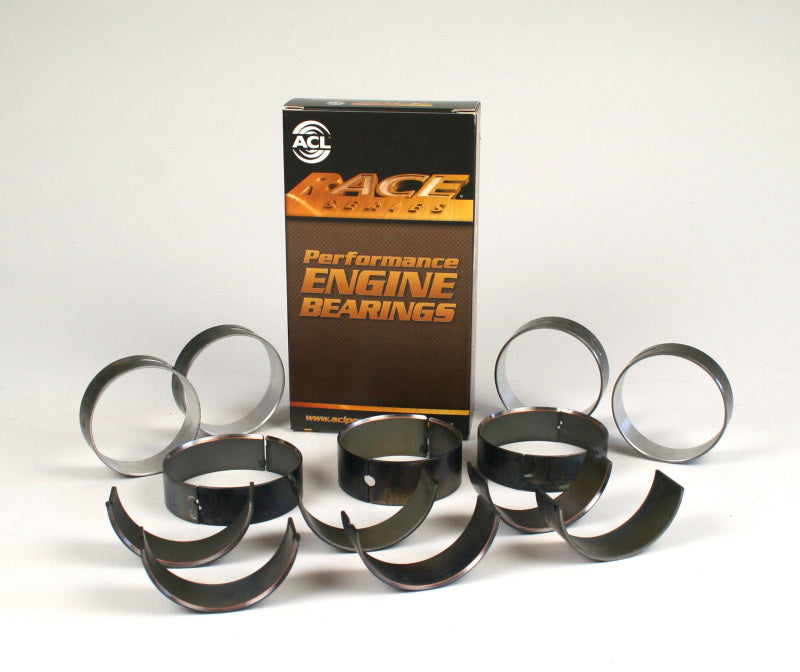

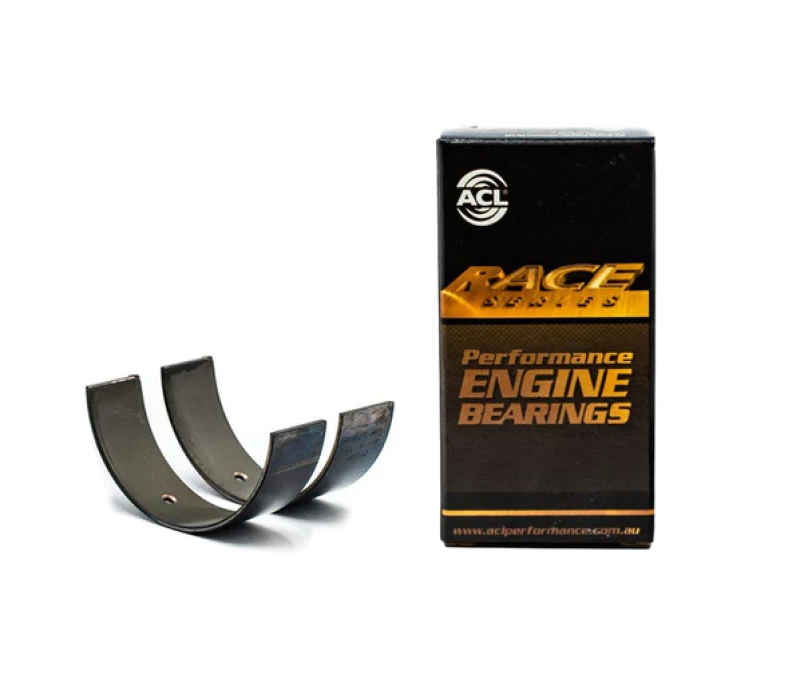

ACL 7M5532H-STD Race Series Main Bearing Set for VW Audi VR6 R32 R36 2.8-3.6L

Vehicle Fitment

1991-1995 Volkswagen Corrado VR6 2.8L / 2.9L
1991-1997 Volkswagen Passat VR6 2.8L
1992-1999 Volkswagen Golf VR6 2.8L
1993-1999 Volkswagen Jetta VR6 2.8L
1999-2005 Volkswagen Golf VR6 2.8L 24V
1999-2005 Volkswagen Jetta VR6 2.8L 24V
2002-2004 Volkswagen Golf R32 3.2L
2004 Volkswagen R32 3.2L
2006-2009 Volkswagen Passat 3.6L VR6
2008-2009 Volkswagen Passat R36 3.6L
2008-2010 Volkswagen Touareg 3.6L VR6
2003-2010 Audi TT 3.2L VR6
2006-2009 Audi A3 3.2L VR6 Quattro

Fitment Notes

• Fits VW/Audi VR6 12V engines: 2.8L (AAA) and 2.9L (ABV)
• Fits VW/Audi VR6 24V engines: 2.8L (AQP, AUE, AES, AMV, AMY)
• Fits VW/Audi R32 engines: 3.2L (BDB, BHE, BHK, BMJ, BPF, BUB, AXJ, BFH)
• Fits VW/Audi R36 engines: 3.6L (AXZ, BLV, BWS)
• Standard size (STD) for standard crankshaft journals
• Includes upper and lower bearing halves for all main journals
• Verify crankshaft journal dimensions before installation
• Professional installation by experienced engine builder recommended

Features

• ACL Race Series (H-Series) performance main bearings
• Tri-metal construction with high-strength steel backing
• Copper-lead alloy bearing surface for extreme load capacity
• Anti-friction coating extends service life under racing conditions
• Improved radial contact pressure locks bearing into housing
• Enhanced thermal transfer for effective heat dissipation
• Optimized oil grooves for superior lubrication distribution
• Designed for high RPM and extreme operating conditions
• Precision manufactured to tight tolerances

Specifications

• Brand: ACL
• Part Number: 7M5532H-STD
• EAN: 9315726443781
• Series: Race Series (H-Series)
• Type: Main Bearing Set
• Bearing Size: Standard (STD)
• Bearing Halves: Upper and Lower
• Bearing Material: F780 Tri-Metal
• Max Overall Length: 17mm (0.669")
• Max Shaft Size: 59.978mm (2.3613")
• Min Shaft Size: 59.958mm (2.3605")
• Max Tunnel Size: 65.01mm (2.5594")
• Min Tunnel Size: 65.00mm (2.5591")
• Max Wall at Crown: 2.501mm (0.0985")
• Oil Clearance Range: 0.044-0.066mm (0.0017-0.0026")
• Sold As: Complete Set

Included Components

• Complete main bearing set with upper and lower halves for all journals

Product Description

The ACL 7M5532H-STD Race Series Main Bearing Set delivers motorsport-grade reliability for Volkswagen and Audi VR6, R32, and R36 engines ranging from 2.8L to 3.6L displacement. Developed for engines operating under extreme conditions, these tri-metal performance bearings combine a high-strength steel backing with a copper-lead alloy bearing surface and anti-friction coating to withstand the demands of high RPM operation, forced induction, and racing applications. The unique combination of ACL's advanced metallurgy, precision engineering, and optimized design provides the endurance and load-carrying capability that high-performance engines require. Improved radial contact pressure ensures the bearings lock securely into the housing while enhanced thermal transfer characteristics promote effective heat dissipation during sustained high-load operation. Standard size for use with standard dimension crankshaft journals. Ideal for performance builds, turbo applications, and motorsport use where factory bearings cannot meet demands. Professional installation by an experienced engine builder is strongly recommended.
