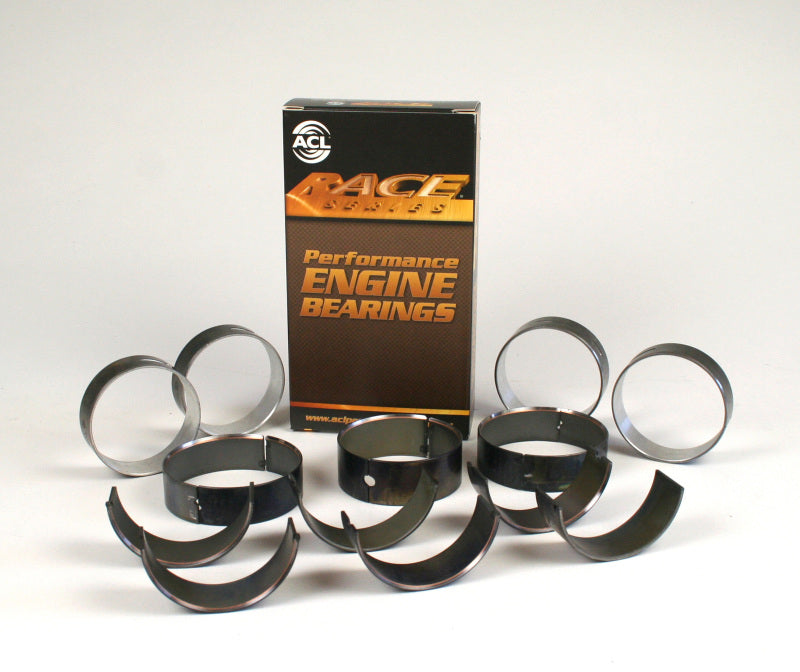

ACL 4B1946HXD-STD Race Series Rod Bearing for 90-01 Acura Integra B18A1/B18B1

Vehicle Fitment

• 1990-1993 Acura Integra RS/LS/GS (B18A1, 1834cc SOHC Non-VTEC)
• 1994-2001 Acura Integra RS/LS/GS (B18B1, 1834cc SOHC Non-VTEC)

Fitment Notes

• Standard journal size only - confirm crankshaft has not been machined undersize before ordering.
• HXD suffix requires a connecting rod cap with dowel hole location; confirm rod compatibility.
• Does not cover VTEC variants (B18C1/B18C5) - those use a separate ACL part number.

Features

• Race Series tri-metal, copper-lead construction with high-performance overlay
• Dowel hole in lower shell locks bearing into the rod cap, preventing rotation
• 0.001" (0.025mm) extra oil clearance for higher-RPM performance builds
• Increased crush for improved bearing retention under load
• Full 180° grooved uppers support consistent oil film formation
• Engineered specifically for the B17A1/B18A1/B18B1/B18B2 engine family

Specifications

• Bearing type: Rod bearing set
• Size: Standard (STD)
• Configuration: HXD - 0.001" extra clearance with dowel hole
• Set quantity: 4 bearings (one set per engine)

Included Components

• 1x ACL 4B1946HXD-STD Rod Bearing Set (4 bearings)

Product Description

The ACL 4B1946HXD-STD is a Race Series rod bearing set built for the B18A1/B18B1 non-VTEC engine used across the 1990-2001 Acura Integra. The dowel-hole design locks each bearing into the rod cap for secure, rotation-free operation, while the added 0.001" clearance and tri-metal copper-lead construction improve oil film stability and heat dissipation for high-RPM or forced-induction builds. It's a direct-fit upgrade for standard-size rebuilds where added durability over stock bearings is the priority.
