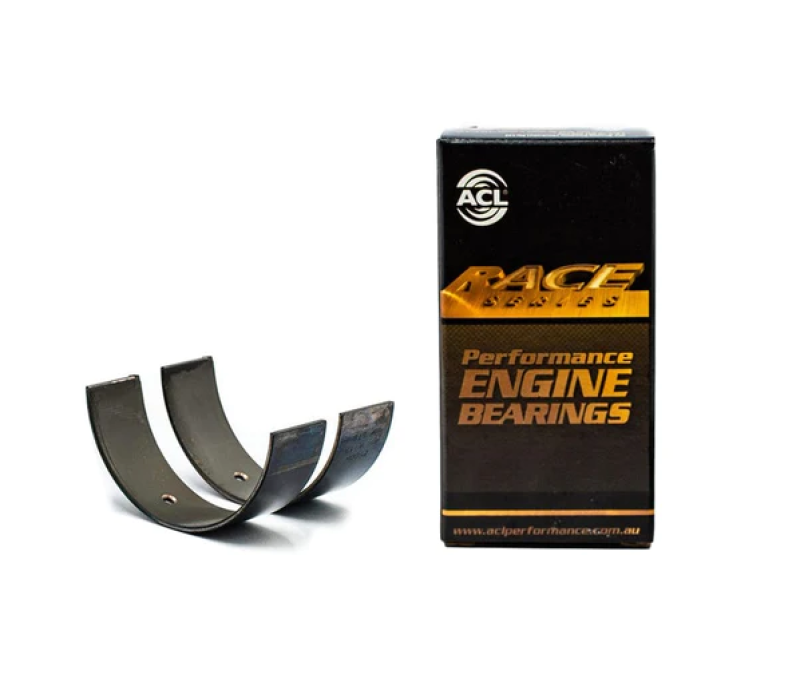

ACL 8B1442H-STD Race H-Series Rod Bearing Set for Ford 4.6/5.4L V8

Vehicle Fitment

• Ford 4.6L SOHC/DOHC and 5.4L SOHC/DOHC V8 (including 5.4L Supercharged Aluminum Block), plus 5.0L Coyote - Mustang, F-150, Crown Victoria, Expedition, and other Ford modular V8 applications

Fitment Notes

• For use with OE crankshafts; a separate ACL "N" suffix part (8B1442HN) is available for aftermarket crankshafts
• Standard size only; use only with unmachined, factory-spec rod journals

Features

• Race Series construction engineered to withstand high RPM conditions and stress loads
• High-strength overlay plate with reduced thickness for improved fatigue resistance
• Hardened steel backs improve bearing lining support and housing retention
• Increased crush specification for improved bearing retention during high-performance driving
• Flash plating eliminated from bearing backs for better heat dissipation and housing grip
• Increased eccentricity compensates for bore distortion at high RPM and supports oil film formation

Specifications

• Size: Standard (STD)
• Bearing Half Type: Identical Halves
• Bearing Material: F781 Tri-Metal
• Max Overall Length: 20.95 mm / 0.825 in
• Max Shaft Size: 53.002 mm / 2.087 in

Included Components

• 1x Complete Rod Bearing Set

Product Description

The ACL 8B1442H-STD Race Series rod bearing set is engineered for Ford's 4.6L and 5.4L modular V8 engines, including the 5.4L Supercharged variant and 5.0L Coyote, offering better fatigue resistance and retention than standard OEM bearings under high RPM and high-load conditions. The tri-metal F781 construction combines a high-strength overlay plate with hardened steel backs for durability in performance builds.

This standard-size set is designed for use with OE crankshafts running unmachined, factory-spec rod journals, making it a solid fit for Mustang, F-150, and other Ford modular V8 platforms undergoing a rebuild or performance upgrade. Improved heat transfer, oil distribution, and bearing crush help the set hold up reliably under sustained high-performance use.
