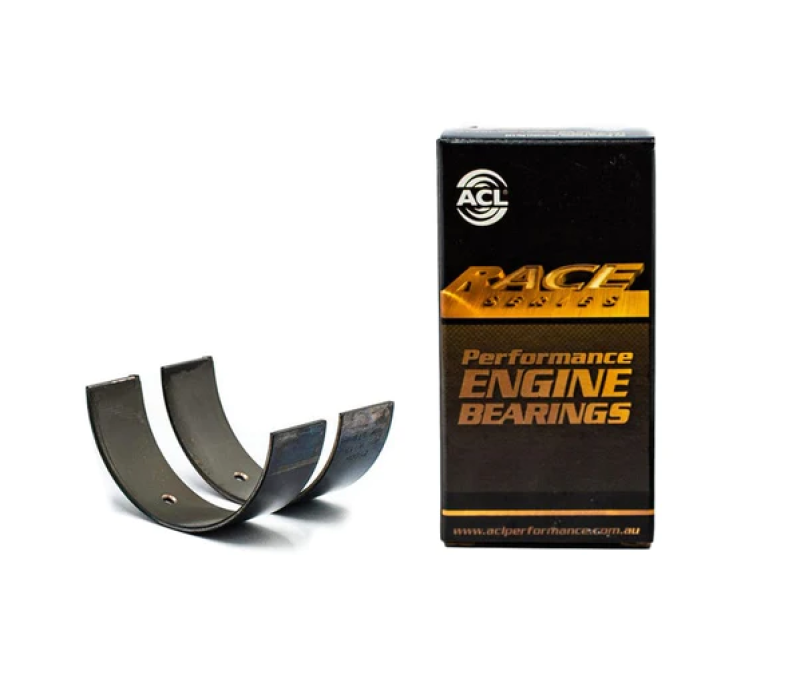

ACL 4B1925H-STD Race Rod Bearing Set Standard Honda B18C1 B18C5 Integra GSR ITR
- Regular price
-
$73.95 - Regular price
-
- Sale price
-
$73.95
In Stock: 0
Orders by 1pm PST ship same business dayFree Shipping w/2-4 Day Delivery
Authorized Dealer
Fitment Guarantee
90-Day Free Returns
Couldn't load pickup availability
Product Specification:
SKU:ACL4B1925H-STD
MPN: 4B1925H-STD
UPC: 9315726280294
Weight: 0.29 lb
Type: Bearings
Vehicle Fitment
- 1994-2001 Acura Integra GS-R DC2/DB8 (B18C1, 1.8L DOHC 16v VTEC, 170 hp - USDM)
- 1997-2001 Acura Integra Type R DC2 (B18C5, 1.8L DOHC 16v VTEC, 195 hp - USDM/CDM)
- 1995-2001 Honda Integra Type R DC2/DB8 (JDM B18C Spec R / B18C3, 1.8L DOHC 16v VTEC, 200 hp)
- 1994-2001 Honda Integra VTi-R (B18C2, 1.8L DOHC 16v VTEC - Australia/New Zealand)
- 1999-2001 Honda Integra Type R (B18C7, 1.8L DOHC 16v VTEC - Australia)
Fitment Notes
- Standard (STD) crankshaft rod journal diameter - for use with stock or unworn crankpins at factory diameter only. For reground crankshafts, use 4B1925H-.025 (+0.025mm) or 4B1925H-.25 (+0.25mm) as appropriate.
- An HX extra-clearance variant (4B1925HX-STD) is also available for builders targeting approximately 0.025mm (0.001") additional running clearance at standard journal diameter without crankshaft grinding.
- Always measure crankshaft rod journal diameter with a micrometer before selecting bearing size. Confirm actual clearance with Plastigage or a dial bore gauge after assembly.
- Sold as a complete set of 8 bearing shells - sufficient for one full 4-cylinder engine build.
Features
- Tri-metal construction: copper-lead alloy lining bonded over a hardened steel backing, with a high-strength overlay plate - engineered for the high-RPM, VTEC demands of built B18C applications in both naturally aspirated and forced-induction configurations.
- Hardened steel backing on all rod bearings improves structural support of the bearing lining and maintains crush under high sustained loads and temperatures.
- High-strength overlay plate with reduced thickness provides improved fatigue resistance compared to OEM-spec bearings - critical in boosted or high-revving B18C builds operating above factory power levels.
- Increased bearing crush and tighter wall tolerances ensure consistent, secure seating in the connecting rod housing bore, reducing the risk of bearing spin.
- Enlarged ID chamfers on bearing edges accommodate the larger fillet radii found on performance and aftermarket B18C crankshafts.
- 3/4-groove design optimizes oil supply to the rod journal and maximizes load-carrying surface area across the bearing face.
- Elimination of flash plating on bearing backs improves heat transfer and maximizes grip between the bearing shell and the rod housing bore.
- Increased eccentricity compensates for bore distortion at high RPM and assists in the formation of a stable hydrodynamic oil film under load.
Specifications
- Part Number: 4B1925H-STD
- Product Line: ACL Race Series
- Application: Connecting Rod Bearings
- Engine Compatibility: Honda/Acura B18C1, B18C2, B18C3 (JDM), B18C5, B18C7 - 1.8L DOHC 16v VTEC Inline-4 (1797cc)
- Crankshaft Size: Standard (STD - Unground)
- Shaft (Crankpin) Diameter: 44.976-45.000mm (1.7707-1.7717 in)
- Tunnel (Housing Bore): 48.000-48.024mm (1.8898-1.8907 in)
- Maximum Wall Thickness at Crown: 1.502mm (0.0591 in)
- Maximum Overall Length: 17.5mm (0.689 in)
- Bearing Material: Tri-Metal Copper-Lead Alloy / Hardened Steel Backing
- Quantity: Set of 8 Shells (complete engine set)
Included Components
- 8x Race Series Connecting Rod Bearing Shells - Standard Size
Product Description
The ACL Race Series 4B1925H-STD connecting rod bearing set is the standard-size performance replacement for the Honda/Acura B18C VTEC inline-4 engine family - the 1.8L DOHC 16v VTEC engine powering the Acura Integra GS-R (B18C1), Acura Integra Type R (B18C5), and the legendary Honda Integra Type R DC2 (JDM B18C/B18C3), among other regional variants. Designed for use with stock-diameter, unground crankshaft rod journals, this is the standard selection for fresh engine builds using a serviceable factory crankshaft confirmed to be within standard dimensional tolerance.
The B18C family - particularly the B18C5 and JDM Type R spec - is one of the most frequently rebuilt high-performance Honda four-cylinder engines, known for its high specific output, free-revving character, and wide aftermarket support. ACL Race Series bearings deliver meaningfully superior fatigue resistance, bearing retention, and oil film stability over OEM Honda shells, making them a standard specification for serious B18C rebuilds at any power level. For builders targeting increased running clearance at standard journal size, the HX variant (4B1925HX-STD) is available separately. Always confirm clearances at assembly. Sold as a complete set of 8 shells for one engine.
