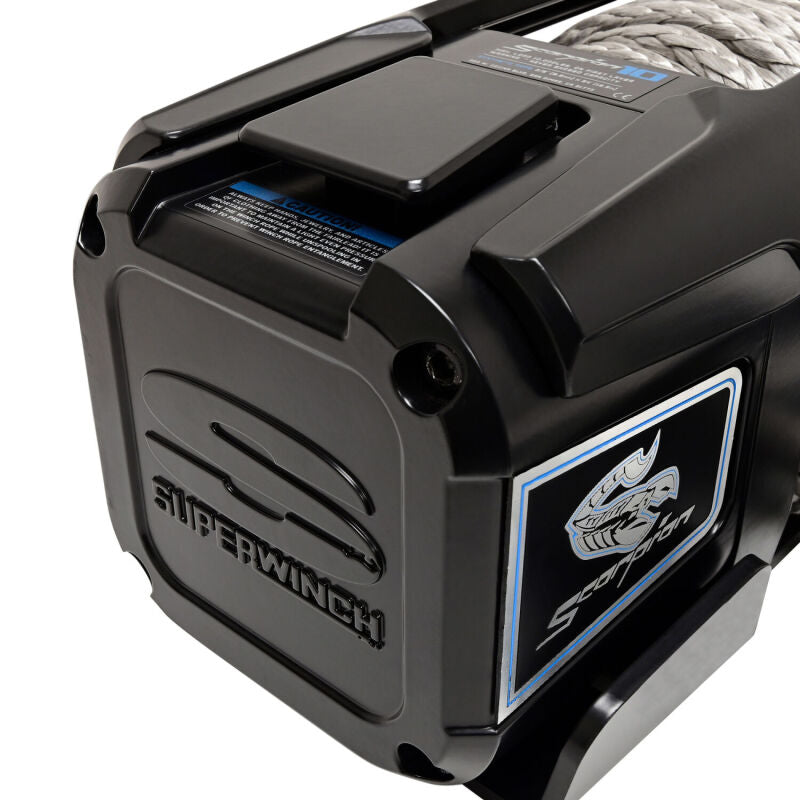

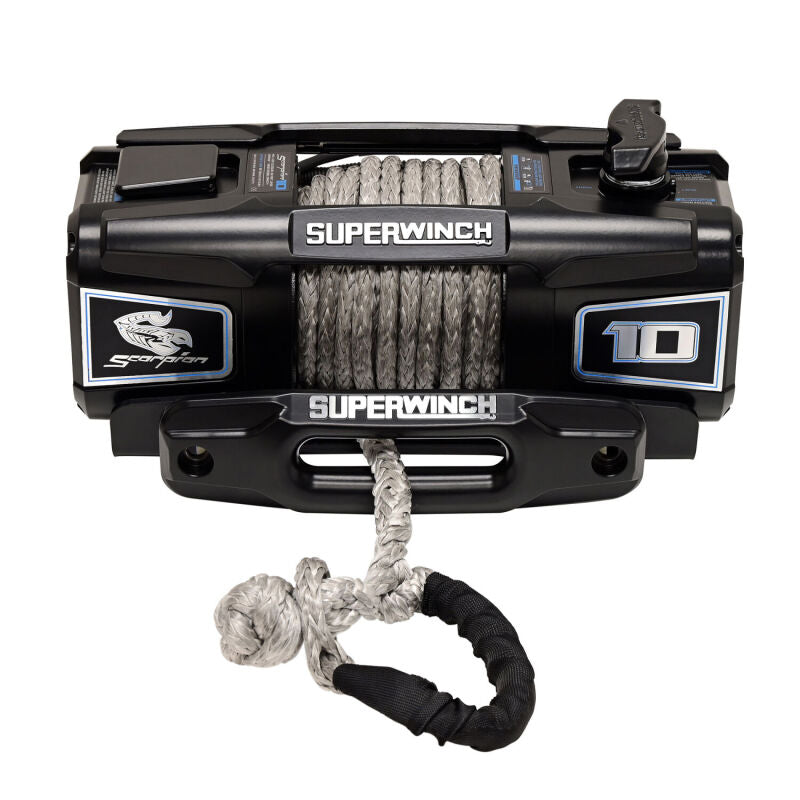

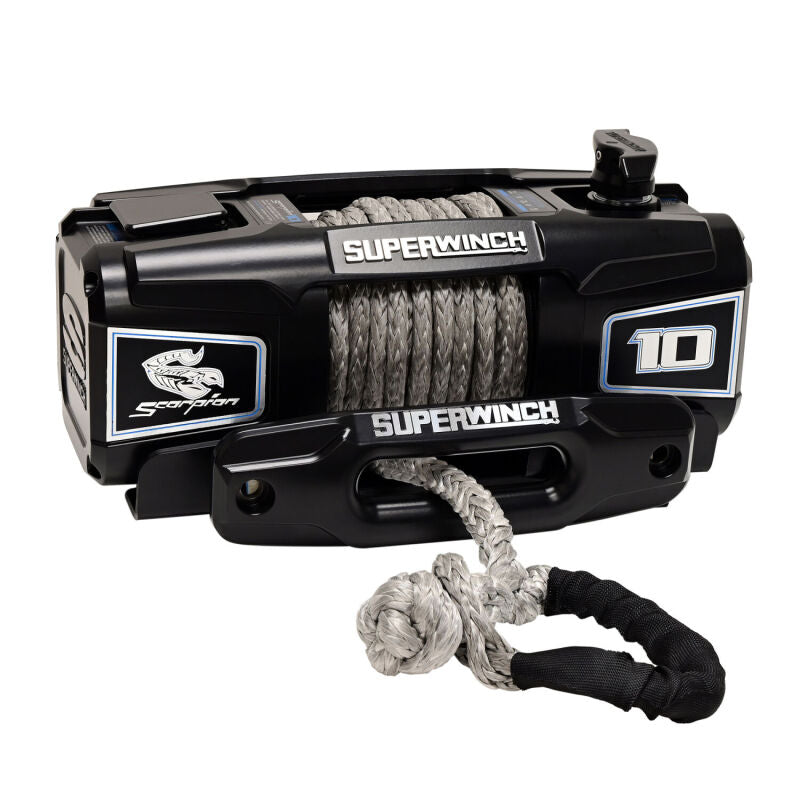

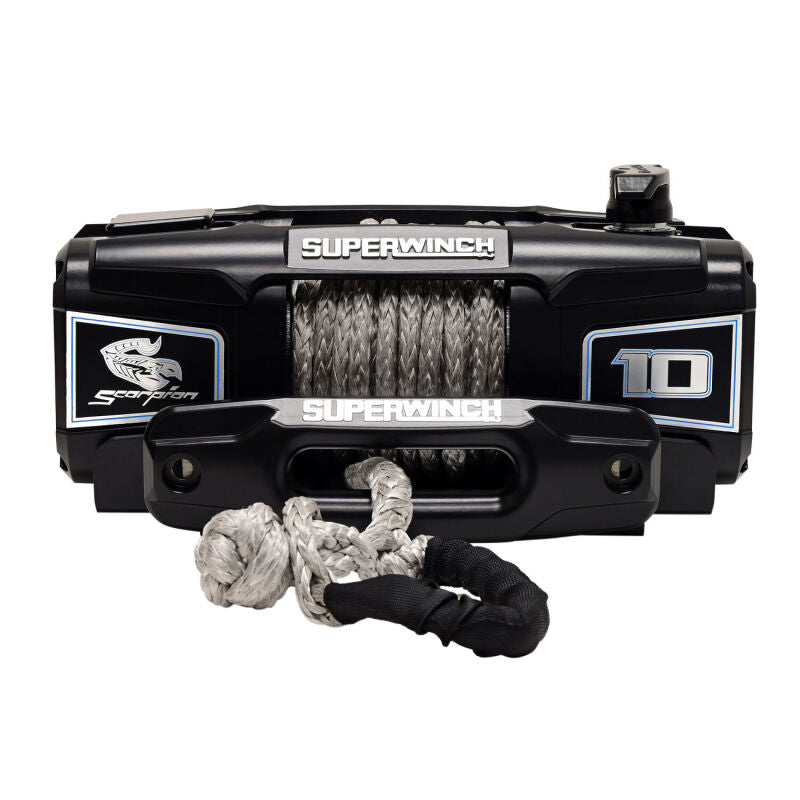

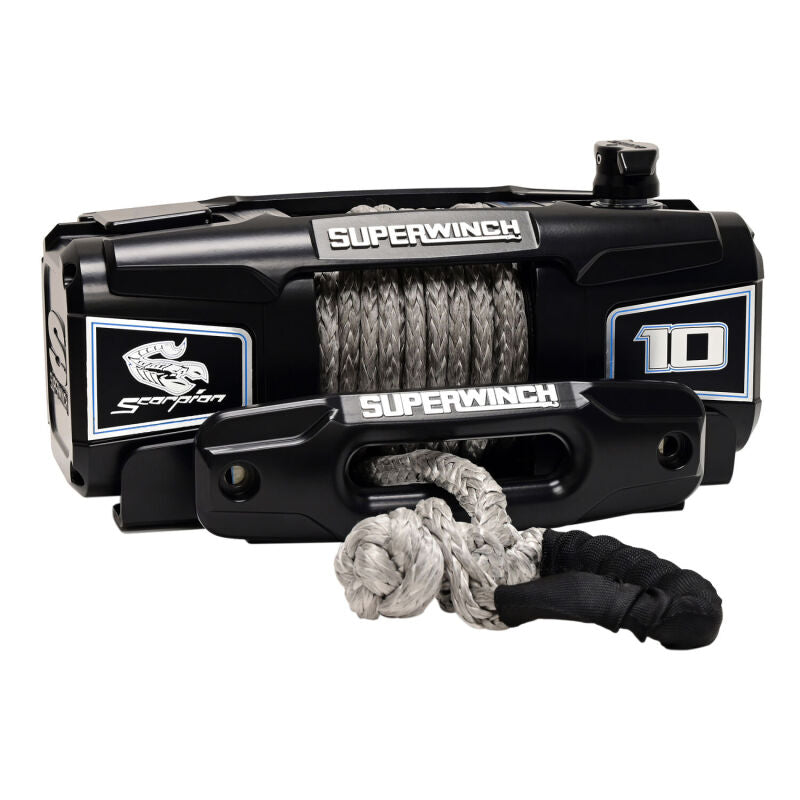

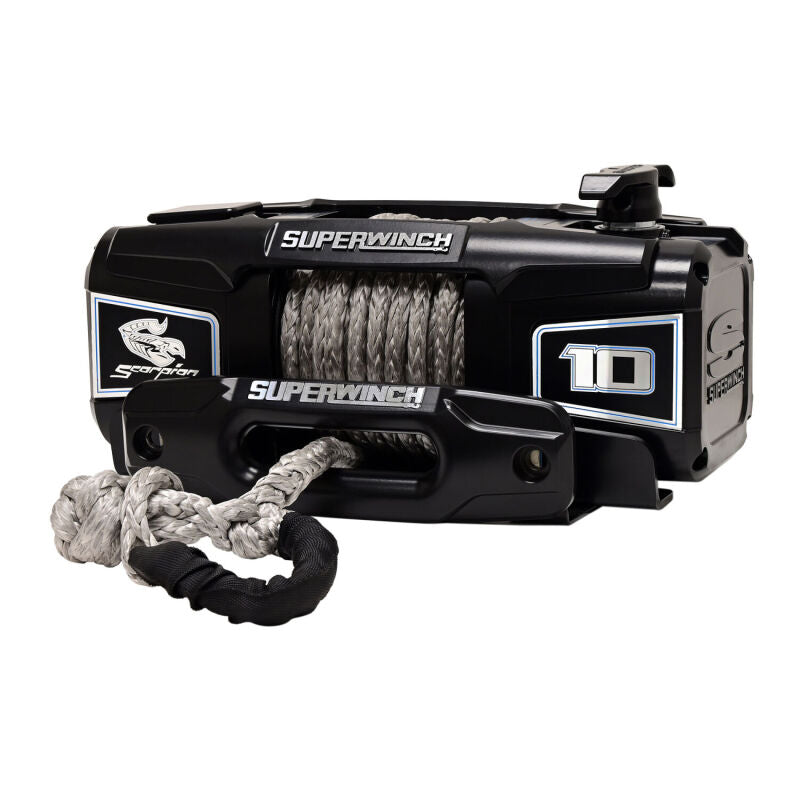

Superwinch 1155401 Scorpion 10000SR 10000lb 12V DC Winch Synthetic Rope IP68

Vehicle Fitment

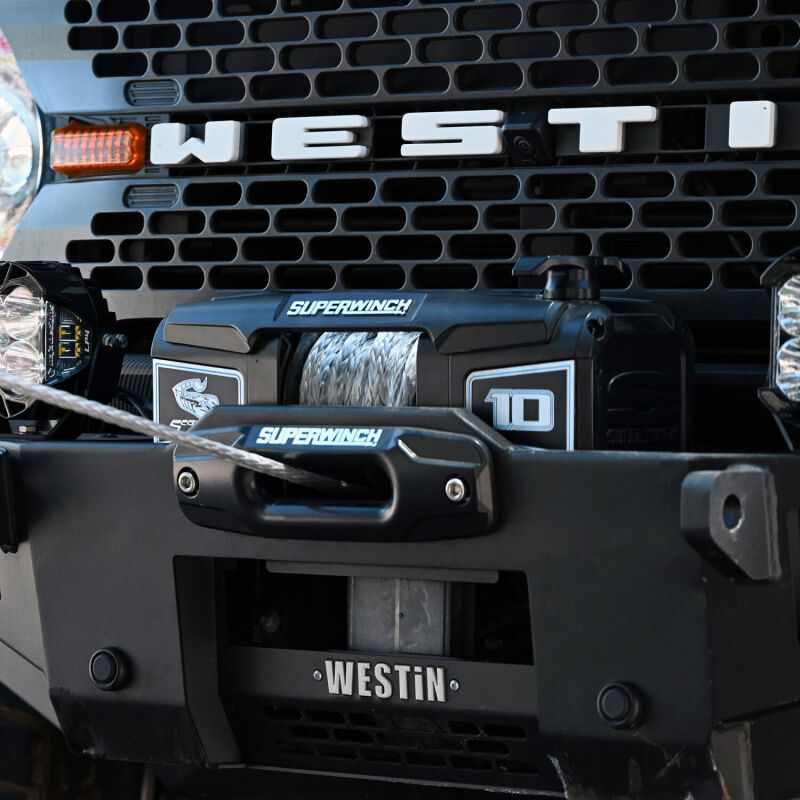

• Universal fit - compatible with trucks, Jeeps, SUVs, and off-road vehicles with a suitable bumper/winch mount rated for 10,000 lbs. pulling capacity

Fitment Notes

• Universal winch - requires a compatible winch mount or bumper rated for 10,000 lbs. capacity (sold separately)
• Clockable 4-stage gearbox allows installation in four orientations for flexible mounting configurations
• Requires a 12V DC power source; engineered for single-battery operation

Features

• 10,000 lb. rated line pull with Overload Interrupter (OLI) that automatically shuts off at capacity to protect vehicle and rope
• 1.8 HP high-torque permanent magnet motor with instant dynamic braking for precise load control
• Clockable 4-stage planetary gearbox with dual-range gearing - repositionable in four orientations for flexible mounting
• Patented drum light illuminates the rope, spool, and fairlead area for safe low-light and night-time recoveries
• IP68 waterproof and dustproof rating - drum, gearbox, and contactor fully sealed
• Low-amp draw design optimized for reliable operation from a single 12V battery
• Ergonomic pull-and-turn free-spool clutch for quick, hassle-free rope deployment
• Approximately 50 lbs. - 20-25 lbs. lighter than most comparable 10,000 lb. winches

Specifications

• Rated Line Pull: 10,000 lbs.
• Motor: 1.8 HP permanent magnet, 12V DC
• Gearbox: 4-stage planetary, clockable, dual-range
• Rope: 3/8 in. x 54 ft. UV-protected synthetic with integrated soft shackle
• IP Rating: IP68 waterproof and dustproof
• Brake System: Automatic load-holding, dynamic
• Clutch: Pull-and-turn free-spool
• Control Box: Internal

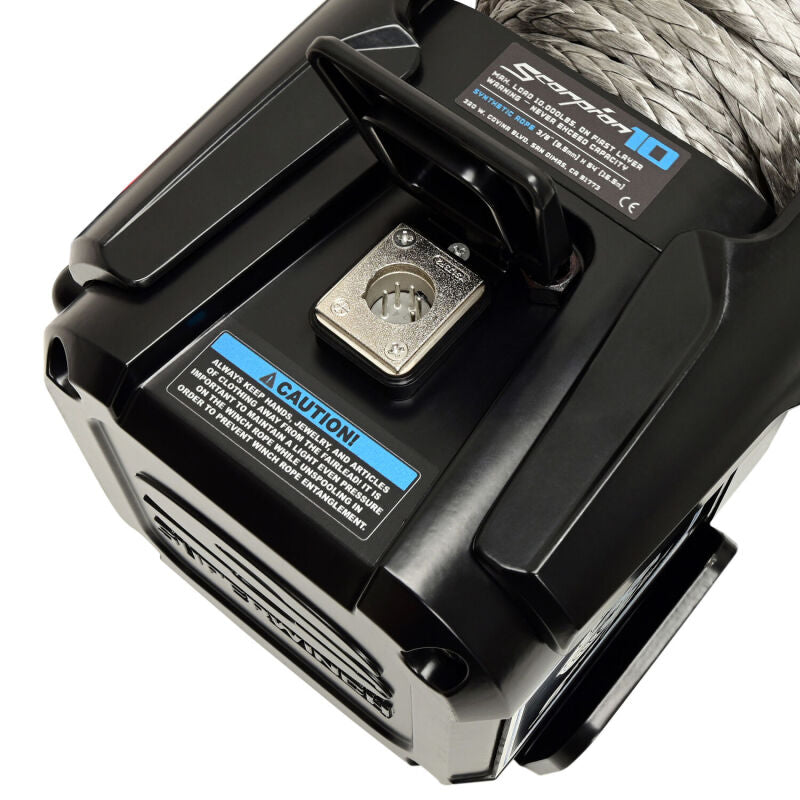

• Remote: Wired (with rechargeable flashlight) and wireless (MOLLE clip)
• Dimensions: 11 in. W x 13 in. H x 19 in. D
• Weight: Approximately 50 lbs.
• Finish: Black powder coat
• Warranty: Limited Lifetime Mechanical / 7-Year Limited Electrical

Included Components

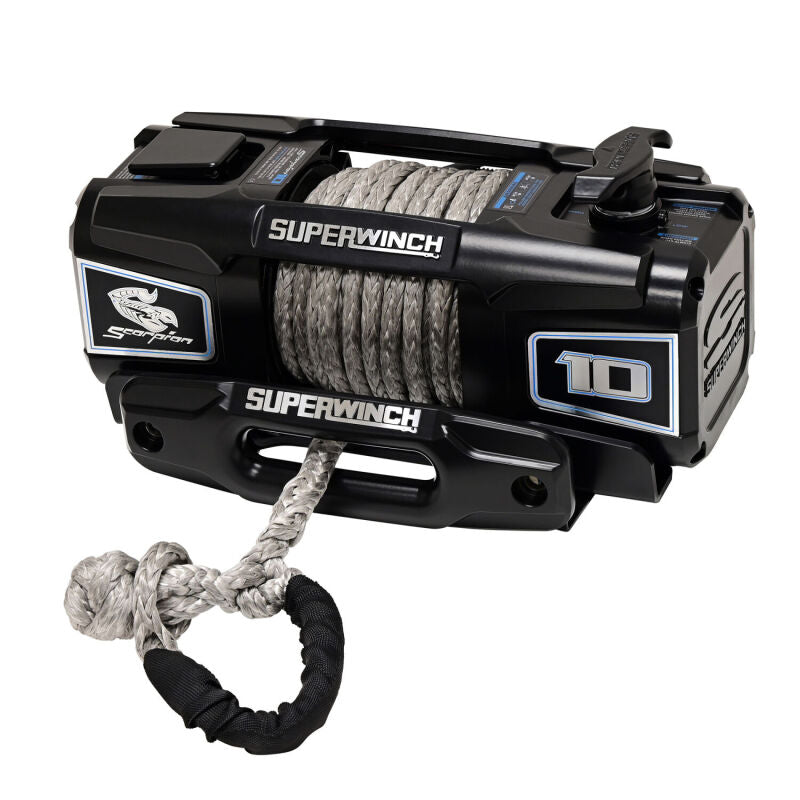

• 1x Scorpion 10000SR winch assembly
• 1x 3/8 in. x 54 ft. UV-protected synthetic winch rope with integrated soft shackle
• 1x Wired remote with rechargeable flashlight
• 1x Wireless remote with MOLLE loop clip
• 1x Mounting hardware kit

Product Description

The Superwinch Scorpion 10000SR (1155401) is a compact, lightweight 10,000 lb. electric recovery winch engineered for trucks, Jeeps, and off-road builds where space and weight are critical. Its 1.8 HP permanent magnet motor paired with a dual-range, 4-stage planetary gearbox delivers powerful, controlled pulling with low amp draw - optimized for operation from a single 12V battery. The clockable gearbox can be repositioned in four orientations, making it adaptable to a wide range of mounting configurations.

Safety and visibility are built in from the ground up: the patented drum light illuminates the spool and fairlead for confident low-light recoveries, the Overload Interrupter (OLI) automatically cuts power at the rated capacity, and the IP68-rated sealed housing ensures reliable operation in water, mud, and dust. The 3/8 in. synthetic rope with integrated soft shackle eliminates all metal-to-metal contact hazards. Both wired and wireless remotes are included, and at approximately 50 lbs., the Scorpion 10000SR is significantly lighter than most winches of comparable capacity. Backed by a Limited Lifetime Mechanical / 7-Year Limited Electrical warranty.
