ARB ARW100SA Winch 10000 lb Synthetic Rope 92ft Integrated Control - Universal

Vehicle Fitment

• Universal - Compatible with any winch-ready bumper or mounting plate on 4WD trucks, SUVs, and off-road vehicles requiring 10,000 lb capacity; 12V electrical systems only

Fitment Notes

• Universal fitment - may require a winch-specific mounting adapter or bumper winch plate; confirm your bumper's winch mounting pattern before ordering
• Designed for 12V electrical systems only - not compatible with 24V systems
• The 16-position clockable clutch handle allows orientation adjustment for optimal accessibility in any bumper configuration
• Remote-mounted control plug supports hidden or low-profile winch installations while retaining hardwired controller capability
• Includes a winch extension strap (17,600 lb) per Sexton Offroad listing

Features

• 10,000 lb (4,536 kg) rated line pull - engineered for a wide range of 4WD trucks and SUVs including heavily built rigs with accessories

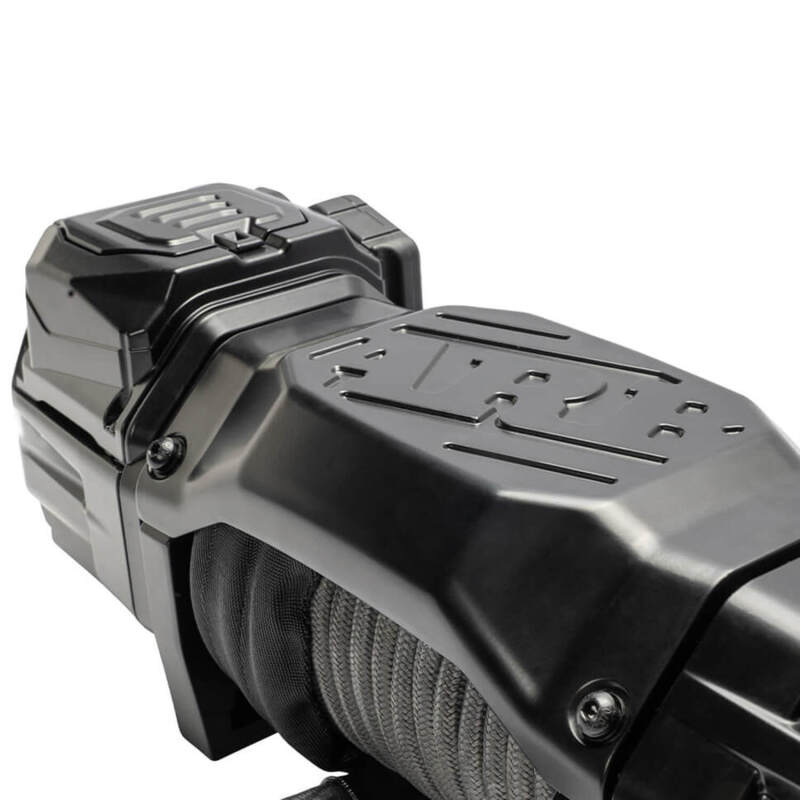

• Integrated motor control (no external control box) - custom Albright DC 500A contactor mounts directly within the winch body, delivering up to 8% more pulling power through reduced power loss, while eliminating the bulky external relay box that conflicts with modern bumper designs and vehicle sensors
• 92 ft (10mm x 28m) grey synthetic winch rope with protective sleeve - lighter and safer than steel cable; does not store dangerous energy when broken, floats in water, and is easy to handle with gloves
• Forged 6061 aluminum hawse fairlead - lightweight, corrosion-resistant, and compatible with synthetic rope
• 4-stage hardened steel gearbox - 2-stage planetary + 2-stage spur configuration at 171:1 ratio distributes load across more contact points for maximum toughness and fast 60 ft/min line speed under load
• Gearbox-mounted brake - 100% load-holding proportional friction brake physically separated from the drum, protecting the synthetic rope from heat during sustained pulls and allowing controlled powered unspooling under no load
• One-piece bridging plate - improves torsional rigidity of the winch body for reduced flex under heavy pulls

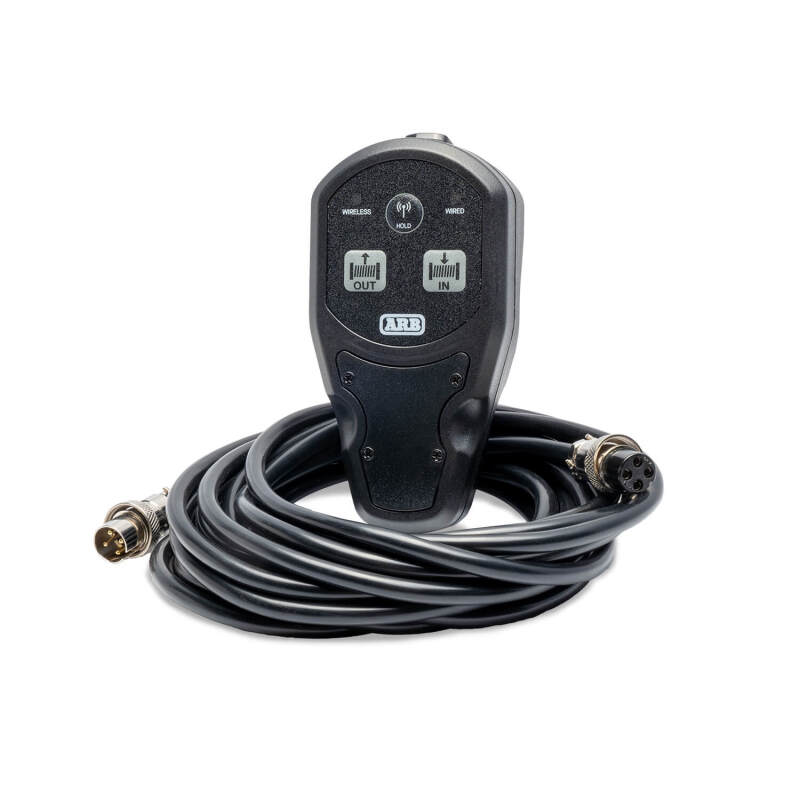

• Dual-connection remote - 2.4GHz wireless operation to 40m (130 ft) with sealed receiver circuitry to eliminate interference, plus 5m hardwired lead for direct control
• Remote-mounted control plug - enables hidden or flush-mount winch installations without sacrificing hardwired remote access
• 16-position clockable clutch handle - full 360° of clocking positions for optimal placement regardless of bumper orientation
• 500A power isolation switch with stainless lanyard and protective dust cover - safely disconnects winch from electrical system when not in use
• IP68-rated motor and gearbox - fully sealed against dust and water intrusion for confident use in river crossings and muddy trail conditions

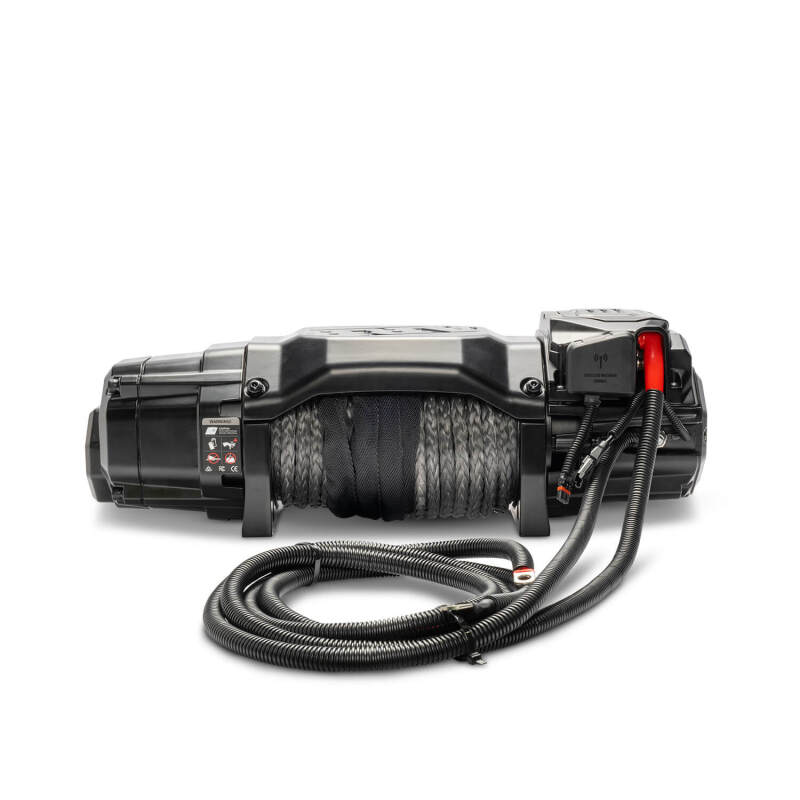

• Pre-wired connections - simplifies installation with flexible mounting options out of the box
• 5.3 HP tuned 12V series-wound motor - consistent line speed and pulling power with lower current draw to reduce heat and electrical system strain

Specifications

• Part Number: ARW100SA
• Brand: ARB
• Type: Electric Winch - Synthetic Rope
• Rated Line Pull: 10,000 lb (4,536 kg)
• Rope: 10mm x 28m (92 ft) - Grey Synthetic with Protective Sleeve
• Fairlead: Forged 6061 Aluminum Hawse Fairlead
• Motor: 5.3 HP, 12V Series-Wound
• Gearbox: 171:1 - 2-Stage Planetary + 2-Stage Spur, Hardened Steel
• Brake: Gearbox-Mounted, 100% Load-Holding Proportional Friction
• Contactor: Albright DC - 500A, Integrated (no external control box)
• Max Line Speed: 60 ft/min
• Wireless Remote: 2.4GHz - 40m (130 ft) range
• Hardwired Remote Lead: 5m
• Clutch: 16-Position Clockable Handle
• IP Rating: IP68 (Motor and Gearbox)
• Power Isolation Switch: 500A - Stainless Lanyard and Dust Cover
• Fitted Weight: 73.5 lb (33.3 kg)
• Voltage: 12V Only
• Warranty: Limited Lifetime (Mechanical) / 7-Year (Electrical)
• Fitment: Universal

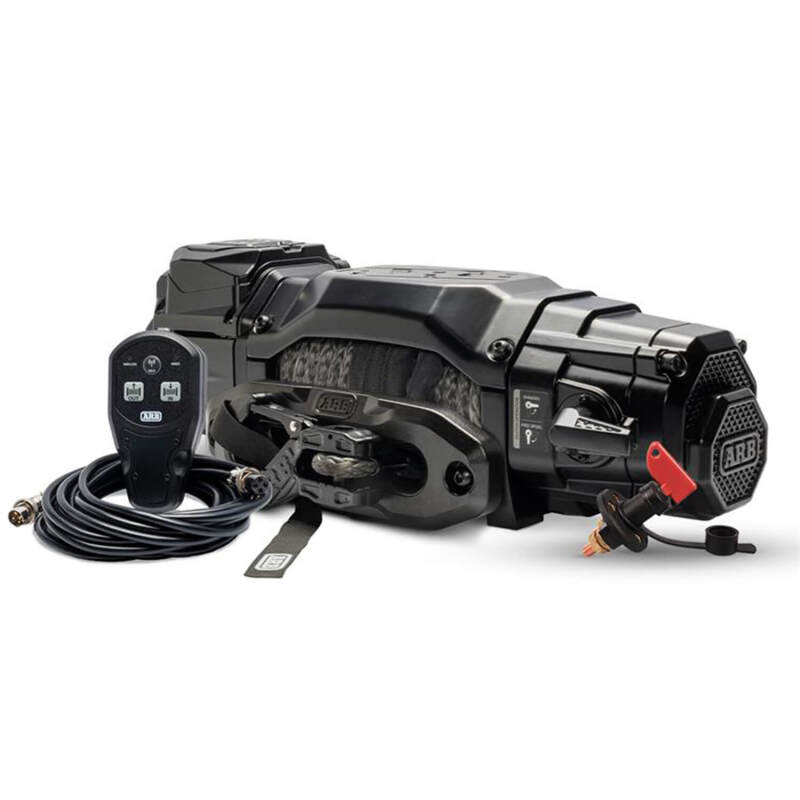

Included Components

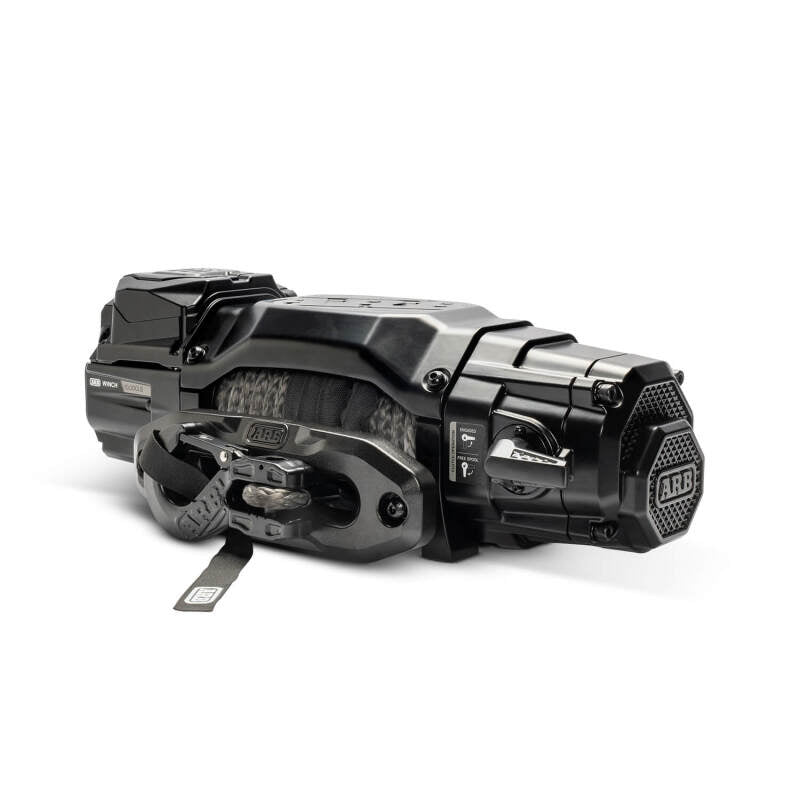

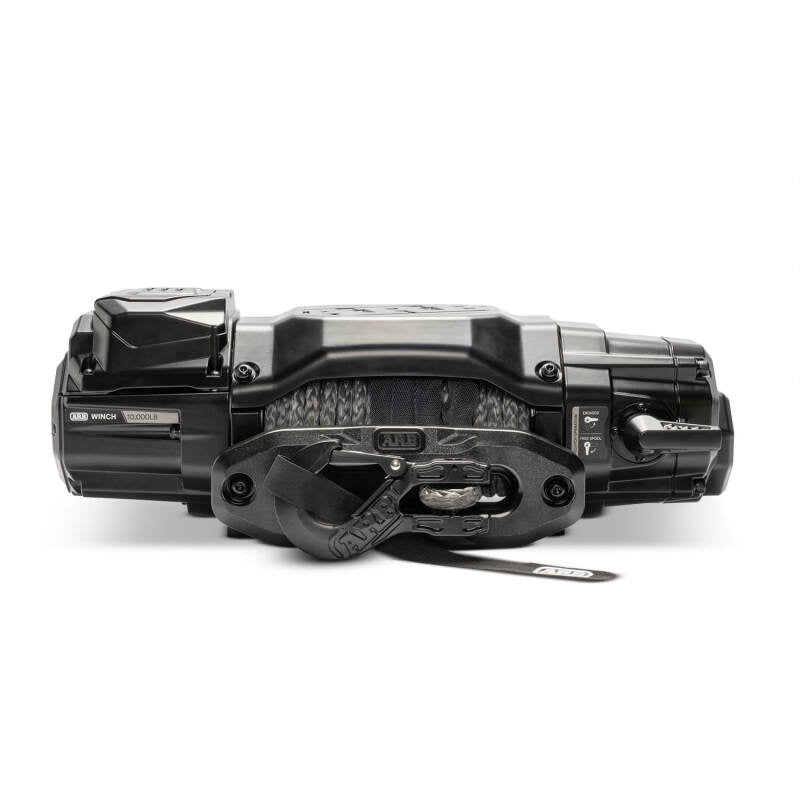

• ARB ARW100SA 10,000 lb winch with integrated motor control
• 10mm x 28m (92 ft) grey synthetic winch rope with protective sleeve
• Forged 6061 aluminum hawse fairlead
• Dual-connection wireless/hardwired remote controller
• 500A power isolation switch with stainless lanyard and dust cover
• Remote-mounted control plug
• Winch Extension Strap - 17,600 lb

Product Description

The ARB ARW100SA is ARB's 10,000 lb synthetic rope winch - a purpose-built recovery tool designed for the demands of modern 4WD builds. Its defining feature is an integrated motor control unit: a custom Albright DC 500A contactor is built directly into the winch body, eliminating the external relay box that has long complicated winch installations in tight, sensor-rich modern bumpers. The result is a cleaner wiring layout, faster installation, up to 8% more pulling power through reduced power loss, and a profile that works seamlessly with ARB and third-party winch-ready bumpers alike.

The 4-stage hardened steel gearbox operates at a 171:1 ratio using a 2-stage planetary and 2-stage spur arrangement, distributing load across more contact points for sustained performance under heavy pulls. The gearbox-mounted brake provides 100% load holding while keeping the friction mechanism physically separated from the drum - protecting the synthetic rope from heat during long pulls. The 5.3 HP 12V series-wound motor delivers a consistent 60 ft/min line speed under load with lower current draw than comparable winches. Control is handled via a 2.4GHz wireless remote (40m range) or a 5m hardwired lead, and the 16-position clockable clutch accommodates any bumper mounting orientation. IP68-rated motor and gearbox handle water crossings and trail mud without compromise. Backed by a limited lifetime mechanical warranty and 7-year electrical warranty.
