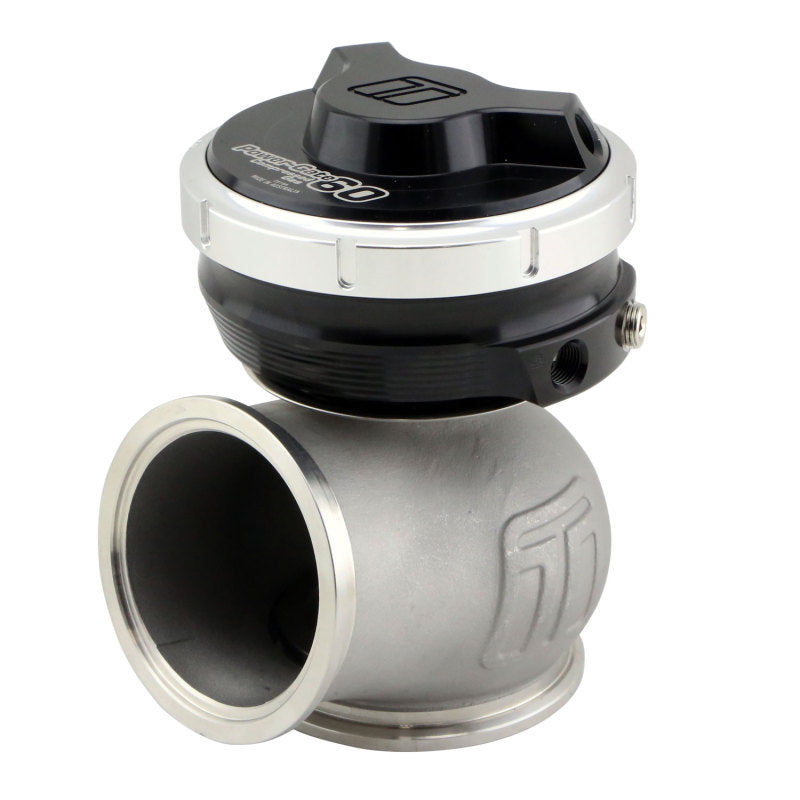

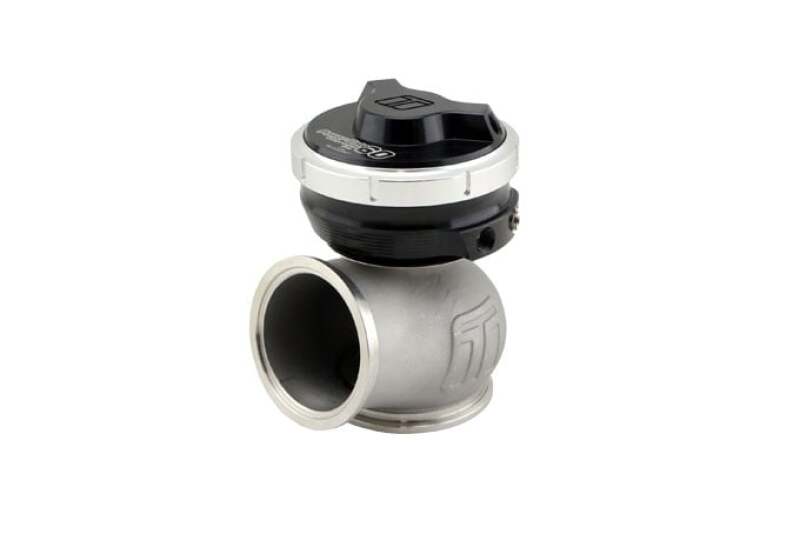

Turbosmart TS-0555-1202 GenV PowerGate60CG 60mm 5psi CO2 External Wastegate

Vehicle Fitment

• Universal Performance Application (Turbocharged Engines)

Features

• GenV PowerGate60CG compressed-gas external wastegate for advanced boost control
• Designed for CO2 or compressed air boost control strategies used in motorsport
• 60mm high-flow valve optimized for large turbocharger systems
• Inverted diaphragm design engineered to handle high pressure differentials
• CFD-optimized internal flow path for maximum exhaust bypass efficiency
• Rotatable actuator housing for flexible installation and vacuum routing
• Optional liquid-cooling ports for improved thermal management
• Nitronic 60 valve guide for superior durability and wear resistance
• Strap-style V-band clamps allow quick installation and servicing

Specifications

• Part Number: TS-0555-1202
• Product Series: Turbosmart GenV PowerGate60CG
• Wastegate Type: External compressed-gas wastegate
• Valve Diameter: 60mm
• Base Spring Pressure: Up to 5 PSI
• Reference Ports: 1/8" NPT
• Mounting Style: V-band inlet and outlet connections
• Body Material: High-temperature 347 stainless steel
• Valve Guide Material: Nitronic 60
• Spring Material: 17-7 PH stainless steel
• Finish: Black

Included Components

• 1x Turbosmart GenV PowerGate60CG External Wastegate
• 1x Pre-installed spring
• 1x Additional spring set (3 PSI / 5 PSI combinations)
• 1x Stainless steel valve seat
• 2x V-band clamps
• 2x Stainless weld flanges
• 4x 1/8" NPT blanking plugs
• 2x 1/8" NPT vacuum hose fittings
• 1x Collar tool set
• 1x Turbosmart decal

Product Description

The Turbosmart TS-0555-1202 GenV PowerGate60CG is a motorsport-grade 60mm external wastegate designed for turbocharged engines using compressed-gas boost control strategies. Built specifically for applications that utilize CO2 or compressed air control systems, the inverted diaphragm design allows the wastegate to operate reliably under large pressure differentials while delivering extremely precise boost regulation.

The GenV design incorporates CFD-optimized internal flow paths and improved thermal management to deliver consistent boost control in demanding racing environments. Its construction includes a high-temperature 347 stainless steel body, a Nitronic 60 valve guide, and 17-7 PH stainless steel springs engineered to withstand extreme exhaust temperatures and high boost pressures.

Designed for universal turbocharged applications, the PowerGate60CG is commonly used in professional motorsport builds such as drag racing, time attack, and high-horsepower custom turbo setups. Installation depends on the turbo manifold and exhaust configuration, and professional installation with proper boost control tuning is recommended to achieve optimal performance and reliability.
