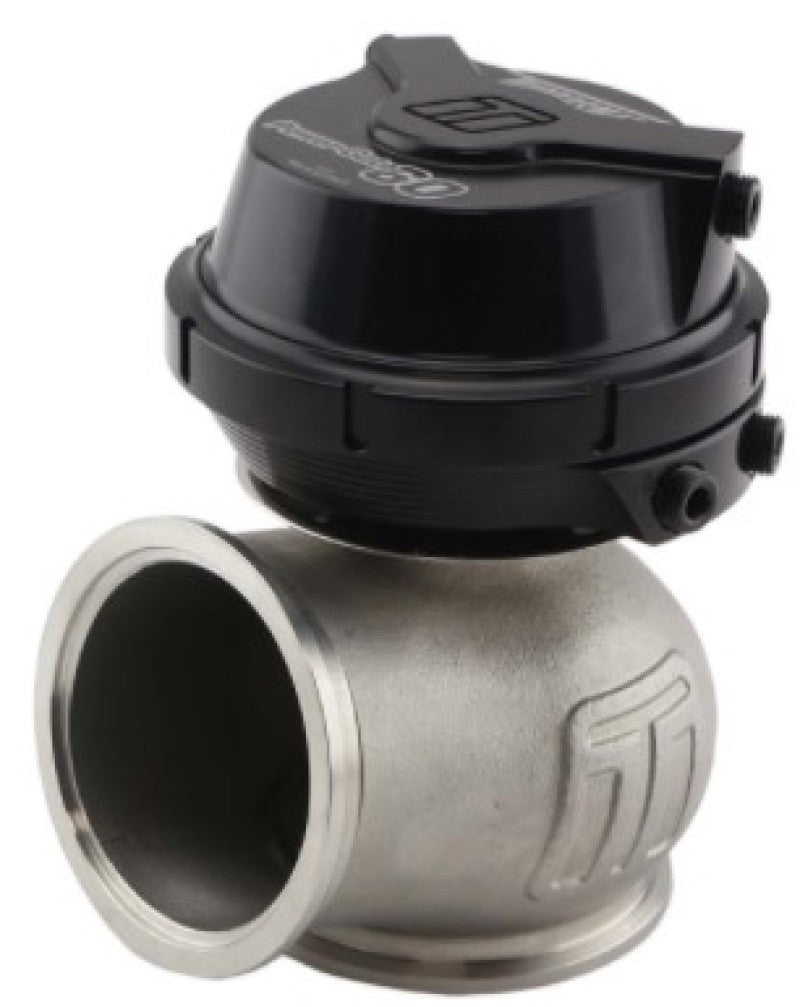

Turbosmart TS-0555-1015 GenV PowerGate60 60mm 14psi External Wastegate Sleeper

Vehicle Fitment

• Universal Performance Application (Turbocharged Engines)

Features

• GenV PowerGate60 60mm external wastegate for high-horsepower turbo systems
• Pre-configured with a 14 PSI base spring for reliable boost control
• CFD-optimized internal flow path for maximum exhaust bypass efficiency
• Rotatable actuator housing allows flexible installation and vacuum routing
• Optional liquid-cooling ports for extreme motorsport heat management
• High fatigue-resistant diaphragm for stable boost control under high load
• Strap-style V-band clamps allow quick installation and service
• Compatible upgrade for previous Turbosmart Gen4 wastegates
• Stealth "Sleeper" all-black finish for discreet engine bay appearance

Specifications

• Part Number: TS-0555-1015
• Product Series: Turbosmart GenV PowerGate60 (WG60)
• Wastegate Type: External diaphragm-actuated wastegate
• Valve Diameter: 60mm
• Base Spring Pressure: 14 PSI
• Reference Ports: 1/8" NPT
• Mounting Style: V-band inlet and outlet connections
• Body Material: High-temperature 347 stainless steel
• Valve Guide Material: Nitronic 60
• Spring Material: 17-7 PH stainless steel
• Finish: Sleeper stealth black

Included Components

• 1x Turbosmart GenV PowerGate60 External Wastegate
• 1x Pre-installed 14 PSI spring
• 1x Spring kit (3 PSI, 5 PSI, 7 PSI, 14 PSI)
• 1x Stainless steel valve seat
• 2x V-band clamps
• 2x Stainless weld flanges
• 4x 1/8" NPT blanking plugs
• 2x 1/8" NPT vacuum hose fittings
• 1x Locking collar tool
• 1x Turbosmart decal

Product Description

The Turbosmart TS-0555-1015 GenV PowerGate60 is a motorsport-grade 60mm external wastegate designed for high-performance turbocharged engines. As the largest model in the Turbosmart GenV wastegate lineup, the PowerGate60 delivers exceptional exhaust bypass flow capacity and highly stable boost control for high-horsepower street, drag, and circuit racing applications. The unit is supplied with a 14 PSI base spring and includes a full spring kit to allow precise boost pressure tuning depending on the turbo system and engine setup.

The GenV series was redesigned with CFD-validated internal flow paths and improved thermal management to maximize durability and performance. A high-temperature 347 stainless steel body, Nitronic 60 valve guide, and 17-7 PH stainless steel springs provide exceptional resistance to heat and fatigue. Additional features such as optional liquid actuator cooling, multiple reference ports, and a fully rotatable actuator housing allow flexible installation on custom turbo manifolds and exhaust configurations.

This model features Turbosmart's "Sleeper" stealth finish, giving the wastegate an all-black appearance that blends discreetly into performance engine bays. Designed for universal turbocharged applications, the PowerGate60 is commonly used in custom turbo builds where precise boost regulation and high exhaust flow capacity are required. Installation requirements depend on the turbo manifold and exhaust layout, and professional installation with proper boost control tuning is recommended.
