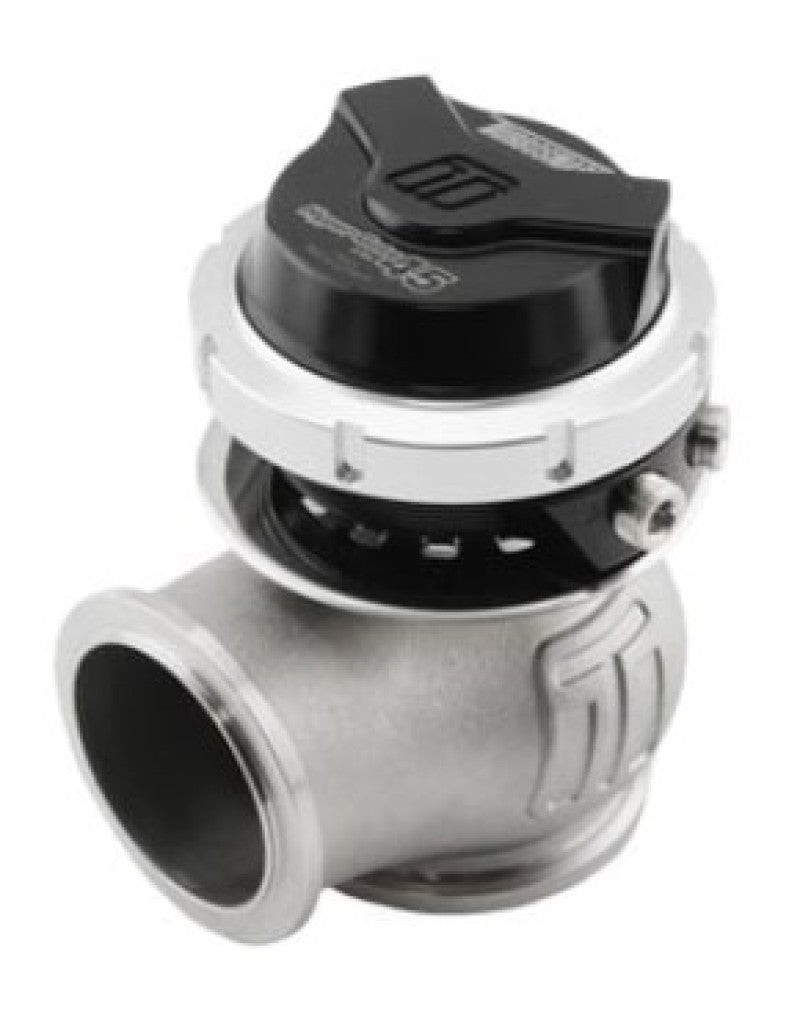

Turbosmart TS-0553-1602 Gen-V Hyper-Gate 45 Lite 7psi External Wastegate Black

Vehicle Fitment

• Universal -- fits any turbocharged application requiring a 45mm external wastegate

Fitment Notes

• External wastegate -- requires manifold with 45mm V-band wastegate port
• Includes inlet and outlet SS304 weld flanges and V-bands
• Compact "Lite" actuator for tight engine bays with limited space
• Direct upgrade for all Gen-IV Turbosmart wastegates
• 7 psi spring pre-installed; 3/5/7/14 psi spring kit included
• Race use only -- not CARB legal

Features

• Gen-V Hyper-Gate 45 Lite -- compact high-flow external wastegate
• Low-profile actuator housing (reduced height and diameter vs. standard)
• Class-leading CFD-driven and bench-validated flow performance
• Class-leading thermal performance and fatigue resistance
• Nitronic 60 valve guide and 347 stainless steel body
• 17/7 PH stainless steel springs
• Rotatable/clockable actuator housing for flexible routing
• Optional liquid actuator cooling provision
• Strap-type V-band clamps
• Unique collar-locking system
• 1/8" NPT reference ports
• Optional position sensor available separately

Specifications

• Part Number: TS-0553-1602
• Series: Gen-V Hyper-Gate 45 Lite
• Type: External mechanical wastegate (diaphragm)
• Relief Diameter: 45mm
• Spring Installed: 7 psi
• Body Material: 347 stainless steel
• Valve Guide: Nitronic 60
• Springs: 17/7 PH stainless steel
• Top/Actuator: Black anodized aluminum
• V-Band Fitment: 45mm inlet and outlet
• Reference Ports: 1/8" NPT
• UPC: 9329677022612

Included Components

• 1x Gen-V Hyper-Gate 45 Lite wastegate (pre-assembled, 7 psi spring installed)
• 1x SS316 valve seat
• 1x Inlet V-band clamp
• 1x Outlet V-band clamp
• 1x Inlet SS304 weld flange
• 1x Outlet SS304 weld flange
• 1x Collar tool (master/slave)
• Spring kit: 3, 5, 7, 14 psi (17/7 PH stainless)
• 4x 1/8" NPT plugs (1 installed), 2x 1/8" NPT nipples
• Turbosmart decal and instruction card

Product Description

The Turbosmart TS-0553-1602 is a Gen-V Hyper-Gate 45 Lite external wastegate with a compact "Lite" actuator designed for tight engine bays where space is limited. The 45mm relief diameter delivers class-leading flow performance validated by CFD analysis and bench testing. Built from a high-temperature 347 stainless steel body with a Nitronic 60 valve guide for superior fatigue resistance and thermal durability under sustained boost conditions.

Rotatable actuator housing allows 360-degree routing of reference hoses. Full spring kit included (3/5/7/14 psi) with 7 psi pre-installed. Optional liquid cooling provision and position sensor cap available separately. Direct drop-in upgrade for all Gen-IV Turbosmart wastegates. Also available as 14 psi (TS-0553-1612) and in Sleeper finish (TS-0553-1615). Race use only -- not CARB legal.
