Turbosmart TS-0553-1015 GenV HyperGate45 45mm 14psi External Wastegate Sleeper

Vehicle Fitment

• Universal -- any turbocharged engine requiring external wastegate
• Engines with aftermarket or custom manifold with external wastegate provision
• Direct fit upgrade for all Gen4 Turbosmart HyperGate45 wastegates

Fitment Notes

• Inlet / Outlet: V-Band strap-type clamps included
• Inlet and outlet weld flanges included
• Same mounting orientation as Gen4 HyperGate45
• Liquid cooling provision -- optional, not included
• Position sensor -- optional, sold separately
• Race / competition use only -- not street legal in CA

Features

• Sleeper Edition -- all-black finish
• 45mm valve -- highest flowing 45mm gate
• CFD optimized and bench validated
• Class-leading thermal performance
• Class-leading fatigue resistance
• Collar-locking system
• Rotatable actuator -- 360° hose routing
• Strap-type V-band clamps
• 1/8" NPT reference ports
• Nitronic 60 valve guide
• High-temp 347 SS body
• 17-7 PH stainless steel springs
• SS316 valve seat
• Made in Australia
• 1-year limited warranty

Specifications

• Part Number: TS-0553-1015
• Series: GenV HyperGate45 -- Sleeper
• Valve Diameter: 45mm
• Base Spring Pressure: 14psi
• Finish: All-black
• Inlet / Outlet: V-Band strap-type
• Reference Ports: 1/8" NPT
• Body Material: 347 stainless steel
• Valve Guide: Nitronic 60
• Valve Seat: SS316
• Spring Material: 17-7 PH stainless steel
• UPC: 9329677043877

Included Components

• 1x GenV HyperGate45 Sleeper wastegate
• Full spring set -- 3, 5, 7, 14psi
• Locking collar tool
• SS316 valve seat
• 2x Strap-type V-band clamps
• Inlet and outlet weld flanges
• Hose tail and blank fitting kit
• Turbosmart decal

Product Description

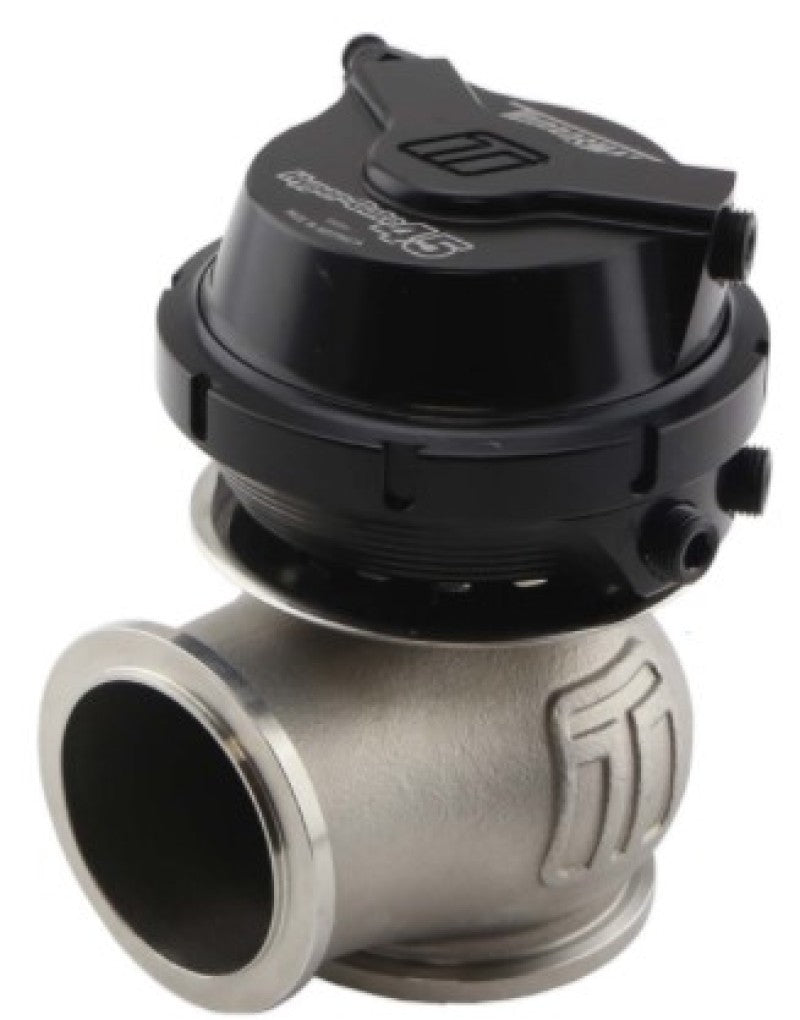

The Turbosmart TS-0553-1015 is the GenV HyperGate45 External Wastegate in the Sleeper Edition -- all-black hardware and body on Turbosmart's flagship 45mm external wastegate. The highest flowing 45mm gate available, the GenV was a ground-up redesign with CFD-optimized flow geometry, class-leading thermal endurance, and fatigue resistance. The collar-locking system, 360° rotatable actuator housing, and strap-type V-band clamps deliver race-proven reliability and configurability.

Direct fit for all Gen4 Turbosmart HyperGate45 wastegates -- same mounting orientation retained. Full spring set (3, 5, 7, 14psi) included. Optional liquid actuator cooling and position sensor available separately. Race/competition use only. Engineered and manufactured in Australia. Backed by Turbosmart's 1-year limited warranty.
