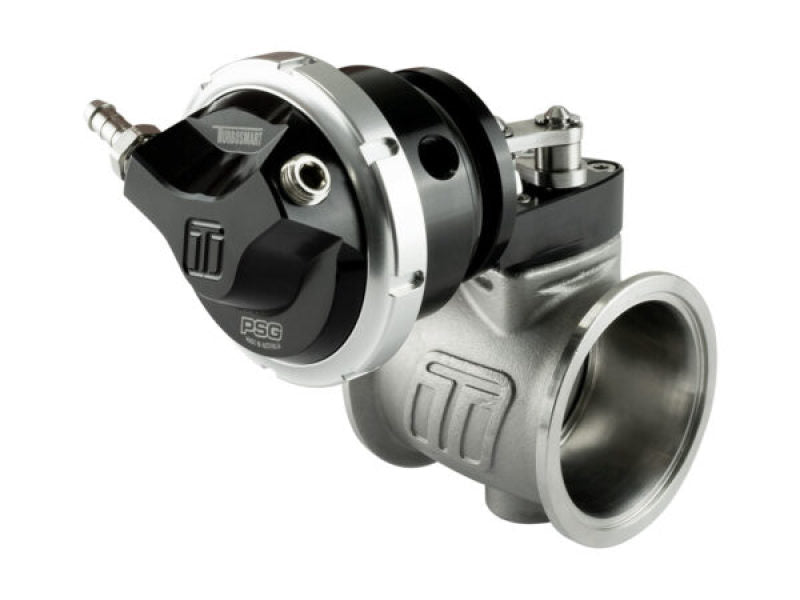

Turbosmart TS-0565-1762 StraightGate50 6PSI Wastegate for Custom Turbo Applicati

Vehicle Fitment

• Universal fitment for custom turbocharged applications

Features

• Zero-offset butterfly-style valve for maximum flow
• Self-balancing design minimizes actuator work
• Pre-fitted with 6 PSI springs; adjustable up to 42 PSI
• Supports single or twin port boost-based control
• High-flow capacity of 383.9 CFM (10.87 m³/min)
• Constructed from high-grade stainless steel and anodized aluminum
• Compact design suitable for tight engine bays
• Includes Turbosmart's unique locking collar ring

Specifications

• Valve Diameter: 50mm (1.97 inches)
• Flow Rate: 383.9 CFM / 10.87 m³ per minute
• Materials:
  • Butterfly and Shaft: Stainless Steel 630
  • Main Body: Stainless Steel 347
  • V-Band Clamps: Heat Treated Stainless Steel 431
  • Bracket & Actuator: 6262 T6 Anodized Aluminum
  • Linkages & Control Arm: Stainless Steel N60
• Base Spring Pressure: 6 PSI (adjustable up to 42 PSI)
• Actuation: Pneumatic (Boost-Based)
• Mounting: V-Band Inlet and Outlet Flanges

Included Components

• 1x Turbosmart StraightGate50 Wastegate Assembly
• 1x Inlet V-Band Clamp
• 1x Outlet V-Band Clamp
• 1x Inlet Weld Flange
• 1x Outlet Weld Flange
• 1x Set of Springs (6 PSI pre-installed)
• 2x 1/8 NPT Hose Tail Fittings
• 2x 1/8 NPT Blanking Plugs
• 1x Turbosmart Decal

Product Description

The Turbosmart TS-0565-1762 StraightGate50 is a revolutionary external wastegate designed for high-performance turbocharged applications. Featuring a zero-offset butterfly-style valve, it offers unparalleled flow characteristics and precise boost control. The self-balancing design ensures consistent performance by minimizing the actuator's workload, even under extreme exhaust pressures.

Pre-fitted with 6 PSI springs and compatible with both single and twin port boost-based control systems, the StraightGate50 provides a wide tuning window, accommodating various performance requirements. Its compact construction, utilizing high-grade stainless steel and anodized aluminum, allows for installation in space-constrained engine bays without compromising durability.

Ideal for custom turbo setups, the StraightGate50 delivers exceptional boost regulation and responsiveness, making it a top choice for enthusiasts and professionals seeking to maximize their engine's potential.
