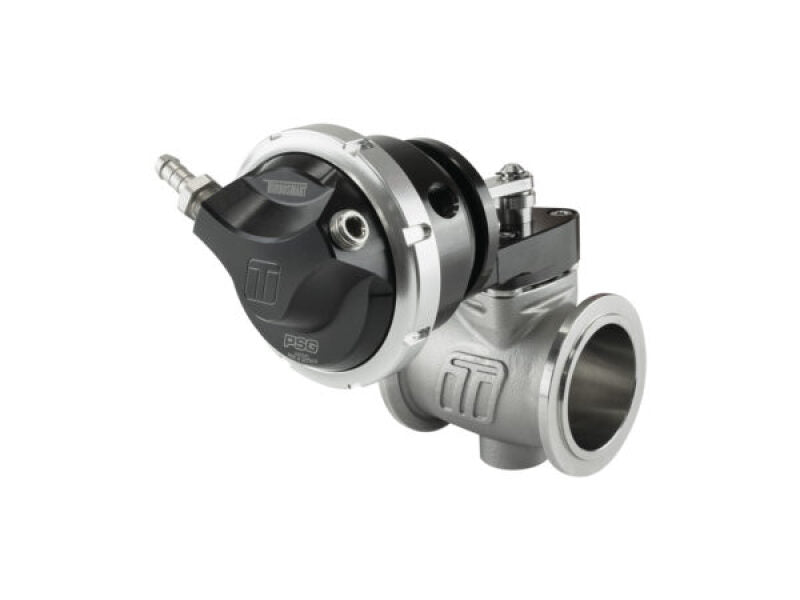

Turbosmart TS-0563-1762 PSG40 40mm 6psi Pneumatic StraightGate Wastegate Black

Vehicle Fitment

• Universal Performance Application (Turbocharged Engines)

Features

• PSG40 Pneumatic StraightGate external wastegate designed for precise boost control
• 40mm butterfly-style zero-offset valve for improved exhaust flow
• Self-balancing valve design maintains stable boost control under high drive pressure
• Boost-based pneumatic actuator with single or twin-port control capability
• Straight-through valve design improves flow compared to traditional poppet valves
• Locking collar ring allows quick spring changes and maintenance
• High-flow design rated approximately 217.4 CFM (6.16 m³/min)
• Compact StraightGate design ideal for tight engine bay installations
• V-band mounting system allows fast installation and servicing

Specifications

• Part Number: TS-0563-1762
• Product Series: Turbosmart PSG40 StraightGate
• Wastegate Type: Pneumatic Boost-Based External Wastegate
• Valve Diameter: 40mm (1.57 in)
• Base Spring Pressure: 6 PSI
• Flow Capacity: Approximately 217.4 CFM (6.16 m³/min)
• Valve Material: Stainless Steel 630 Butterfly and Shaft
• Body Material: Stainless Steel 347
• Bracket and Actuator Material: 6262-T6 Anodized Aluminum
• Linkage Material: Nitronic 60 Stainless Steel
• Mounting: V-band inlet and outlet
• Control Ports: 1/8" NPT

Included Components

• 1x Turbosmart PSG40 Pneumatic StraightGate Wastegate
• 1x 6 PSI spring (pre-installed)
• Additional boost control springs
• 1x StraightGate40 inlet flange
• 1x StraightGate40 outlet flange
• 2x StraightGate40 weld flanges
• 2x 1/8" NPT hose tail fittings
• 2x 1/8" NPT blanking plugs
• 1x Turbosmart decal

Product Description

The Turbosmart TS-0563-1762 PSG40 Pneumatic StraightGate Wastegate is a high-performance 40mm external wastegate engineered for turbocharged engines requiring precise and stable boost control. Featuring Turbosmart's unique StraightGate design, this wastegate uses a zero-offset butterfly valve that allows exhaust pressure to act evenly on both sides of the valve. This self-balancing configuration reduces actuator effort and enables highly consistent boost regulation even under high exhaust drive pressure.

Unlike traditional poppet-style wastegates that redirect exhaust flow at sharp angles, the StraightGate design provides a straight-through exhaust path that significantly improves flow efficiency. With a flow capacity of approximately 217.4 CFM and support for boost control pressures ranging from the supplied 6 PSI base spring up to significantly higher levels through spring combinations, the PSG40 offers a wide tuning window for performance engines.

Constructed with a 347 stainless steel body, 630 stainless steel butterfly valve, and durable Nitronic 60 linkages, the PSG40 is built to withstand the extreme heat and pressure found in high-performance turbo systems. Designed for universal turbocharged applications, this wastegate is commonly used in custom turbo builds, motorsport vehicles, and high-horsepower street cars where precise boost management and reliable performance are critical.
