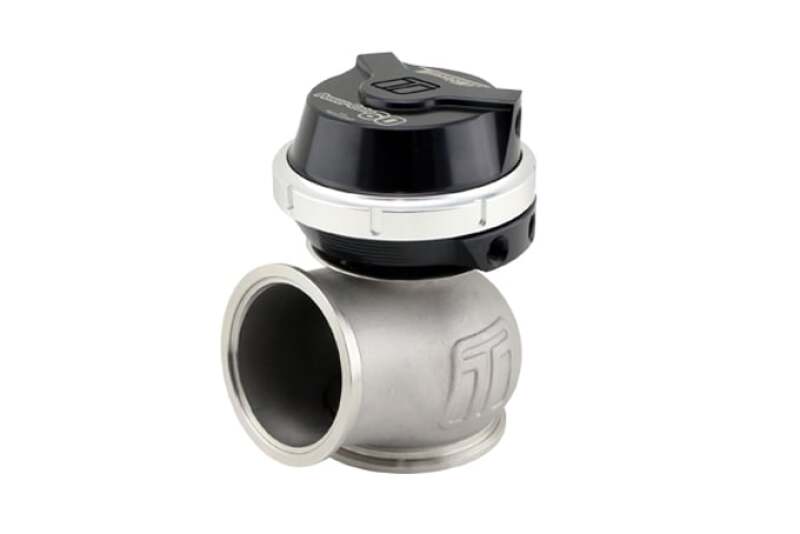

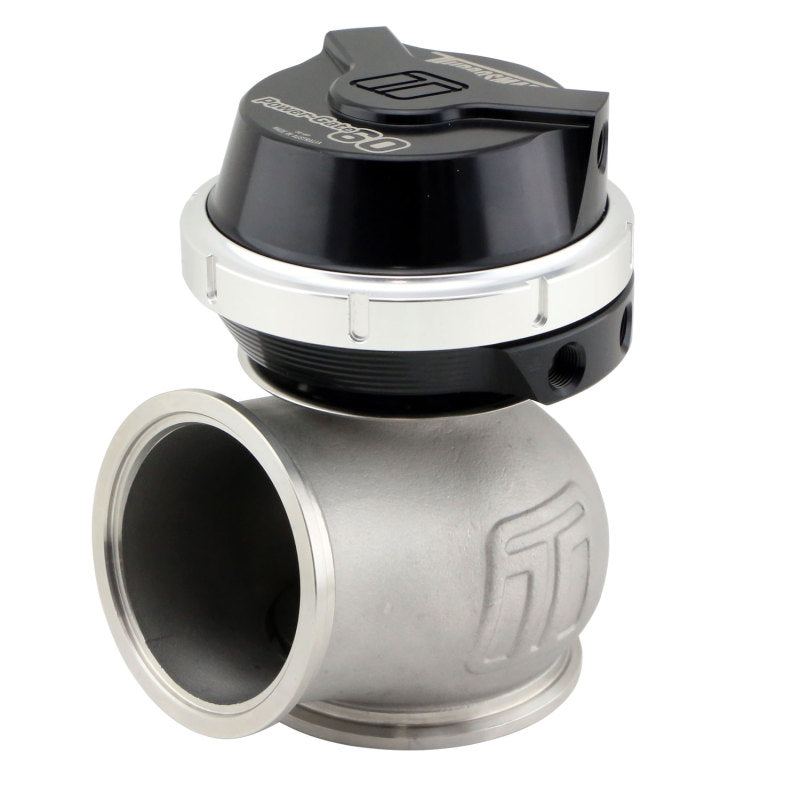

Turbosmart TS-0555-1012 GenV WG60 PowerGate60 External Wastegate 60mm 14PSI

Vehicle Fitment

• Universal -- not vehicle-specific, some adaptation may be required

Fitment Notes

• Not vehicle-specific -- fitment depends on turbo system layout and mounting
• Direct fit upgrade to all Gen4 Turbosmart wastegates
• Only mounting orientation carries over from Gen4 hardware
• Custom order part -- may require confirmation before purchase

Features

• Largest and highest-flowing 'poppet style' wastegate in the world
• Ground-up rework of the classic Turbosmart external wastegate design
• CFD optimized and validated in-house for maximum flow and thermal management
• World-leading extended thermal performance and fatigue resistance
• Solid, one-piece coated stainless steel valve
• Shielded diaphragm housing for excellent heat handling
• Unique collar-locking system
• Variable actuator cap and base for 360-degree hose routing
• Strap-type V-band clamps
• Optional liquid-cooling provision
• 1/8" NPT reference ports
• Provided with a full range of springs

Specifications

• Series: GenV PowerGate60
• Valve size: 60mm
• Wastegate type: Mechanical, diaphragm style
• Wastegate location: External
• Base pressure: 14PSI
• Finish: Black
• Clamp type: Strap-type V-band

Included Components

• 1x GenV PowerGate60 wastegate
• 1x Full range of actuator springs

Product Description

The Turbosmart TS-0555-1012 GenV WG60 PowerGate60 is the largest and highest-flowing external wastegate in Turbosmart's GenV range, engineered as a ground-up rework of the classic design that retains only the mounting orientation from the prior Gen4 hardware. Motorsport-proven and cost-effective, this 60mm poppet-style wastegate is CFD optimized and validated in-house, delivering world-leading extended thermal performance, fatigue resistance, and best-in-class flow for the most demanding turbocharged builds.

A solid, one-piece coated stainless steel valve and shielded diaphragm housing deliver excellent heat-handling capability, while a unique collar-locking system and variable actuator cap and base allow for 360-degree optional routing of reference hoses. Strap-type V-band clamps and optional liquid-cooling provision round out a genuinely motorsport-derived design built for extreme performance turbo systems.

Finished in black at a 14PSI base pressure, this PowerGate60 is a direct fit upgrade to any Gen4 Turbosmart wastegate installation. Built for serious turbo builders running large-frame turbos who need the highest-flowing external wastegate available, this unit ships with the full range of actuator springs for boost tuning.
