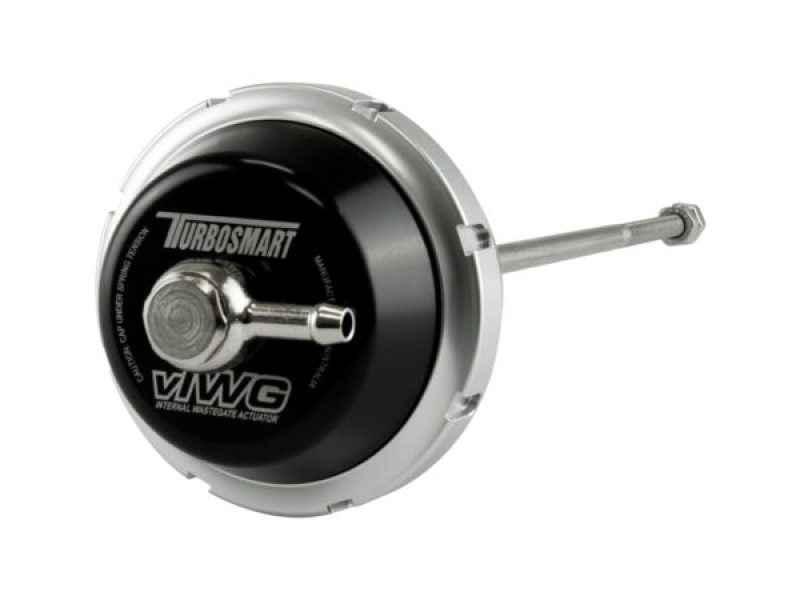

Turbosmart TS-0604-1155 Wastegate Actuator for 07-13 Mini Cooper S R56 N14/N18

Vehicle Fitment

• 2007-2013 Mini Cooper S R56 1.6L Prince N14/N18 Turbo
• 2007-2013 Mini John Cooper Works R56 1.6L Prince N14/N18 Turbo

Fitment Notes

• Bolt-on fitment for factory R56 turbocharger
• Not for R55 Clubman or R60 Countryman -- engine bay packaging differs
• Tuning and recalibration recommended for optimal performance
• Race/off-road use only

Features

• Increased diaphragm surface area over factory actuator
• Revised spring leverage for improved Working Ratio
• Broader boost and torque curve, earlier peak boost onset
• Peak boost held longer into higher RPM range
• Proprietary Silicon Nomex diaphragm
• High-grade billet aluminum construction
• Stainless steel rods and clevis
• Turbosmart unique locking collar system for quick spring changes
• Compatible with same base pressure as factory or higher

Specifications

• Base pressure: 6inHg
• Actuator type: Vacuum-operated internal wastegate actuator (vIWG)
• Material: Billet aluminum
• Finish: Black anodized
• Rod/clevis material: Stainless steel
• Diaphragm material: Silicon Nomex

Included Components

• 1x Wastegate actuator (springs pre-fitted)
• 1x Set of required fasteners
• 1x Swivel hose barb
• 1x Turbosmart decal

Product Description

The Turbosmart TS-0604-1155 is a vIWG upgraded wastegate actuator built specifically for the R56 Mini Cooper S and John Cooper Works, delivering the maximum possible boost response for the factory frame turbocharger on the 1.6L Prince N14/N18 engine. An increased diaphragm surface area combined with revised spring leverage gives this actuator a greater Working Ratio than the factory unit, translating into noticeably improved boost response across the entire RPM range.

Running at the same base pressure as factory, drivers can expect a broader boost and torque curve, with peak boost arriving earlier in the RPM range and holding longer into higher RPM -- gains that can be amplified further with a higher base pressure setup, though tuning and recalibration is recommended to get the most out of it. A proprietary Silicon Nomex diaphragm, billet aluminum construction, and stainless steel rods and clevis are built to handle sustained boost and backpressure without fatigue.

Turbosmart's unique locking collar system allows for quick spring changes without disassembling the whole unit, making this actuator easy to fine-tune as a build progresses. Intended for race and off-road use, this vIWG actuator is the correct upgrade path for R56 Cooper S/JCW owners running a tuned setup who want a more responsive factory-frame turbo without stepping up to a full aftermarket wastegate.
