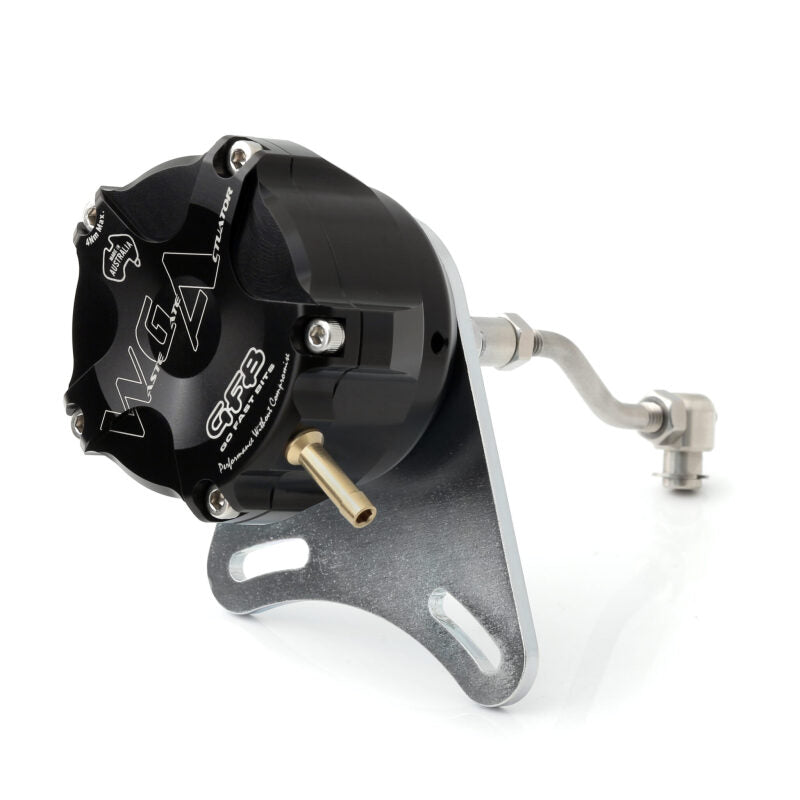

Go Fast Bits 7305 WGA Wastegate Actuator for 99-21 Subaru WRX/STI Single-Scroll

Vehicle Fitment

• 1999-2021 Subaru WRX, single-scroll turbo, Internal wastegate
• 1999-2021 Subaru STI, single-scroll turbo, Internal wastegate

Fitment Notes

• Single-scroll IHI VF turbos only
• Does not fit twin-scroll turbos
• Not for Spec C Type RA or other twin-scroll models
• Bolt-on, no turbo removal required
• Tuning required after install -- this part increases boost pressure

Features

• Larger diaphragm than OEM actuator
• Greater control authority over wastegate flap
• Brings boost on sooner
• Holds boost longer
• Resists exhaust backpressure during spool-up
• Resists backpressure at high RPM
• Turnbuckle pre-load adjustment
• Addresses factory 2-port boost control limitations

Specifications

• Type: Internal wastegate actuator (WGA)
• Base pressure: 15psi (5psi + 10psi springs installed)
• Additional spring: 7psi, included loose
• Adjustment: Turnbuckle pre-load

Included Components

• 1x Wastegate Actuator
• 3x Springs (5psi, 10psi, 7psi)

Product Description

The GFB 7305 WGA is a high-performance bolt-on internal wastegate actuator for single-scroll 1999-2021 Subaru WRX and STI, also fitting most single-scroll IHI VF turbos. It's built around increasing the "area under the boost curve" -- using a larger diaphragm than the factory actuator to give more control authority over the wastegate flap, so exhaust backpressure has a harder time forcing the wastegate open early during spool-up or at high RPM.

This addresses a known weak point in Subaru's factory 2-port boost control system, which struggles to fully shut off pressure to the wastegate during spool-up. The WGA ships with 5psi and 10psi springs installed for a 15psi base pressure, plus a 7psi spring included separately for further tuning, all adjustable through a unique turnbuckle pre-load system.

Important: this is a physical bolt-on part, but it functions as a tuning tool -- it will increase boost pressure, so a corresponding tune is required after installation. Not compatible with twin-scroll turbos, including special models like the Spec C Type RA.
