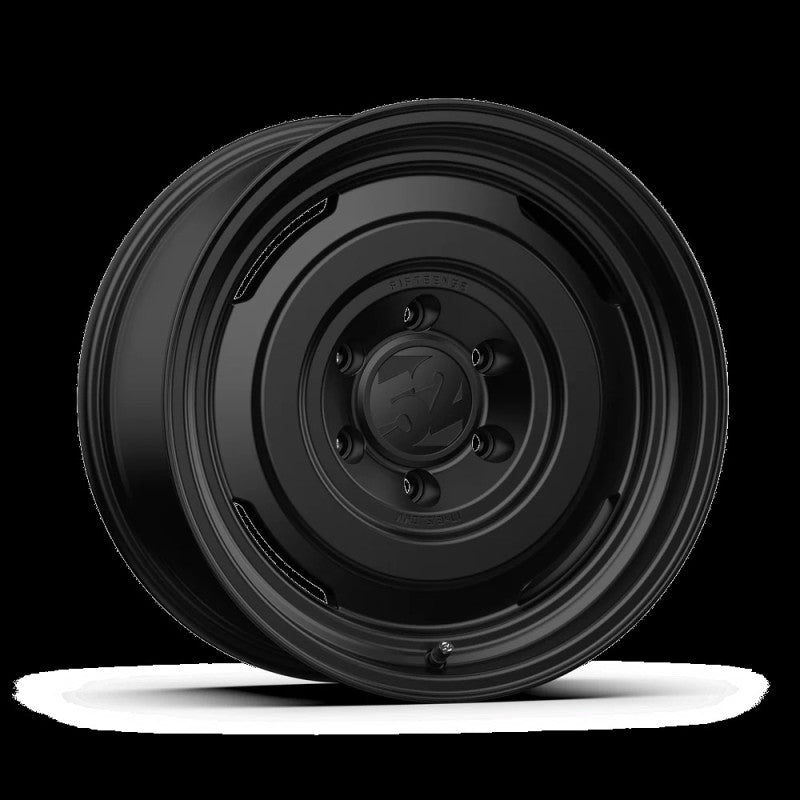

fifteen52 AHDAB-78053+25 Analog HD 17x8.0 +25mm 5x130 84.1 Asphalt Black Wheel

Vehicle Fitment

• Porsche 718 Boxster / 718 Cayman (2017+, 5x130 bolt pattern)
• Porsche 911 (991 / 992 generation, 5x130 bolt pattern - confirm offset and clearance for specific trim)
• Porsche Cayenne (2003-2010, 5x130 bolt pattern)
• Porsche Macan (select fitments - verify bolt pattern and hub bore)
• Mercedes-Benz G-Class G500 / G55 / G63 (2003+, 5x130 bolt pattern)
• Note: Always verify offset, hub bore (84.1mm), and brake caliper clearance for your specific vehicle and trim before purchasing

Fitment Notes

• 5x130 bolt pattern only - this specific part number is not compatible with 5x120, 5x112, or other common bolt patterns
• 84.1mm center bore - hub rings may be required for vehicles with a smaller hub diameter
• +25mm offset - verify caliper clearance and suspension geometry compatibility for your specific vehicle and suspension setup before ordering
• Exposed lug design - aftermarket lug nuts compatible with the exposed lug style are recommended; confirm lug nut seat type (ball seat, conical, or flat) for your specific application
• Sold individually - order 4 for a complete set
• fifteen52 warranty is void if wheels are used for off-road or track use, re-finished (including powder-coating), or damaged by improper installation, road hazards, or mechanical car wash equipment

Features

• Modern reinterpretation of the classic steel wheel silhouette, redesigned from the ground up in all-aluminum cast construction to reduce unsprung weight while retaining the timeless aesthetic of vintage steel wheel styling
• Dimensioned center section with slotted pockets channels moving airflow through to the brake system, providing passive brake cooling for improved braking performance during spirited driving
• Reinforced flange design adds structural integrity at the bead seat area for improved durability under dynamic cornering loads
• Exposed lug design delivers a purposeful, utilitarian appearance consistent with the Analog HD's off-road-meets-street design ethos
• Asphalt Black (satin black) finish provides a low-sheen, durable appearance that complements both dark and light vehicle colors without the fingerprint-prone look of gloss finishes
• Monoblock (one-piece) cast aluminum construction eliminates the sealing and hardware concerns of multi-piece wheel assemblies
• 27 lb per-wheel weight suits a wide range of street and light adventure driving applications
• Backed by fifteen52's 1-Year Limited Warranty against defects in materials and workmanship under normal use

Specifications

• Part Number: AHDAB-78053+25
• Brand / Model: fifteen52 Analog HD
• Finish: Asphalt Black (Satin Black)
• Diameter: 17 in
• Width: 8.0 in
• Bolt Pattern: 5x130
• Offset: +25mm
• Backspacing: 5.5 in
• Center Bore: 84.1mm
• Load Rating: 2,650 lbs
• Weight: 27 lbs
• Construction: Cast Aluminum (Monoblock / One Piece)
• Style: Full Face with Slotted Pockets
• Exposed Lugs: Yes
• Directional: No
• UPC: 810026162893
• Warranty: 1-Year fifteen52 Limited Warranty (original owner, normal use)
• Sold: Individually

Included Components

• 1x fifteen52 Analog HD Wheel - 17x8.0 / 5x130 / +25mm / Asphalt Black
• Note: Lug nuts, hub rings, and TPMS sensors are not included

Product Description

The fifteen52 AHDAB-78053+25 is the Analog HD in Asphalt Black (satin black), sized 17x8.0 with a 5x130 bolt pattern and +25mm offset, targeting Porsche 718, 911, and Cayenne applications along with the Mercedes-Benz G-Class. The Analog HD is fifteen52's tribute to the classic steel wheel - a style that remains relevant across both off-road and street contexts - reengineered in cast aluminum to shed the weight penalty of actual steel while preserving the flat-face, slotted aesthetic that defines the look.

The center section's dimensioned slotted pockets aren't purely cosmetic: they're positioned to channel brake airflow from the wheel face to the caliper and rotor, providing passive cooling during sustained braking. A reinforced flange improves bead seat durability, and the exposed lug design adds to the purposeful visual character of the wheel. At 27 lbs in a 17-inch diameter, the Analog HD sits in a practical weight range for both daily use and weekend driving. Sold individually - four required for a complete set. fifteen52's 1-Year Limited Warranty covers defects in materials and workmanship under normal use; off-road and track use void coverage.
