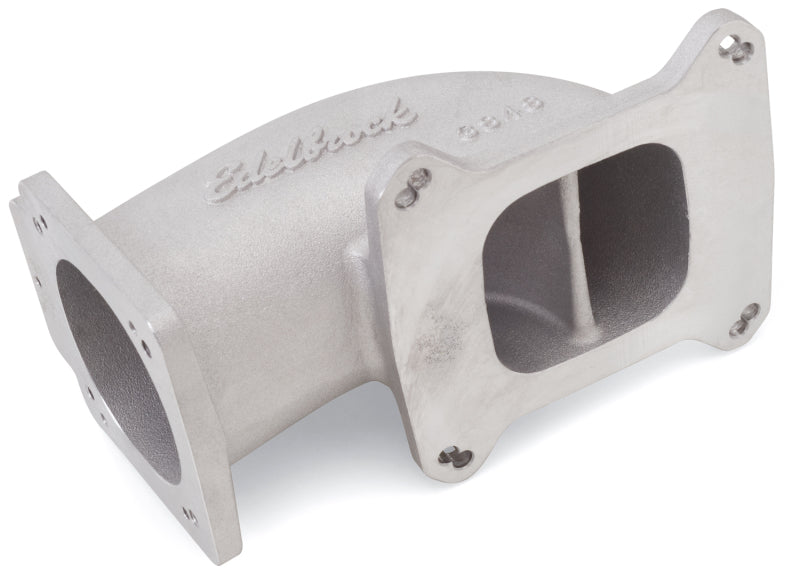

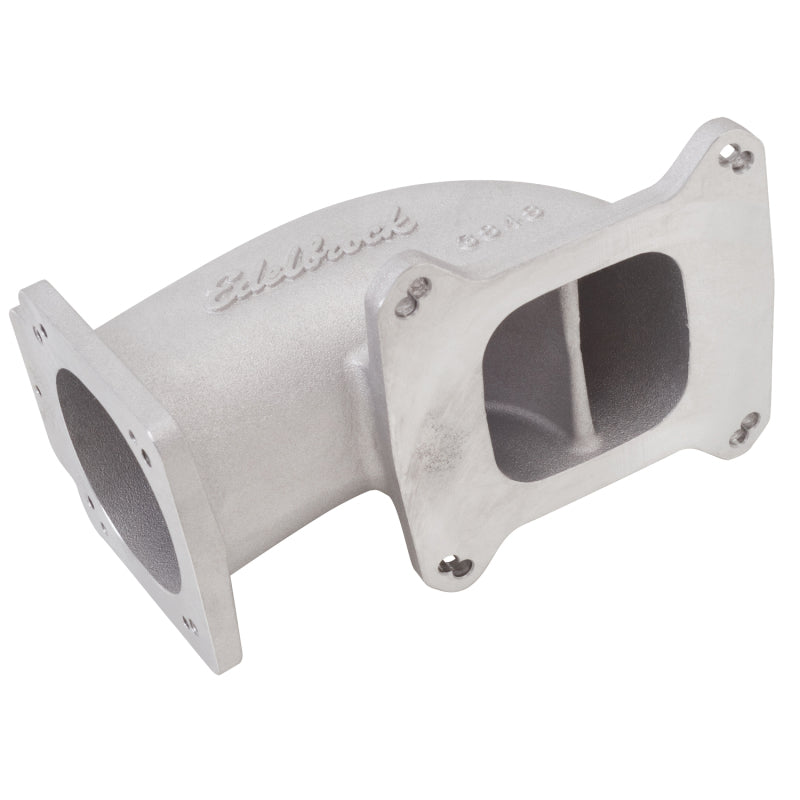

Edelbrock 3848 Ultra Low Profile 90mm Throttle Body Intake Elbow for LS1/LS2

Vehicle Fitment

• Universal fitment for LS1, LS2, and Ford 5.0L throttle bodies
• Designed for use with 4150-style square bore intake manifolds

Features

• Ultra low profile design for applications with limited hood clearance
• Allows for mounting in forward, backward, or sideways orientations
• Throttle body bore center sits 7.00" forward and only 2.00" up from the manifold flange
• Throttle body points downward at a 5° angle
• Constructed from high-quality aluminum for durability
• Includes gasket for easy installation
• Compatible with Edelbrock 90mm throttle body #3869 for optimal performance
• Not legal for sale or use in California on pollution-controlled vehicles

Specifications

• Part Number: 3848
• Material: Aluminum
• Finish: Satin
• Throttle Body Opening: 90mm
• Overall Height: 5.04 inches
• Length: 7.00 inches
• Bore Centerline Height: 2.00 inches
• Mounting Hole Quantity: 8
• Mount Hole Inside Diameter: 0.3125 inches
• Thickness: 0.440 inches
• Quantity Sold: Individually
• Warranty: 12 Months

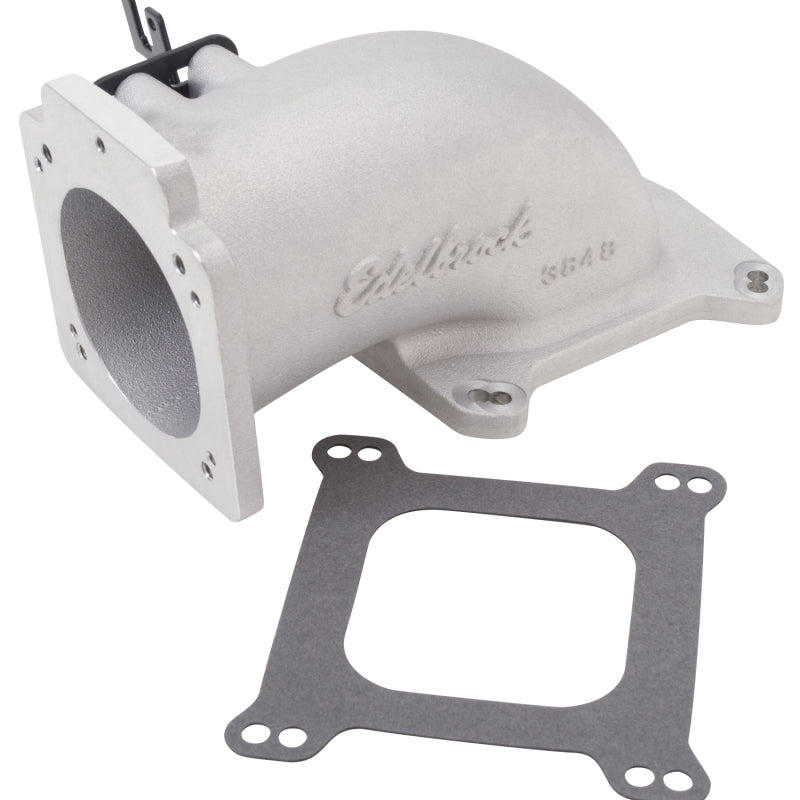

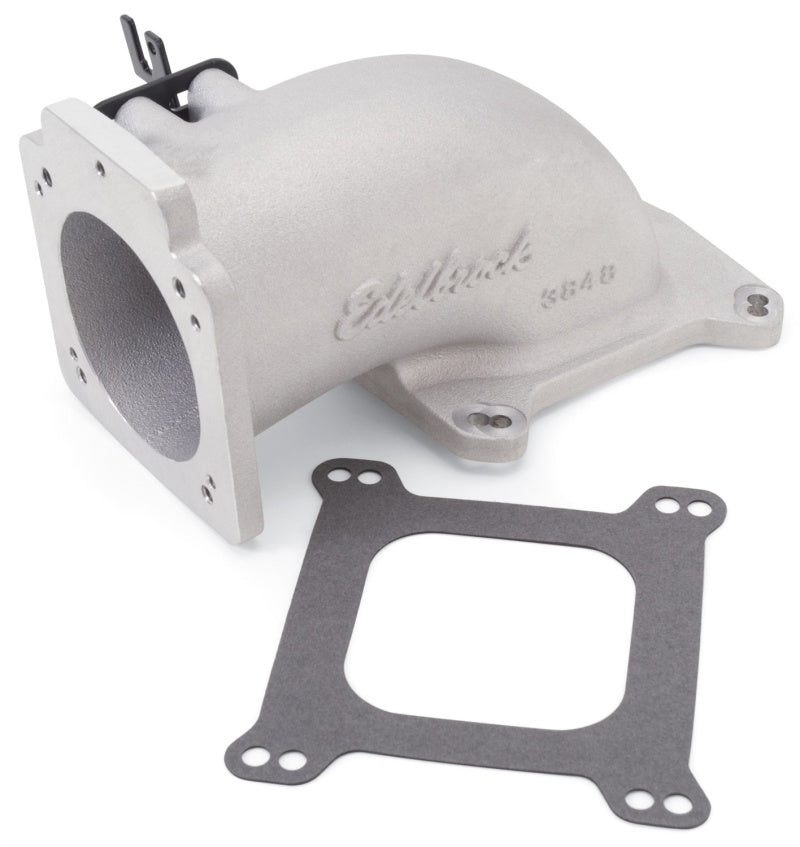

Included Components

• 1x Edelbrock 3848 Ultra Low Profile Intake Elbow
• 1x Gasket

Product Description

The Edelbrock 3848 Ultra Low Profile Intake Elbow is engineered to provide optimal airflow and clearance in applications with limited hood space. This intake elbow is designed to fit LS1, LS2, and Ford 5.0L throttle bodies and adapts to standard 4150-style square bore intake manifolds.

Featuring a 90mm throttle body opening, the 3848 intake elbow allows for mounting in various orientations, providing flexibility in installation. Its ultra low profile design ensures compatibility with vehicles that have restricted hood clearance, making it an ideal choice for performance enthusiasts seeking to maximize engine efficiency without compromising on space.

Constructed from high-quality aluminum and finished in satin, this intake elbow is built to withstand the rigors of high-performance applications. It includes a gasket for easy installation and is backed by a 12-month warranty, ensuring reliability and peace of mind for the user.
