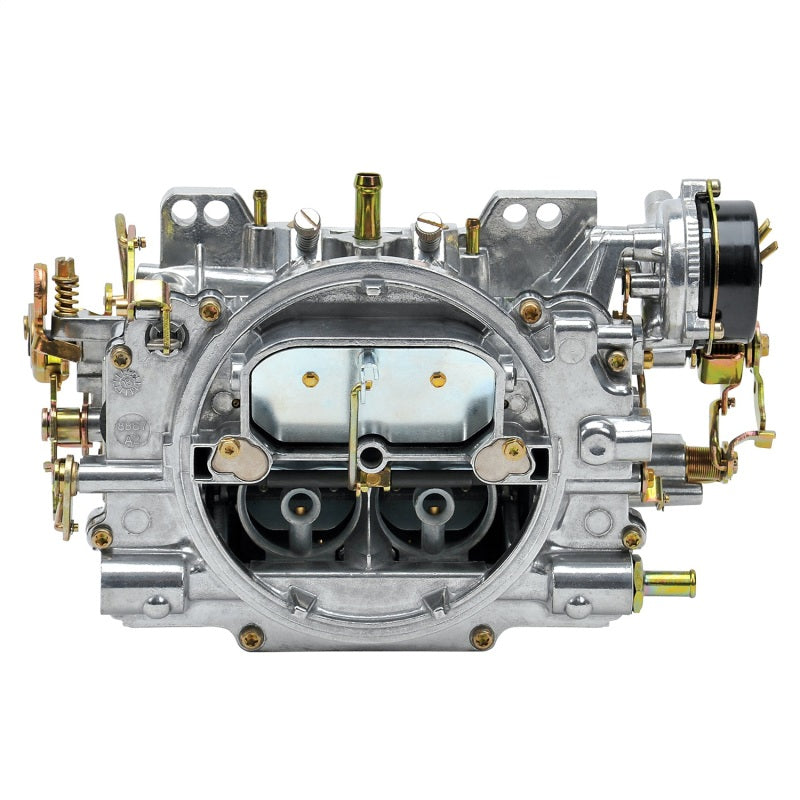

Edelbrock 1406 600CFM 4-Barrel Electric Choke Carburetor

Regular price: $497.95
Regular price
Sale price: $497.95

Shipping calculated at checkout.

In Stock: 38

Orders by 1pm PST ship same business day

Free Shipping w/2-4 Day Delivery

Authorized Dealer

Fitment Guarantee

90-Day Free Returns

Product Specification:

SKU:EDE1406

UPC: 85347014064

Weight: 9.2 lb

Inventory: 38

Type: Carburetors

Vehicle Fitment

Universal / Multi-Fit - suitable for small-block and small-displacement big-block V8 gasoline engines with square-bore 4-barrel intake manifolds, non-computer controlled fuel systems.

Features

600 CFM airflow for street and light performance applications
4-barrel square-bore flange for standard 4-barrel manifolds

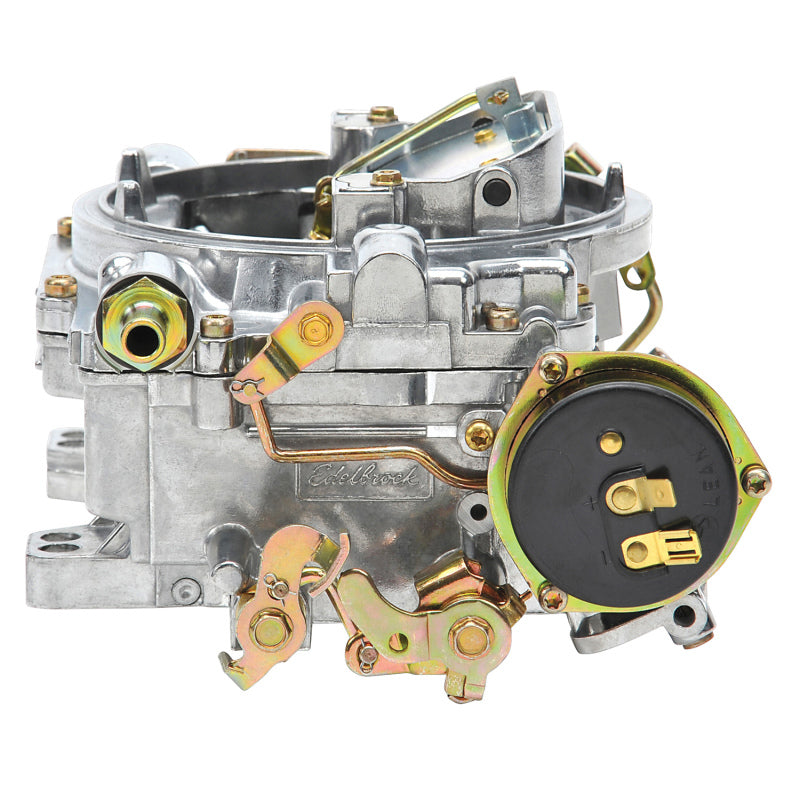

Electric choke for improved cold start performance
All-aluminum, two-piece body for durability and reduced weight
Rear-pivot float design with tub-style fuel bowls
Metering-rod circuit for smooth throttle response and tuning
Timed and full vacuum ports for distributor compatibility
Factory-installed jets and rods for balanced street performance

Specifications

Airflow: 600 CFM
Barrels: 4
Flange Type: Square-bore (4150 standard)
Choke: Electric
Jets: Primary .098, Secondary .095
Metering Rods: .075 x .047

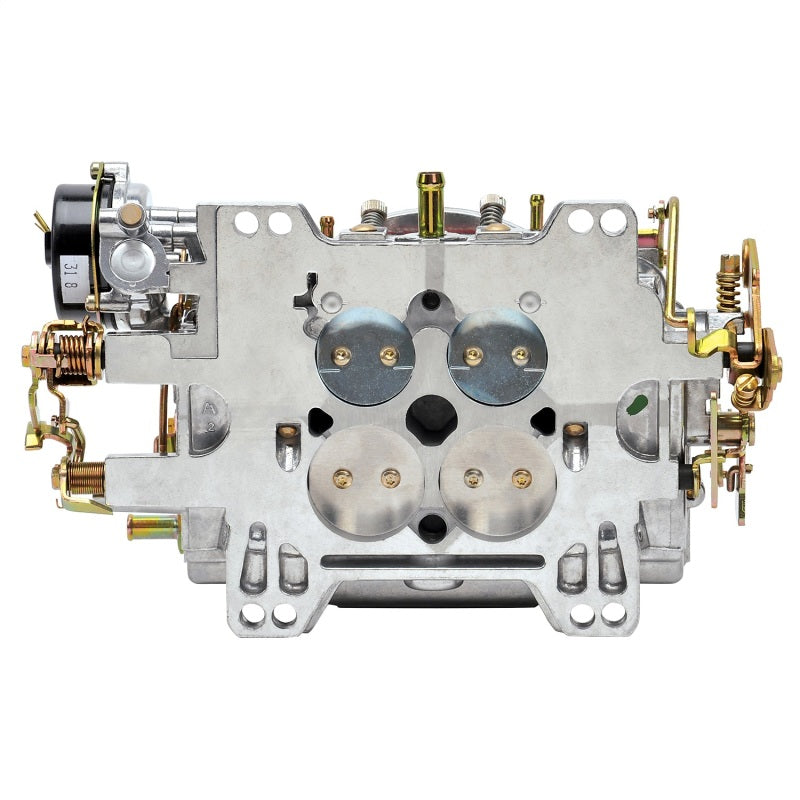

Bore Diameter: Primary 1.44 in, Secondary 1.69 in
Body Height: 3.25 in
Fuel Inlet: Single
Finish: Satin / Burnished aluminum
Fuel Type: Gasoline only (not for alcohol, E85, or race fuel)

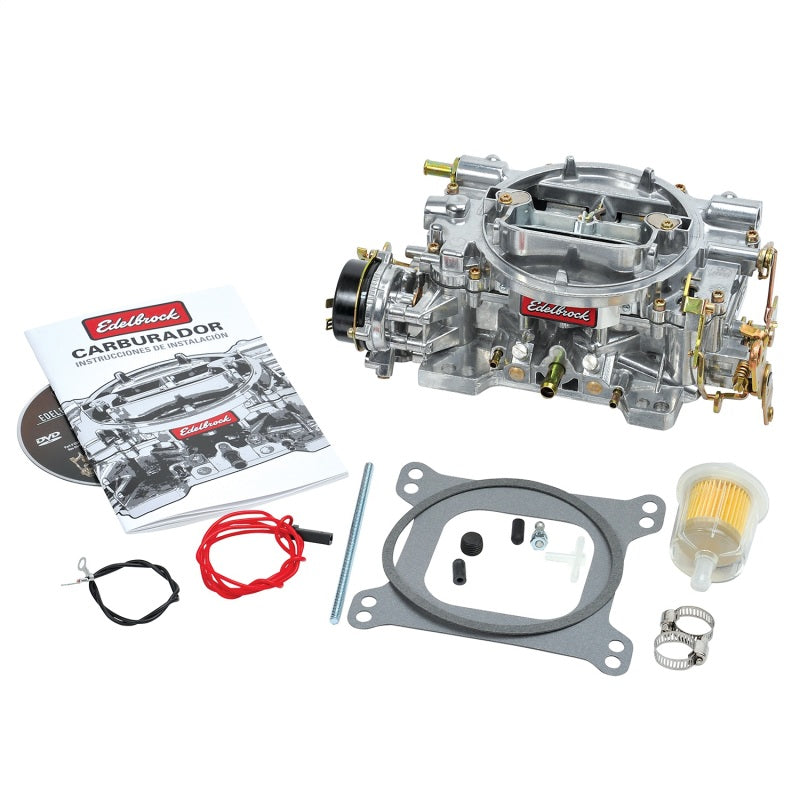

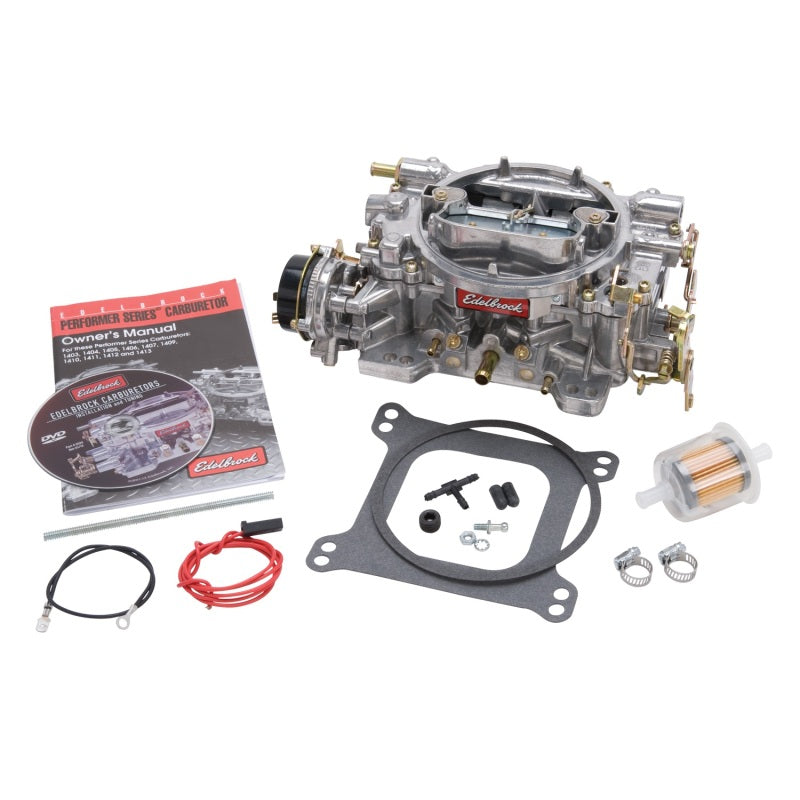

Included Components

1x Square-Bore Base Gasket
1x Air Horn Gasket
1x Air Cleaner Stud
1x Red Choke Positive Wire (electric choke)
1x Black Choke Ground Wire (electric choke)
Vacuum caps / plugs as required
Installation instructions & warranty card

Product Description

The Edelbrock 1406 is a 600 CFM, 4-barrel square-bore carburetor designed for street-driven small-block and small-displacement big-block V8 gasoline engines. Its all-aluminum two-piece body resists warping and reduces weight, while the electric choke improves cold-start drivability. The rear-pivot float design and tub-style fuel bowls offer reliability, easier maintenance, and fewer leak paths.

Featuring metering rods instead of traditional power valves, the 1406 provides smoother throttle response, stable tuning, and easy jet adjustments. With both timed and full vacuum ports, it is compatible with vacuum-advance distributors. Factory-installed jets and rods provide a balanced tune suitable for street applications. Because this is a universal-fit carburetor, suitability depends on intake manifold type, engine displacement, and fuel system configuration.
