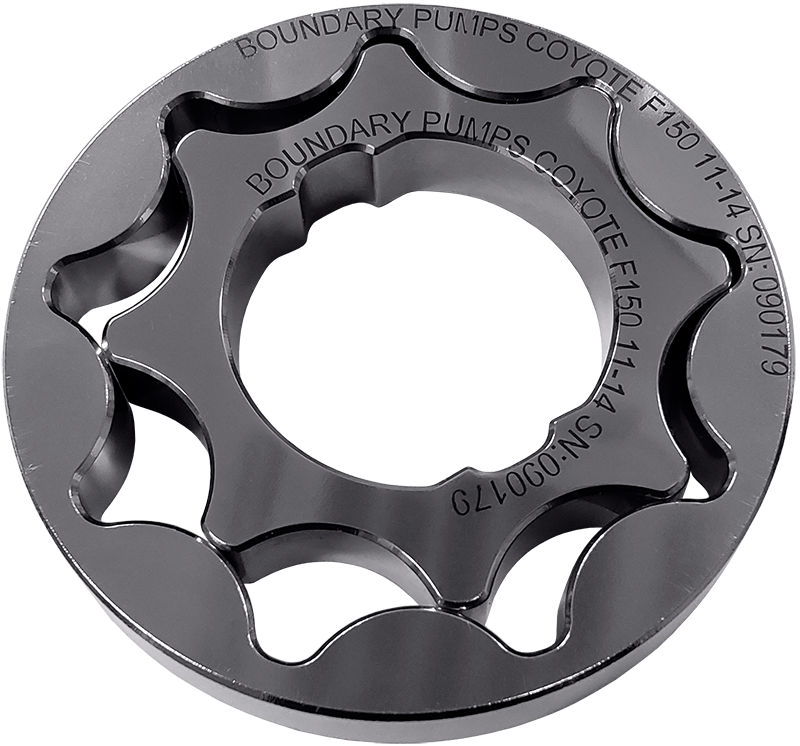

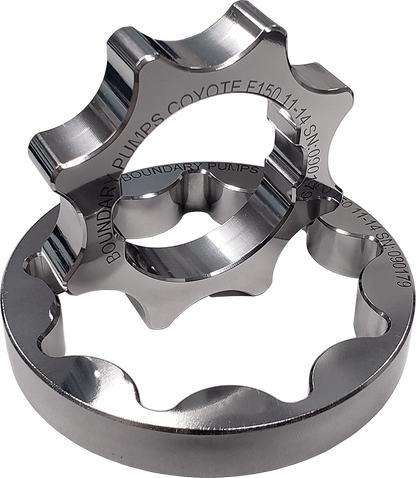

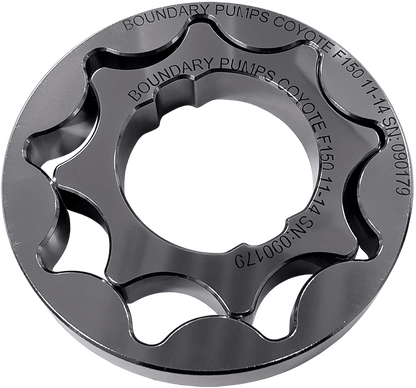

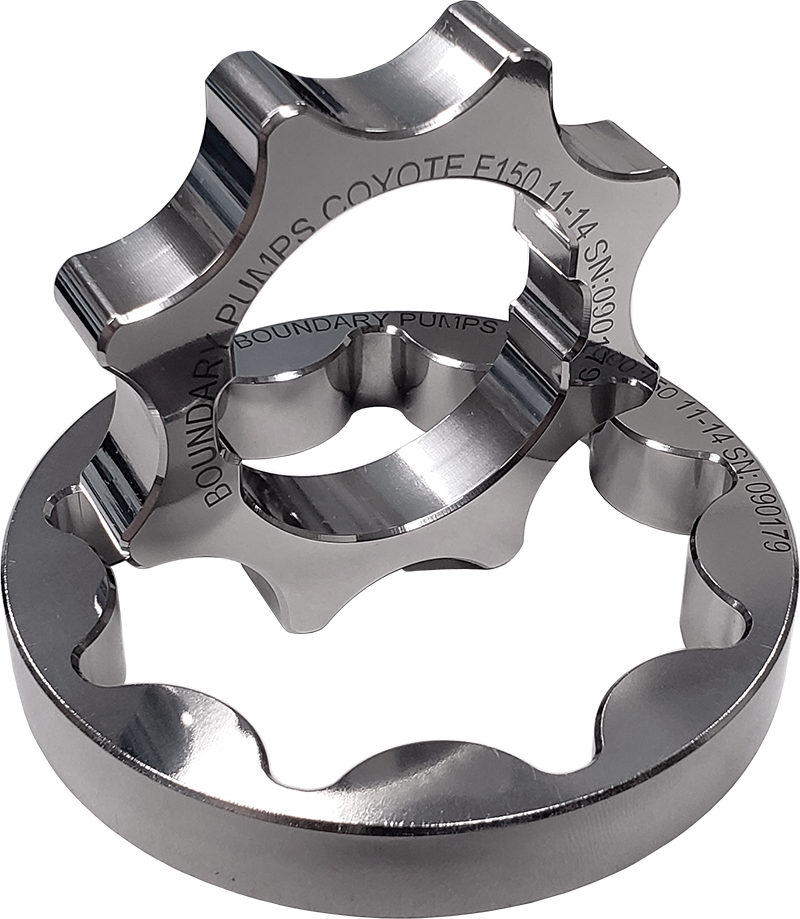

Boundary CM-OPG-F150 Billet Oil Pump Gear for 2011-2014 & 2018-2020 Ford F-150 5

Vehicle Fitment

• 2011-2014 Ford F-150 5.0L V8
• 2018-2020 Ford F-150 5.0L V8

Features

• Precision CNC-machined from heat-treated 4140 chromoly billet steel
• Mirror-finished and surface hardened for reduced friction and increased durability
• Race-inspired gerotor design optimized for maximum oil flow and strength
• Matched inner and outer gears for precise fitment and performance
• Hand, machine, and hardness inspected with a detailed blueprinting report
• Proven stability in applications exceeding 2,000 whp and 9,000 RPM
• Compatible with both naturally aspirated and forced induction setups
• Offered with optional MartenWear surface treatment for enhanced wear resistance

Specifications

• Material: 4140 chromoly billet steel
• Finish: Mirror polished with optional MartenWear treatment
• Design: Gerotor-style gears
• Compatibility: 2011-2014 and 2018-2020 Ford F-150 5.0L V8
• Torque Capacity: Suitable for applications up to 2,000 whp and 9,000 RPM

Included Components

• 1x Billet oil pump gear (CM-OPG-F150)
• Optional: MartenWear surface treatment

Product Description

The Boundary CM-OPG-F150 billet oil pump gear is engineered to replace the factory powdered metal gears in the 2011-2014 and 2018-2020 Ford F-150 5.0L Coyote V8 engines. This upgrade is essential for high-performance applications, especially when adding forced induction systems such as superchargers or turbochargers. The billet construction ensures superior strength and reliability under increased stresses, temperatures, and RPMs.

Each gear is precision CNC-machined from heat-treated 4140 chromoly billet steel, featuring a race-inspired gerotor design optimized for maximum oil flow and strength. The gears are mirror-finished and surface hardened to reduce friction and enhance durability. Additionally, each set undergoes rigorous hand, machine, and hardness inspections, accompanied by a detailed blueprinting report.

For those seeking enhanced wear resistance, the optional MartenWear surface treatment offers superior protection against wear and fatigue. Whether you're building a high-horsepower street machine or a dedicated race vehicle, the Boundary CM-OPG-F150 billet oil pump gear provides the reliability and performance needed to keep your engine running smoothly under demanding conditions.
