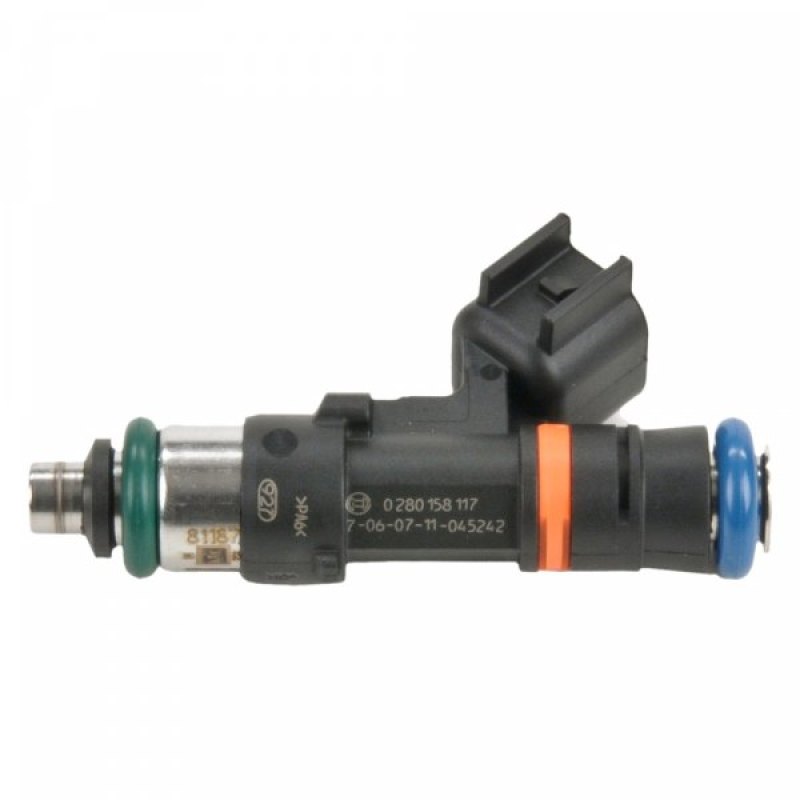

Bosch 280158117 EV14 550cc 52lb/hr High Impedance Fuel Injector E85 Compatible

Vehicle Fitment

• Universal - compatible with any top-feed fuel injection system using EV6/EV14 (USCAR) connectors and 14mm O-ring seats.
• Known compatible applications include: 2007-2014 Ford Mustang Shelby GT500 (5.4L V8 Supercharged), 2003-2005 Dodge Neon SRT-4, 2008-2009 Dodge Caliber SRT-4, 2005-2014 Chrysler 300 SRT-8, 2006-2016 Dodge Charger SRT-8, 2008-2016 Dodge Challenger SRT-8, 2005-2008 Dodge Magnum SRT-8, 2006-2016 Jeep Grand Cherokee SRT-8, 2005-2013 Chevrolet Corvette Z06 (LS2), 2003-2008 Nissan 350Z, 2003-2008 Infiniti G35, 2000-2006 Nissan Sentra SE-R Spec V, 2002-2009 Acura RSX, 2004-2010 Acura TSX, 2002-2005 Honda Civic Si, 2006-2011 Honda Civic, 2006-2009 Honda S2000, 2004-2011 Volvo S40/V50, 2007-2011 Volvo C30, 2006-2011 Volvo C70, 2001-2006 BMW M3.

Fitment Notes

• Universal top-feed injector - confirm O-ring seat diameter (14mm top and bottom) and connector type (EV6/EV14/USCAR) before installation.
• ECU recalibration or tuning is required when upgrading from smaller OEM injectors to ensure accurate fueling at all load points.
• High impedance (12 ohm) - compatible with most factory and aftermarket ECUs without a resistor box or inline resistors.
• Adapters may be required for applications using shorter or longer fuel rail seats; verify injector length (64.1mm) against application before ordering.

Features

• 550cc/min (52 lb/hr) flow rate at 43.5 PSI provides substantial fuel delivery headroom for turbocharged, supercharged, and high-compression naturally aspirated builds.
• 6-hole multi-orifice disc tip produces a dual cone spray pattern for superior fuel atomization and combustion efficiency across modern multi-valve engines.
• High impedance (saturated) design at 12 ohms ensures direct compatibility with virtually all OEM and aftermarket ECUs without additional hardware.
• Rated for rail pressures up to 100 PSIG and maintains volume consistency to within 1% across the operating range for precise, stable tuning.
• Excellent low pulse width response down to 2ms enables clean idle behavior and smooth part-throttle drivability despite the high flow rating.
• E85 and ethanol compatible - suitable for flex fuel setups, race fuel applications, and standard pump gasoline.
• EV6/EV14 (USCAR) connector is universally used across domestic and import performance platforms, enabling broad ECU and harness compatibility.
• Factory O-rings installed on top and bottom - ready to install straight from the box.

Specifications

• Part Number: 0280158117 (also listed as 280158117)
• Injector Type: EV14 / EV6 (Saturated / High Impedance)
• Flow Rate: 550cc/min @ 43.5 PSI (N-Heptane) / ~520cc/min on gasoline
• Flow Rate (lb/hr): 52 lb/hr @ 43.5 PSI
• Impedance: 12 ohm (High Impedance)
• Connector Type: EV6 / EV14 (USCAR / Minitimer)
• Overall Length: 64.1mm
• O-ring Seat to Seat: 48mm
• O-ring Diameter: 14mm (top and bottom)
• Body Diameter: 16mm
• Spray Pattern: 6-hole multi-orifice dual/split cone
• Max Operating Pressure: 100 PSIG
• Fuel Compatibility: Gasoline, E85, Ethanol, Race Fuel
• Voltage: 10-15V (nominal 13.5V)

Included Components

• 1x Bosch EV14 Fuel Injector (0280158117) with factory-installed O-rings

Product Description

The Bosch 0280158117 is a genuine EV14 high-impedance fuel injector rated at 550cc/min (52 lb/hr) at 43.5 PSI - one of the most widely used high-flow injectors across both domestic and import performance builds. Its 6-hole multi-orifice disc tip produces a precise dual cone spray pattern that delivers finer fuel atomization than single-orifice designs, improving combustion efficiency, idle quality, and throttle response even at elevated flow rates. The 12-ohm high impedance design makes it directly compatible with virtually any factory or aftermarket ECU without resistor boxes or inline resistors.

Originally OEM on the Ford Mustang Shelby GT500 5.4L supercharged V8, the 0280158117 has found widespread use as a performance upgrade across turbocharged four-cylinders, forced induction V8 platforms, and flex fuel applications. Rated to 100 PSIG and compatible with gasoline, E85, and race fuels, it maintains consistent flow to within 1% across the pressure and temperature range. ECU recalibration is required when upgrading from smaller OEM injectors to ensure accurate air-to-fuel ratios at all operating conditions.
