Bosch 0392022002 Electric Auxiliary Water Pump for 2001-07 Ford F-150 Lightning

Vehicle Fitment

• 2001-2004 Ford F-150 Lightning (5.4L V8)
• 2003-2006 Land Rover Range Rover (4.2L V8)
• 2003-2006 Land Rover Range Rover Sport (4.2L V8)
• 2007 Chevrolet Silverado 1500 Hybrid (5.3L V8)
• 2007 GMC Sierra 1500 Hybrid (5.3L V8)
• 2003-2004 Ford Mustang SVT Cobra (4.6L V8)
• 2001-2004 Ford F-150 (5.4L V8)

Features

• OE-quality electric auxiliary water pump
• Designed to circulate coolant in supercharged and hybrid applications
• 12V DC motor with clockwise rotation
• Nominal pressure of 30,000 Pa
• 50W power consumption
• Brush-type DC motor for reliable performance
• Sealed design to protect electronic components
• End-of-line function and leak tested for quality assurance

Specifications

• Voltage: 12V DC
• Motor Type: Brush DC
• Rotation: Clockwise (Right)
• Nominal Pressure: 30,000 Pa
• Power Consumption: 50W
• Weight: 0.6185 kg
• Material: Mixed
• Mounting Bracket Included: No
• Mounting Hardware Included: No
• Inlet/Outlet Port Quantity: 1 each
• Inlet/Outlet Diameter: Not specified

Included Components

• 1x Bosch 0392022002 Electric Auxiliary Water Pump

Product Description

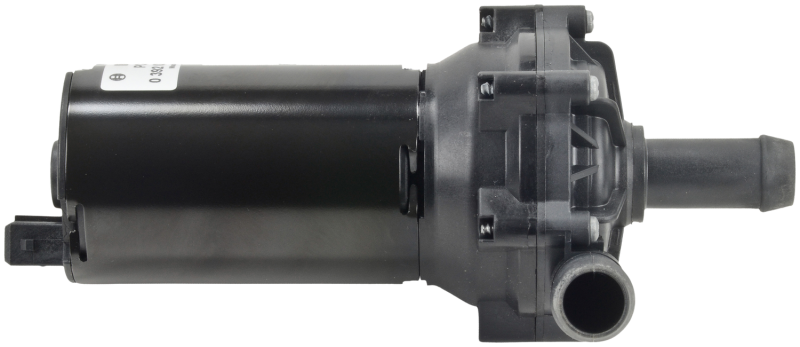

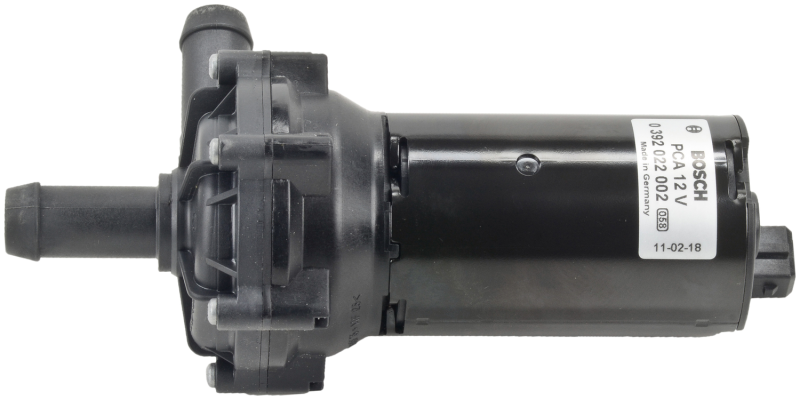

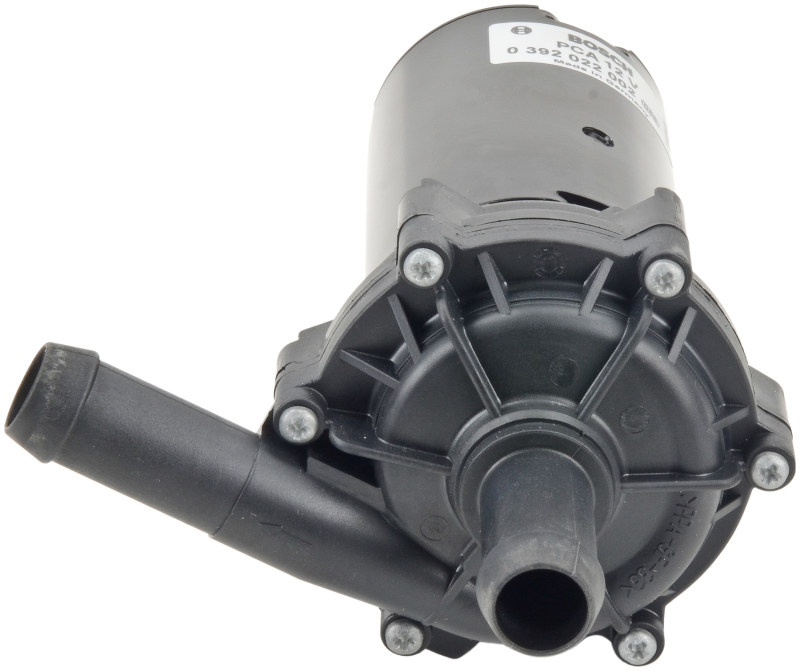

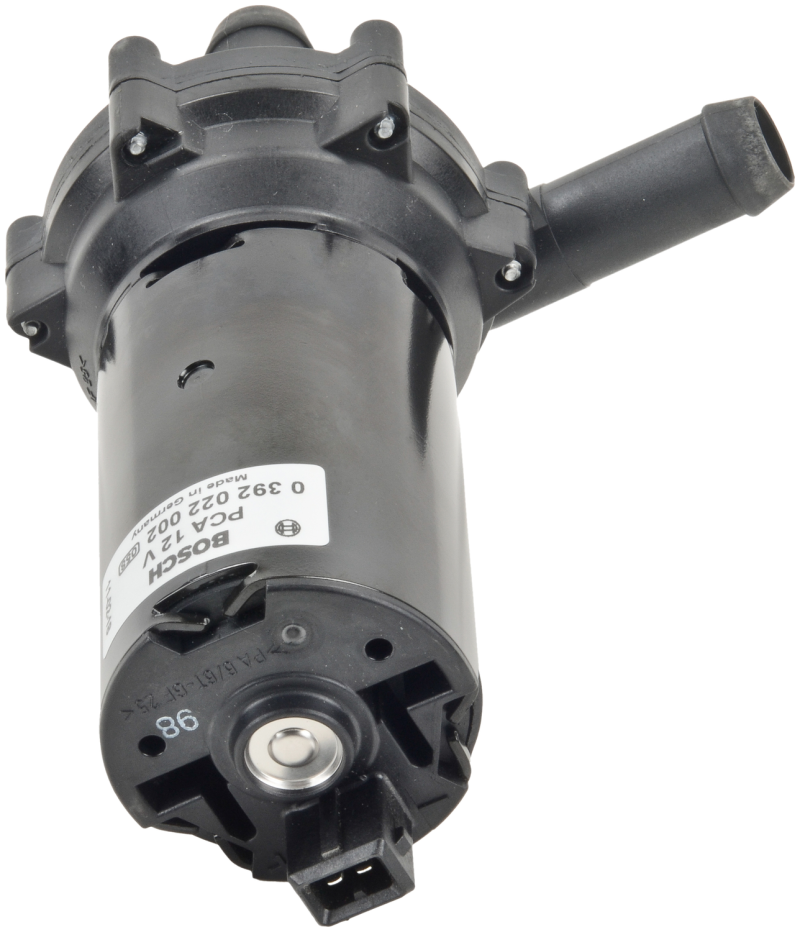

The Bosch 0392022002 Electric Auxiliary Water Pump is engineered to provide reliable coolant circulation in supercharged and hybrid engine applications. Its 12V brush-type DC motor operates with a clockwise rotation and delivers a nominal pressure of 30,000 Pa, ensuring efficient cooling performance.

This pump is designed for specific Ford, Land Rover, and Chevrolet models, including the 2001-2004 Ford F-150 Lightning and 2003-2006 Land Rover Range Rover and Range Rover Sport. It is also compatible with the 2007 Chevrolet Silverado 1500 Hybrid and GMC Sierra 1500 Hybrid.

Installation is straightforward, but it is recommended to retain the original isolator grommet and bracket if they are in good condition. The pump is not supplied with a mounting bracket or hardware, so ensure these components are available before installation.
