Garrett 926432-5001S PowerMax Turbo Kit for 21-25 Bronco / 24-25 Ranger 2.7L

Vehicle Fitment

• 2021-present Ford Bronco 2.7 L EcoBoost V6
• 2024-present Ford Ranger 2.7 L EcoBoost V6 (Lariat, XLT & compatible trims)

Features

• Complete dual turbo upgrade kit - replaces stock turbos with high-flow Garrett PowerMax units
• Includes calibrated electronic actuators for precise boost control
• 41 mm billet compressor wheels for increased airflow and improved spool response
• Larger 0.59 A/R compressor housings to maximize boost potential
• Stainless-steel turbine housings rated for high temperature and durability
• V-band CHRA coupling with optional speed sensor port for monitoring
• Supports up to ~640 HP with proper tuning and supporting modifications
• Bolt-on installation - reuses stock hard-lines and mounting points for easy fitment

Specifications

• Part Number: 926432-5001S

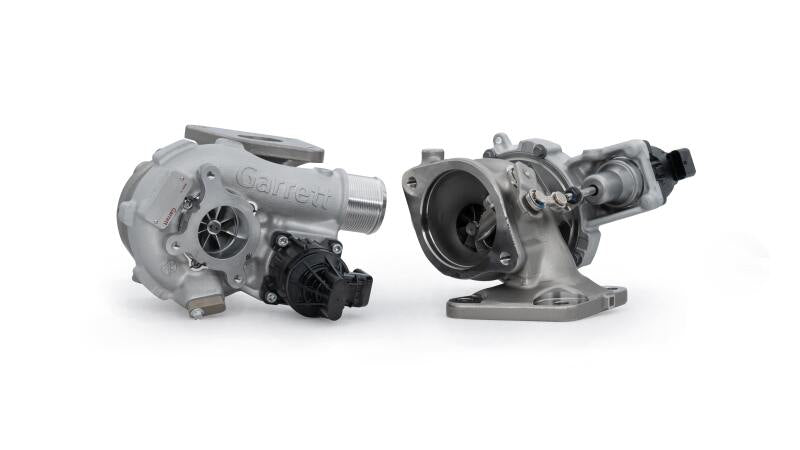

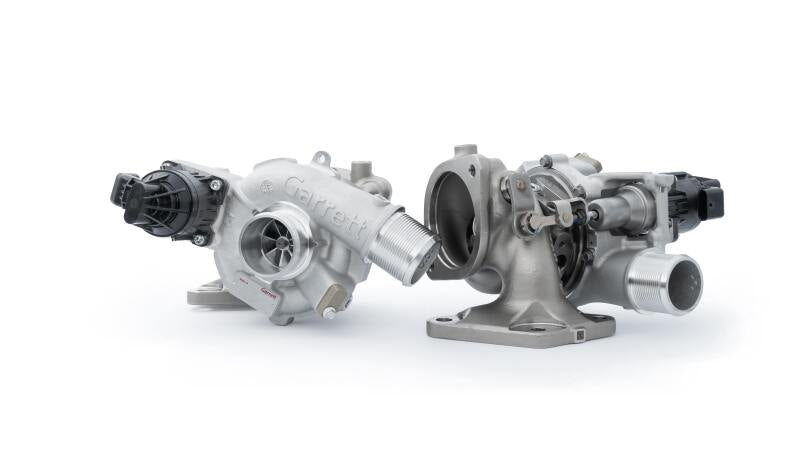

• Turbo Type: Dual Garrett PowerMax turbos (LH & RH)
• Compressor Wheel: 41 mm billet
• Compressor Housing A/R: 0.59
• Turbine Housing: Stainless steel, high-temperature rated
• Actuator: Calibrated electronic actuator included
• Supported Output: Up to ~640 HP
• Installation: Bolt-on, OEM hard-line compatible
• CHRA Coupling: V-band with optional speed sensor port

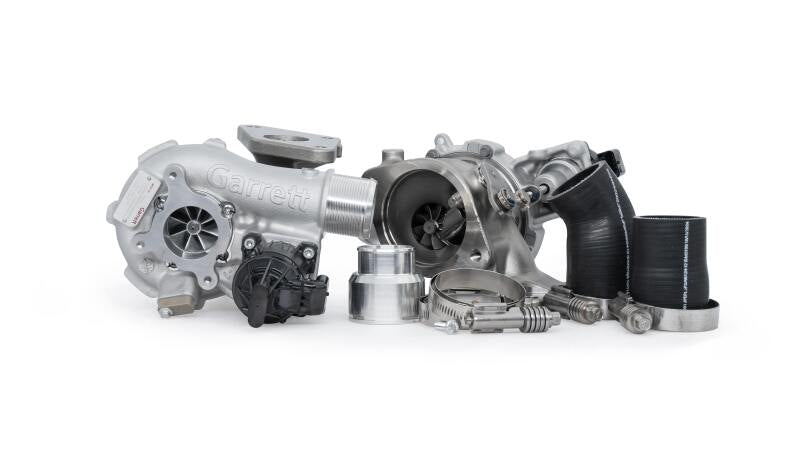

Included Components

• 1x Left-hand turbo assembly (compressor, CHRA, turbine housing, actuator)
• 1x Right-hand turbo assembly (compressor, CHRA, turbine housing, actuator)
• All required clamps, hoses, adapters for direct installation
• V-band coupling hardware, gaskets, and installation hardware

Product Description

The Garrett 926432-5001S PowerMax Turbo Kit is a high-performance, dual turbo upgrade for the 2.7 L EcoBoost V6 in 2021+ Ford Bronco and 2024+ Ranger. Featuring larger 41 mm billet compressor wheels, 0.59 A/R compressor housings, and heat-resistant stainless-steel turbine housings, this kit significantly increases airflow and boost capacity while maintaining OEM-style reliability. Calibrated electronic actuators ensure precise boost management for optimal engine performance.

Installation is straightforward with OEM-compatible mounting points and hard-lines, requiring no cutting or welding. Designed for enthusiasts and tuners seeking substantial power gains - up to ~640 HP - this kit is ideal for street, off-road, or performance applications while retaining factory-style fitment and control. Supporting modifications and proper tuning are recommended for high-power builds to ensure reliability and maximize performance.
