Garrett 740902-0017 GT35R Turbine Housing Kit T4/V-Band 0.82 A/R

Vehicle Fitment

• Universal turbine housing kit - not specific to a particular vehicle
• Designed for use with Garrett GT35R turbocharger assemblies

Features

• High-performance turbine housing for GT35R/GTX35R series
• 0.82 A/R (area/radius) for balanced spool and top-end performance
• T4 inlet flange for flexible exhaust manifold connection
• 3" V-Band outlet flange for secure and leak-resistant exhaust attachment
• Premium Ni-Sil cast construction for heat resistance and durability
• Designed for high-boost and motorsport turbocharger applications
• Enhances exhaust flow and turbo efficiency in custom builds
• Compatible with a variety of aftermarket turbo systems

Specifications

• Brand: Garrett
• Part Number: 740902-0017
• Type: Turbine housing kit (GT35R compatible)
• Series: GT35R / GTX35 series
• Inlet Flange: T4
• Outlet Flange: 3" V-Band
• A/R Ratio: 0.82
• Material: High-silicon cast alloy (Ni-Sil)
• Wastegate: Free float (no internal wastegate port)

Included Components

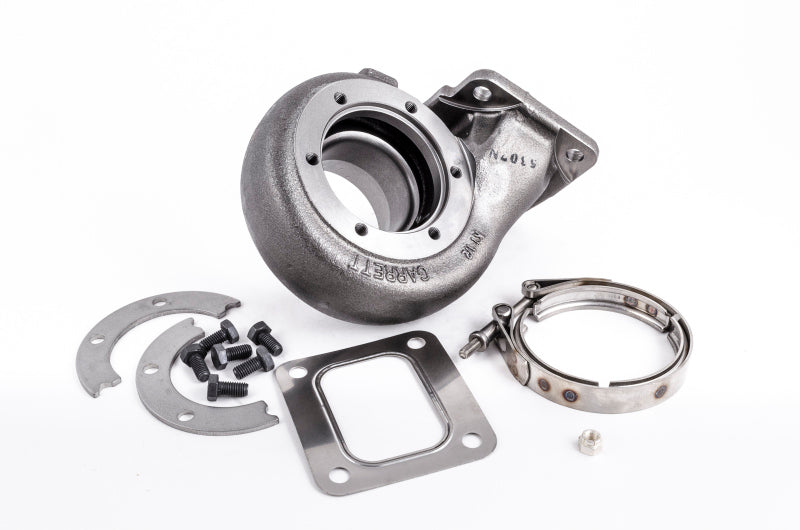

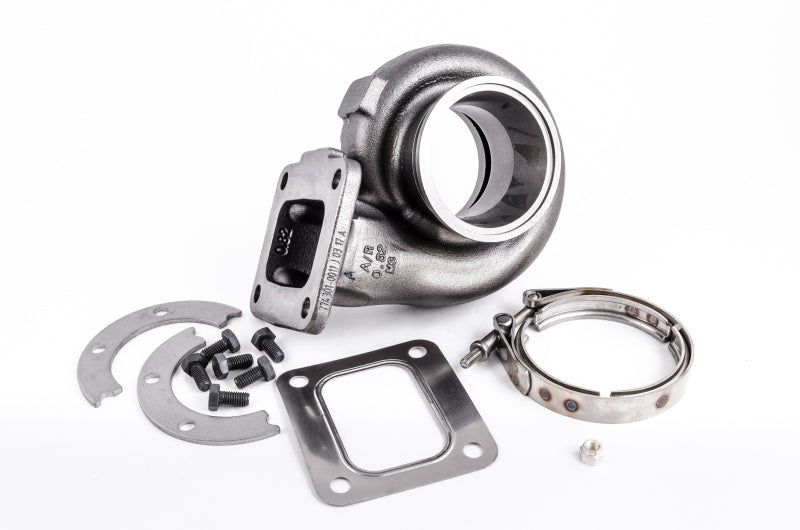

• 1x Garrett 740902-0017 turbine housing (exhaust housing)
• Note: Turbo core (CHRA), compressor section, actuator, clamps, and additional hardware not included

Product Description

The Garrett 740902-0017 GT35R Turbine Housing Kit is a high-quality exhaust housing designed for performance turbocharger assemblies in custom and high-boost applications. With an A/R ratio of 0.82, this turbine housing helps achieve a balanced combination of turbo spool-up response and strong top-end flow, making it suitable for street performance and motorsport engines that use GT35R or compatible GTX35 series turbo cores.

Featuring a T4 inlet flange and a 3" V-Band outlet, this housing allows for flexible integration with custom exhaust manifolds and high-flow exhaust systems. Its Ni-Sil cast construction offers excellent resistance to heat and thermal fatigue under demanding performance conditions. As a universal turbocharger component, the Garrett 740902-0017 housing must be paired with a compatible turbocharger core and additional hardware to complete a working turbo system tailored to your specific engine and power goals.
