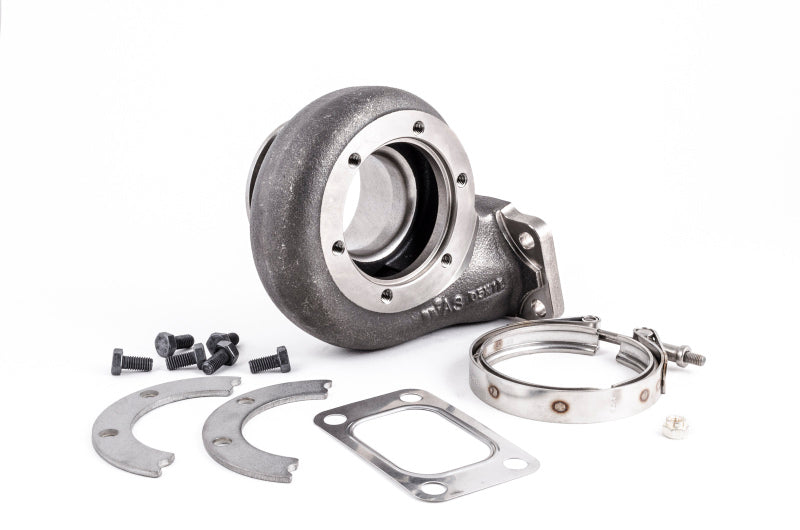

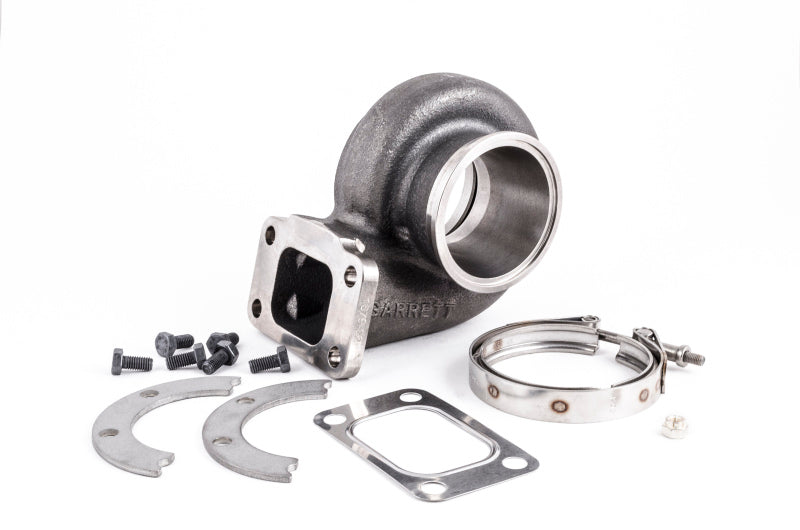

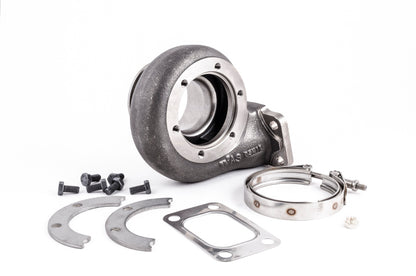

Garrett 740902-0008 GT30R Turbine Housing Kit T3/V-Band 0.82 A/R

Vehicle Fitment

• Universal turbocharger turbine housing - not specific to any vehicle
• Designed as part of Garrett GT30/GTX30 turbocharger assemblies

Features

• Turbo turbine housing for GT30R/GTX30 series turbochargers
• T3 inlet flange for flexible exhaust manifold integration
• 3" V-Band outlet for high-flow exhaust connection
• 0.82 A/R ratio for balanced spool and top-end performance
• Cast in durable Ni-Resist material for heat resistance and longevity
• Free-float design without an internal wastegate
• Suitable for use with a wide range of Garrett GT/GTX super cores
• Frequently used in custom and high-boost turbo builds

Specifications

• Brand: Garrett
• Part Number: 740902-0008
• Component Type: Turbine housing kit (exhaust housing)
• Turbine Series: GT30R/GTX30 compatible
• Inlet Flange: T3 standard
• Outlet Flange: 3" V-Band
• A/R Ratio: 0.82
• Wastegate: Free float (no built-in actuator)
• Material: Ni-Resist cast iron/turbine housing alloy

Included Components

• 1x Garrett 740902-0008 turbine housing (exhaust housing)
• Note: Turbo super core, CHRA, actuator, clamps, and additional hardware NOT included

Product Description

The Garrett 740902-0008 Turbine Housing Kit is engineered for high-performance turbocharger applications using the GT30R and GTX30 series. Featuring a cast Ni-Resist construction for excellent heat resistance and durability, this turbine housing offers a T3-standard inlet flange and a 3" V-Band outlet for flexible exhaust routing and high exhaust flow capacity. The 0.82 A/R ratio helps balance quick turbine response with strong top-end power characteristics, making it well-suited for custom turbo builds and high-boost applications.

This turbine housing is a universal component - it does not bolt directly to any specific year/make/model vehicle on its own but is designed as part of turbine assemblies in aftermarket turbocharger systems. Typically paired with compatible Garrett GT30R/GTX30 super cores and custom exhaust manifolds, it allows builders and tuners to optimize their turbo setups for balance between spool-up and peak performance. Because this kit includes only the turbine housing, the turbo core (CHRA), external wastegate hardware, and other mounting hardware must be sourced separately to complete a working turbocharger assembly.
