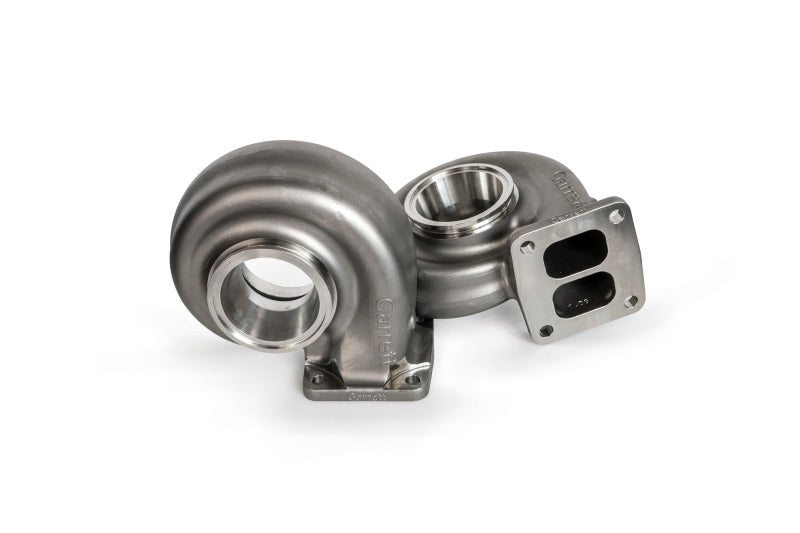

Garrett 740902-0092 GTX3582R Turbine Housing Kit T4 V-Band 0.92 A/R

Vehicle Fitment

• Universal turbocharger turbine housing - not specific to any vehicle
• Designed for use with Garrett GTX3582R and compatible turbocharger cores

Features

• Turbine housing kit for GTX3582R series turbochargers
• 0.92 A/R ratio for improved spool and mid-range flow
• T4 inlet flange for exhaust manifold flexibility
• V-Band outlet for secure exhaust connection
• Heavy-duty cast alloy construction for heat resistance
• Free-float design - no internal wastegate
• Supports external wastegate configurations
• Ideal for custom and high-boost performance builds

Specifications

• Brand: Garrett
• Part Number: 740902-0092
• Component Type: Turbocharger turbine housing kit
• Compatible Turbo Series: GTX3582R and similar cores
• A/R Ratio: 0.92
• Inlet Flange: T4 standard flange
• Outlet Connection: V-Band
• Wastegate: Free-float (external wastegate compatible)
• Material: High-strength cast alloy

Included Components

• 1x Garrett 740902-0092 turbine housing (exhaust housing)
• Note: Turbo core (CHRA), compressor housing, actuator, clamps, and additional hardware not included

Product Description

The Garrett 740902-0092 GTX3582R Turbine Housing Kit is a high-performance exhaust housing designed for custom and high-boost turbocharger systems built around the GTX3582R and compatible cores. With a 0.92 A/R ratio, this turbine housing delivers a balance of quicker turbine response and strong mid-range airflow, making it ideal for engines where both responsiveness and sustained power are desired.

Equipped with a T4 inlet flange and a V-Band outlet connection, this housing allows flexibility in manifold and exhaust design while providing a secure and leak-resistant exhaust path. Its rugged cast alloy construction ensures durability under high heat and pressure conditions typical of performance turbo applications. As a **universal component**, this housing must be integrated with a compatible turbo core (CHRA), external wastegate components if needed, and the necessary piping and hardware to complete a full turbocharger assembly tailored to your specific performance goals.
