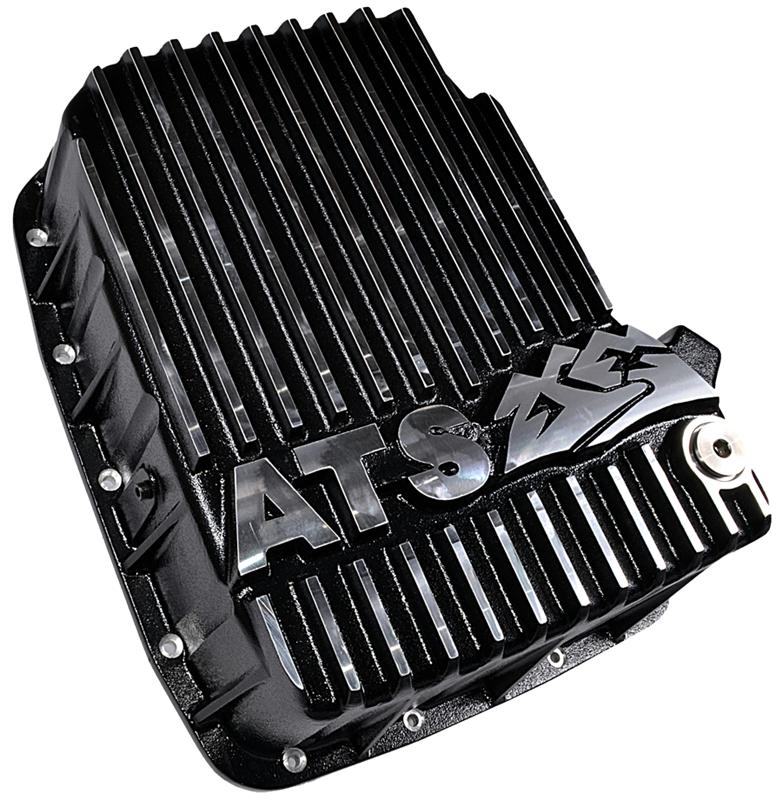

ATS Diesel 301-900-3104 Deep Aluminum Transmission Pan E4OD 4R100 5R110

Regular price: $377.95
Regular price
Sale price: $377.95

Shipping calculated at checkout.

In Stock: 4

Orders by 1pm PST ship same business day

Free Shipping w/3-4 Day Delivery

Authorized Dealer

Fitment Guarantee

30-Day Hassle Free Returns

Product Specification:

SKU:ATS301-900-3104

MPN: 301-900-3104

UPC: 3019003104

Weight: 23.3 lb

Inventory: 4

Type: Transmission Pans

Vehicle Fitment

1989-2003 Ford F-250 Super Duty (7.3L V8 Power Stroke Diesel, E4OD / 4R100 Transmission)
1999-2007 Ford F-350 Super Duty (7.3L / 6.0L V8 Power Stroke Diesel, E4OD / 4R100 / 5R110 Transmission)
1999-2010 Ford F-250 Super Duty (6.0L V8 Power Stroke Diesel, 4R100 / 5R110 Transmission)
1999-2010 Ford F-350 Super Duty (6.0L V8 Power Stroke Diesel, 4R100 / 5R110 Transmission)
1999-2010 Ford F-450 Super Duty (7.3L / 6.0L V8 Power Stroke Diesel, E4OD / 4R100 / 5R110 Transmission)
1999-2010 Ford F-550 Super Duty (7.3L / 6.0L V8 Power Stroke Diesel, E4OD / 4R100 / 5R110 Transmission)

Fitment Notes

Compatible transmissions: E4OD, 4R100, and 5R110
5R110W applications must use the 6.0L 5R110 transmission filter - the factory 7.3L filter will not work with this pan's added depth
Filter extension is NOT included - see 5R110W filter note above
Verify clearance with aftermarket skid plates or lift kits before installation
Any modification to the pan or contact with other vehicle components voids the warranty

Features

Adds 5 quarts of additional transmission fluid capacity over stock - significantly reduces operating temperatures
Heavy-duty aluminum construction dissipates heat faster than the factory steel pan
Machined cooling fins and ATS logo increase surface area for maximum heat rejection
Pre-tapped 1/8" NPT bung for a transmission temperature sensor - no drilling required
Magnetic 1" drain plug captures metallic debris to protect transmission internals
Black powder-coat finish for corrosion and rust resistance
Reinforced gasket flange resists warping and prevents leaks under extreme conditions
Direct bolt-on installation - no modifications required

Specifications

Material: Cast aluminum
Finish: Black powder coat with machined fins and ATS logo
Style: Deep pan
Overall Depth: 6.500 in. (6-1/8" inside depth)
Fluid Capacity Increase: +5 quarts over stock
Temperature Sensor Bung: 1/8" NPT (pre-tapped)
Drain Plug: 1" magnetic
Compatible Transmissions: E4OD / 4R100 / 5R110
Shipping Weight: 24 lbs
Warranty: 5 Year / 500,000 Miles

Included Components

1x ATS Deep Aluminum Transmission Pan (Black Powder Coat)
1x Pan Gasket
20x Stainless Steel Cap Screws (M8-1.25 x 25mm)
20x 8mm Washers
1x Magnetic 1" Drain Plug
1x Drain Plug O-Ring
1x 1/8" Pipe Plug
1x Installation Manual

Product Description

The ATS Diesel 301-900-3104 Deep Aluminum Transmission Pan is a direct bolt-on upgrade for 1989-2010 Ford F-Series Super Duty trucks equipped with E4OD, 4R100, or 5R110 transmissions behind the 7.3L or 6.0L Power Stroke diesel. Adding 5 extra quarts of fluid capacity over the factory steel pan, it dramatically lowers transmission operating temperatures - the primary cause of failure in these transmissions under heavy towing, hauling, and hard-use conditions.

Cast from heavy-duty aluminum with machined cooling fins, the pan sheds heat far more efficiently than stock. A pre-tapped 1/8" NPT sensor bung allows easy installation of a transmission temperature gauge for real-time monitoring, while the magnetic drain plug captures metallic wear particles to protect internal components. Everything needed for installation is included, making this a straightforward upgrade for any Powerstroke owner serious about extending transmission life.
