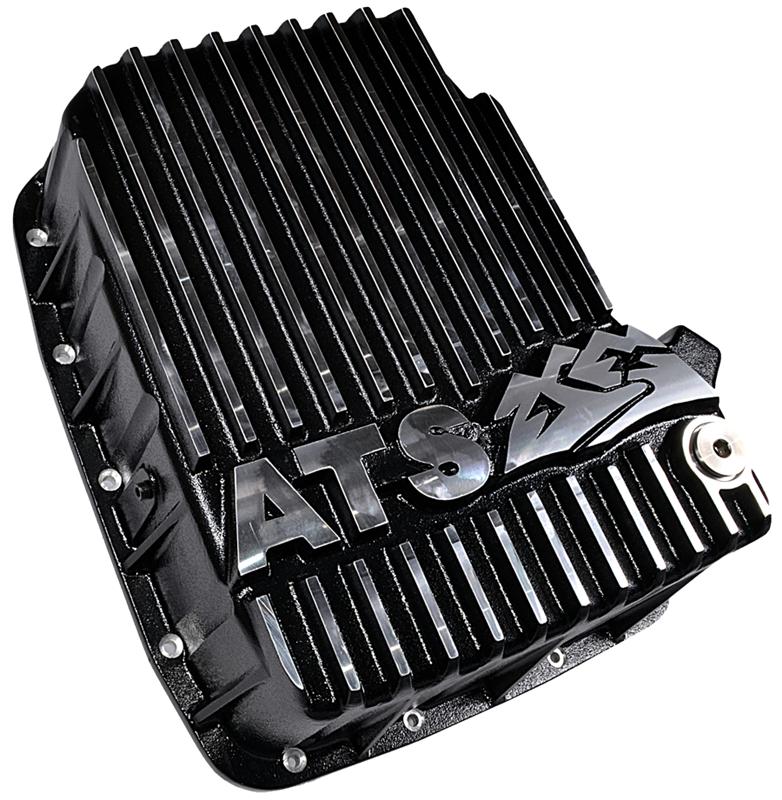

ATS Diesel 301-900-2116 Deep Aluminum Transmission Pan 47RE 48RE for 90-07 Dodge

Vehicle Fitment

• 1990-2007 Dodge Ram 2500 (5.9L I6 12V / 24V / Common Rail Cummins, 46RE / 46RH / 47RE / 47RH / 48RE Transmission)
• 1990-2007 Dodge Ram 3500 (5.9L I6 12V / 24V / Common Rail Cummins, 46RE / 46RH / 47RE / 47RH / 48RE Transmission)

Fitment Notes

• Compatible transmissions: A618 / 727 / 46RE / 46RH / 47RE / 47RH / 48RE
• Covers all 5.9L Cummins variants - 12-Valve (1990-Early 1998), 24-Valve (1998.5-2002), and Common Rail (2003-2007)
• Verify clearance with aftermarket skid plates or lift kits before installation - deep pan may contact other components
• Any modification to the pan or contact with other vehicle components will void the warranty

Features

• Adds 5 quarts of additional transmission fluid capacity over stock - significantly reduces operating temperatures
• Heavy-duty aluminum construction dissipates heat faster than the factory steel pan
• Machined cooling fins and ATS logo increase surface area for maximum heat rejection
• Pre-tapped for a transmission temperature sensor - no drilling required
• Magnetic 1" drain plug captures metallic debris to protect transmission internals
• Black powder-coat finish for corrosion and rust resistance
• Includes filter extension for proper filter-to-pan clearance with the added depth
• Direct bolt-on installation - no modifications required

Specifications

• Material: Heavy-duty aluminum
• Finish: Black powder coat with machined fins and ATS logo
• Style: Deep pan
• Depth: 6.000 in.
• Fluid Capacity Increase: +5 quarts over stock
• Drain Plug: 1" magnetic
• Temperature Sensor Port: Pre-tapped (included)
• Compatible Transmissions: A618 / 727 / 46RE / 46RH / 47RE / 47RH / 48RE
• Shipping Weight: 20 lbs

Included Components

• 1x ATS Deep Aluminum Transmission Pan (Black Powder Coat)
• 1x Magnetic 1" Drain Plug
• 1x Filter Extension
• 1x Pan Gasket
• 1x Hardware Kit (stainless steel cap screws)

Product Description

The ATS Diesel 301-900-2116 Deep Aluminum Transmission Pan is a direct bolt-on upgrade for 1990-2007 Dodge Ram 2500/3500 trucks equipped with the 46RE, 46RH, 47RE, 47RH, or 48RE automatic transmission behind the 5.9L Cummins. By adding 5 quarts of fluid capacity over stock, the pan dramatically lowers transmission operating temperatures - heat is the primary cause of transmission failure in these trucks, especially under towing and heavy-load conditions.

Cast from heavy-duty aluminum with machined cooling fins, the pan sheds heat far more efficiently than the stock steel unit. A pre-tapped temperature sensor port allows easy monitoring, while the magnetic 1" drain plug captures metallic wear particles to protect internal components. Everything needed for installation is included, making this a straightforward, high-value upgrade for any Cummins owner looking to extend transmission life.
