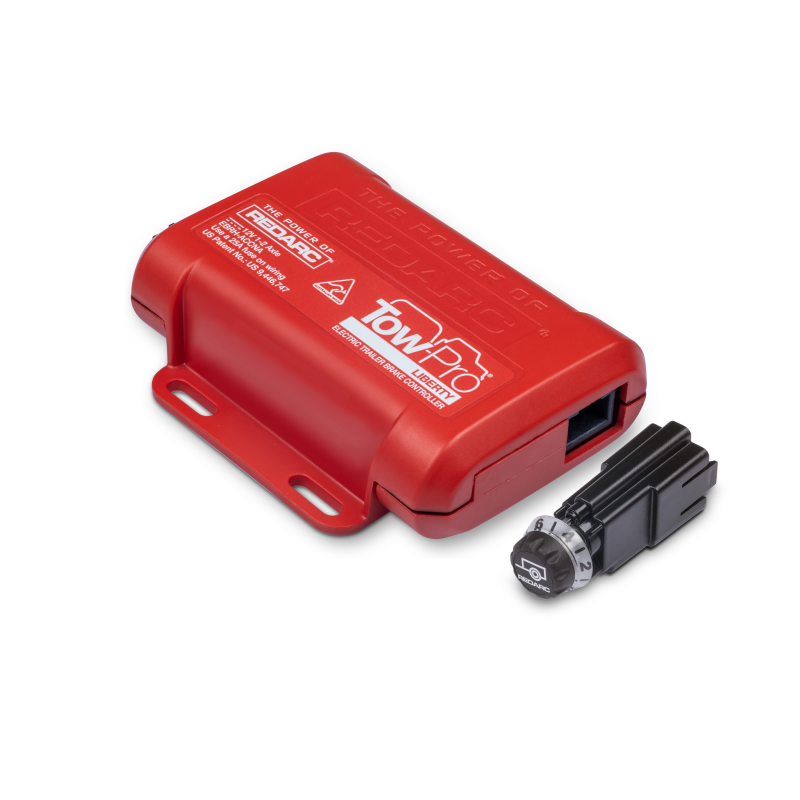

REDARC EBRH-ACCNA Tow-Pro Liberty Brake Controller, 12V, Inertia Sensing

Vehicle Fitment

• Universal fit for 12V vehicles towing trailers with 1-2 axles

Features

• Proportional braking with inertia-sensing for smooth, responsive trailer braking
• Active calibration allows setup with or without a trailer connected
• 3-axis accelerometer enables mounting in any orientation
• Compact remote head for discreet dash installation
• Compatible with both electric and electric-over-hydraulic trailer brakes
• Manual override function via dash-mounted remote head
• Designed and manufactured in Australia

Specifications

• Part Number: EBRH-ACCNA
• Input Voltage: 12V nominal
• Output Voltage: 9V - 16V
• Maximum Rated Current: 18A
• Standby Current Draw: <5mA
• Weight: 7 oz (0.44 lbs)
• Dimensions: 6.7" x 6.3" x 2.2"
• Warranty: 2 Years

Included Components

• Main control unit
• Dash-mounted remote head
• Mounting hardware
• Installation instructions

Product Description

The REDARC EBRH-ACCNA Tow-Pro Liberty Electric Brake Controller offers a seamless towing experience with its advanced proportional braking system. Utilizing a 3-axis accelerometer, it ensures smooth and responsive braking by matching the trailer's braking force to the towing vehicle's deceleration. Its compact design allows the main unit to be mounted in any orientation, while the dash-mounted remote head provides easy access without cluttering the dashboard. Compatible with both electric and electric-over-hydraulic brakes, the Tow-Pro Liberty is ideal for 12V vehicles towing trailers with up to 2 axles. Designed and manufactured in Australia, it combines reliability with ease of installation, making it a top choice for everyday towing needs.
