Carli CS-DATB-1419 Adjustable Track Bar for 14-25 Ram 2500/3500 4WD 0-3" Lift

Vehicle Fitment

• 2014-2025 Ram 2500 (4WD, All Trims, 6.7L Cummins)
• 2013-2025 Ram 3500 (4WD, All Trims, 6.7L Cummins)

Features

• Adjustable design allows precise axle centering for 0-3" front lift applications
• Constructed from 1.5" x 0.375" wall DOM Chromoly tubing for superior strength
• Features Carli's proprietary CUB Frame Joint combined with 7/8" FK Heim Joint to dampen vibrations
• Improves steering feel and reduces front-end wandering
• Fully rebuildable design extends service life beyond factory components

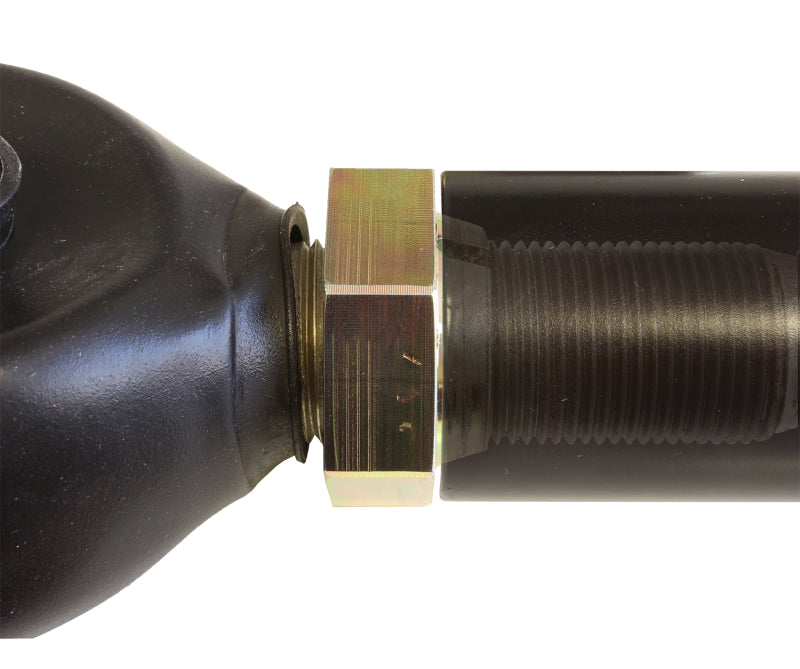

• Carli's Jammit nut provides 100% more surface area than standard jam nuts for secure adjustments
• Engineered to minimize deflection under heavy loads and off-road conditions

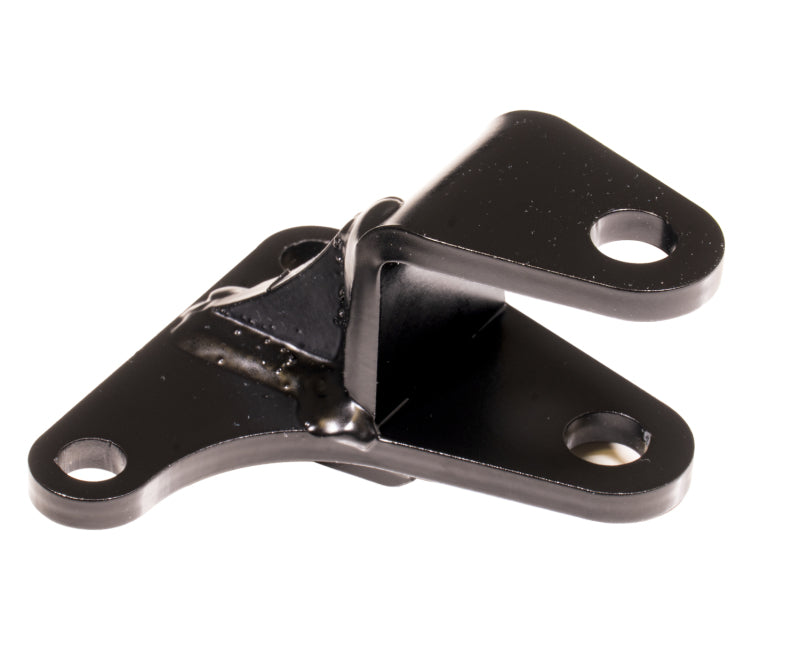

• Includes steering stabilizer relocation bracket for proper clearance

Specifications

• Part Number: CS-DATB-1419
• Material: 1.5" x 0.375" wall DOM Chromoly steel
• Lift Compatibility: 0-3" front suspension lift

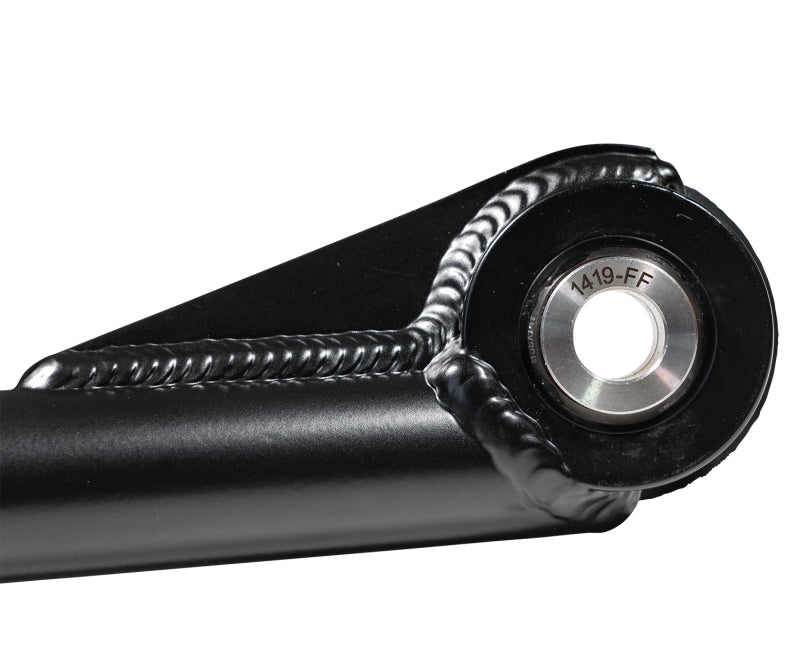

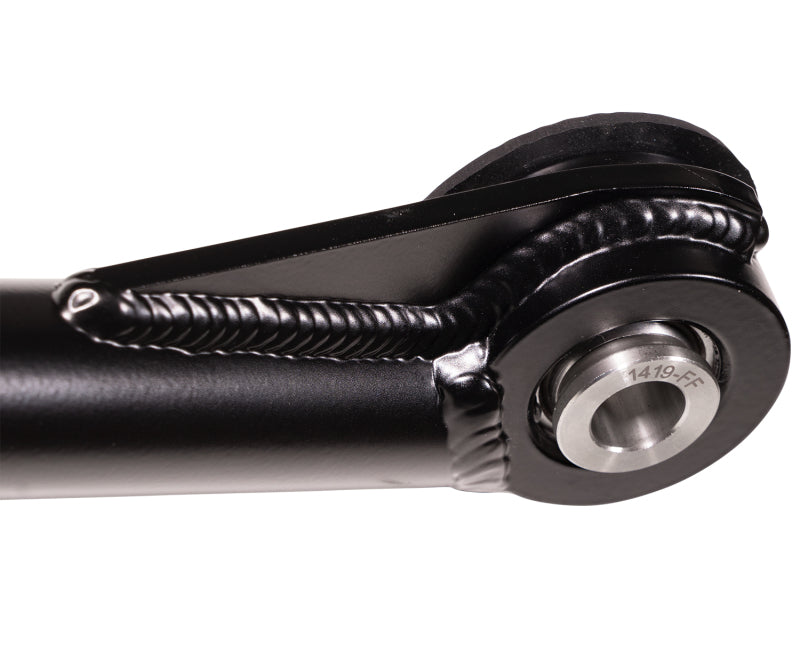

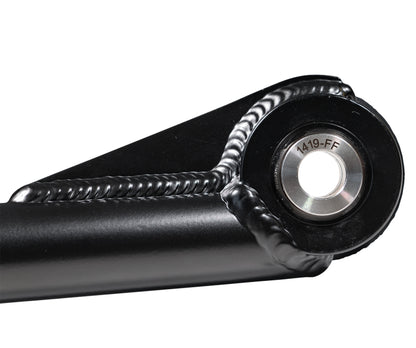

• Frame Joint: Carli CUB Joint (7/8" FK Uniball encapsulated in custom-molded bushings)

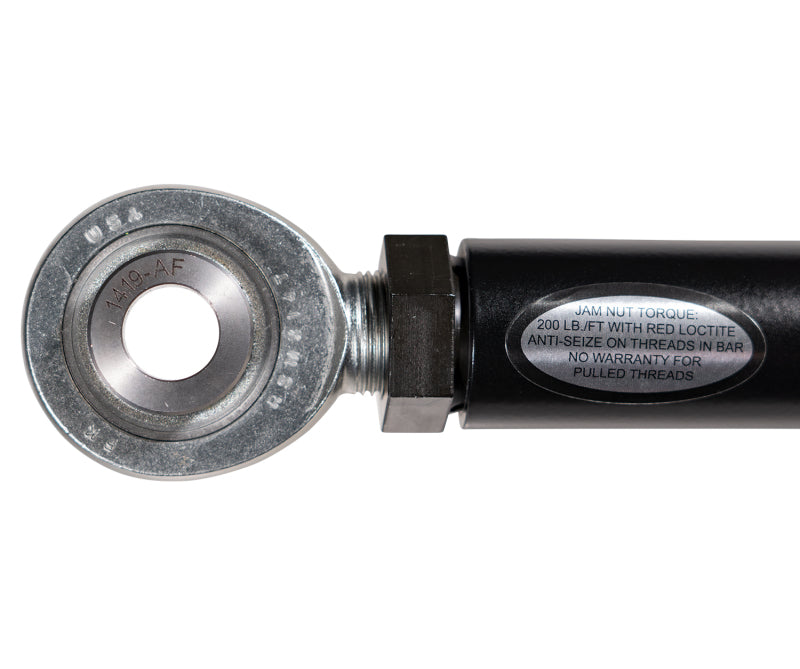

• Axle Joint: 7/8" FK Heim Joint with 1" shank
• Adjustability: Requires removal for adjustment; not adjustable on-vehicle
• Weight: Approximately 18 lbs
• Finish: Black powder coat for corrosion resistance

Included Components

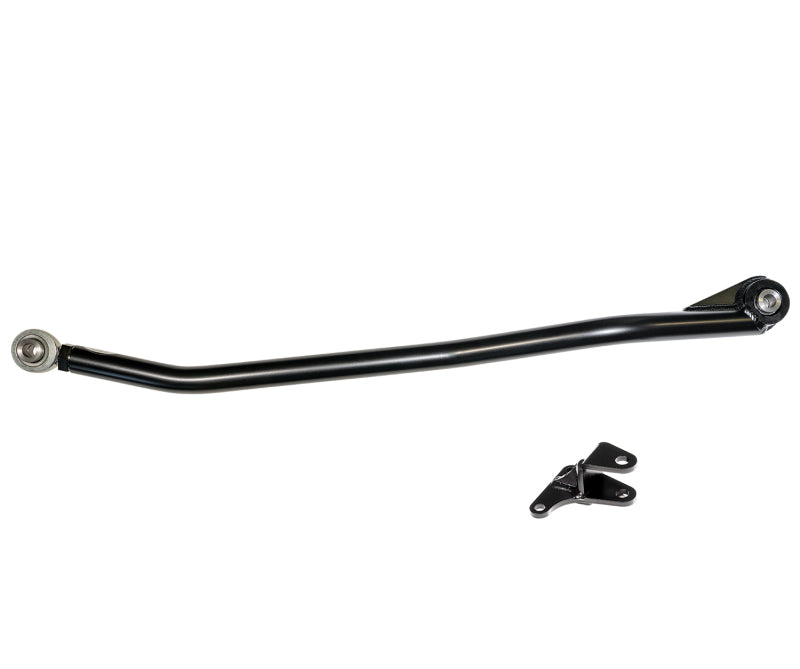

• Carli CS-DATB-1419 Adjustable Track Bar
• Jammit nut for secure adjustment locking
• Steering stabilizer relocation bracket
• Installation hardware and instructions

Product Description

The Carli CS-DATB-1419 Adjustable Track Bar is engineered to enhance the steering precision and front-end stability of your Ram 2500 or 3500 4WD truck. Specifically designed for vehicles with 0-3 inches of front suspension lift, this track bar allows for accurate axle centering, restoring proper suspension geometry and eliminating issues such as steering wander and the notorious "death wobble."

Constructed from robust 1.5" x 0.375" wall DOM Chromoly steel, the CS-DATB-1419 offers exceptional strength and durability. The integration of Carli's proprietary CUB Frame Joint with a 7/8" FK Heim Joint effectively dampens vibrations, resulting in a tighter and more controlled steering feel. While adjustments require removal from the vehicle, the track bar's fully rebuildable design ensures a long service life, making it a reliable upgrade over factory components. Additionally, the included steering stabilizer relocation bracket ensures proper clearance, accommodating the extended travel of Carli suspension systems. Proudly made in the USA, this track bar is a testament to Carli's commitment to quality and performance.
