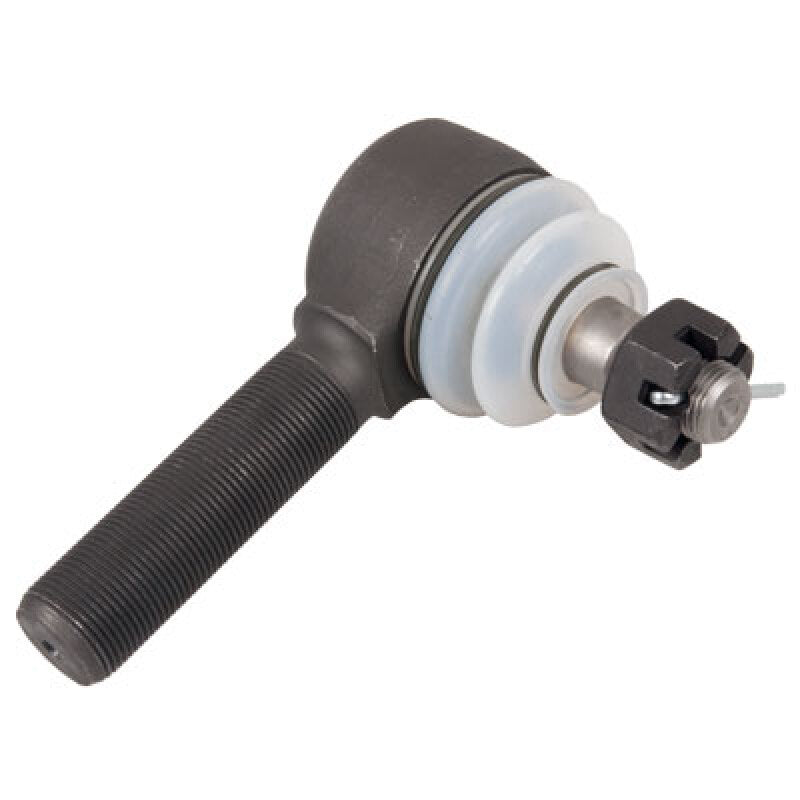

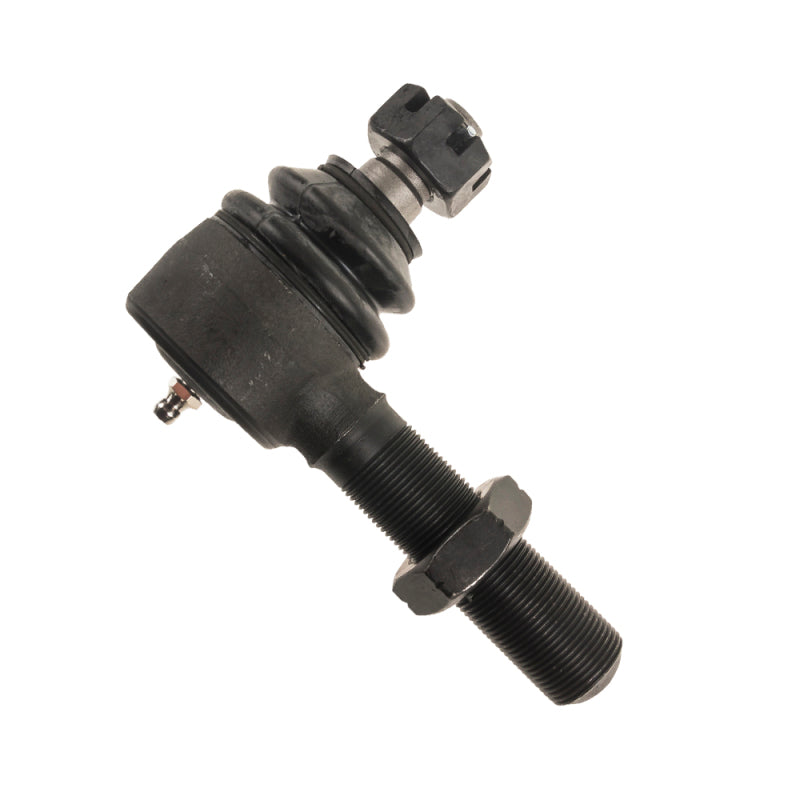

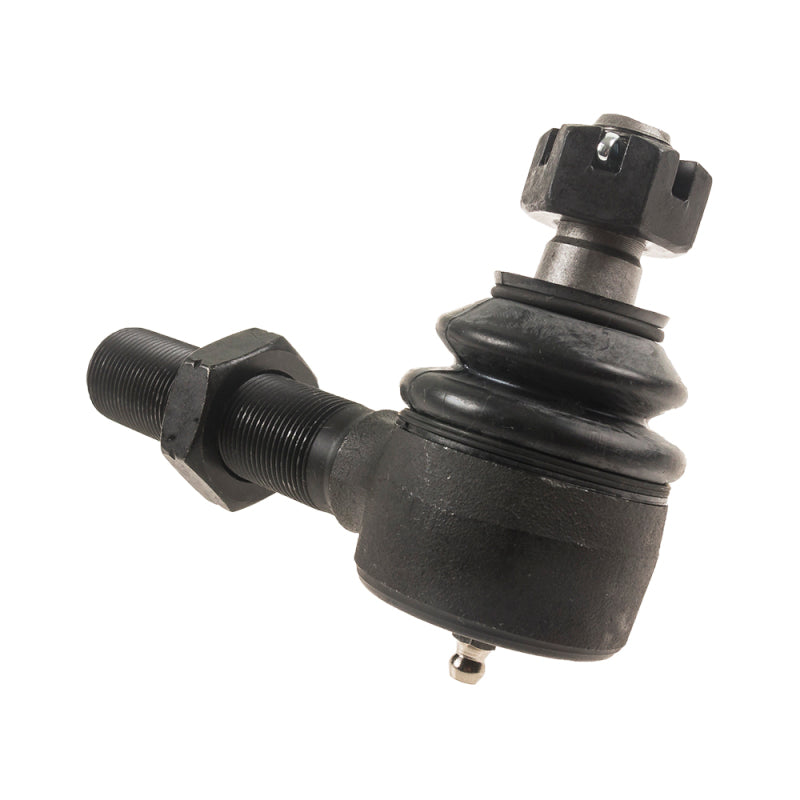

Synergy 4133-L HD Drag Link Tie Rod End Metal-on-Metal LH 2000-2013 Dodge Ram

Vehicle Fitment

• 2000-2013 Dodge Ram 2500 (4x4, Drag Link Driver Side - with Synergy 8525 Steering System)
• 2000-2013 Dodge Ram 3500 (4x4, Drag Link Driver Side - with Synergy 8525 Steering System)
• 2006-2008 Dodge Ram 1500 Mega Cab (4x4, Drag Link Driver Side - with Synergy 8525 Steering System)

Fitment Notes

• Designed exclusively for use with Synergy Manufacturing 8525 HD Steering System - does NOT fit factory stock steering
• Drag link driver side (left hand) position only - see Synergy fitment table for other positions (4134-L, 4136-L, 4160-L, 4167-L)
• 1994-1999 Ram 2500/3500 drag link uses 4136-L, not this part
• Dust boot is included with 4133-L - separate from 4134-L which requires boot 4134-02 separately

Features

• Sintered metal-on-metal bearing design eliminates nylon ball race for superior strength and longevity
• Forged 1018 steel bearing housing for maximum structural integrity
• 4140 steel stud with induction heat-treated bearing surface for long-term wear resistance
• Larger shank with no stress riser - does not neck down at the base like OEM and most aftermarket ends
• Machined grease grooves in the ball bearing ensure maximum lubrication throughout the joint
• Spring-loaded bearing maintains internal pressure as the joint wears, minimizing steering slop over time
• Fully greaseable for extended service life - compatible with Synergy High Performance Grease
• NBR dust boot with retaining springs included to protect the joint from contamination

Specifications

• Thread: 1-14 UNF Left Hand (LH)
• Taper: 1:8 (7.125 degrees included angle)
• Style: Standard
• Position: Drag link, driver side
• Bearing Housing Material: Forged 1018 steel
• Stud Material: 4140 steel, induction heat-treated
• Bearing Type: Sintered metal-on-metal, fully greaseable
• Boot: Black NBR with retaining springs (included)
• Weight: 3.0 lbs.

Included Components

• 1x HD metal-on-metal drag link tie rod end (driver side, LH thread)
• 1x Black NBR dust boot with retaining springs
• 1x Installation hardware

Product Description

The Synergy Manufacturing 4133-L is a heavy-duty replacement drag link tie rod end engineered for 2000-2013 Dodge Ram 2500 and 3500 4x4 trucks running the Synergy 8525 HD Steering System. Built around a sintered metal-on-metal bearing design, it eliminates the factory nylon ball race entirely - delivering a significantly stronger, greaseable joint that outlasts OEM and conventional aftermarket tie rod ends in both durability and load capacity.

The forged 1018 steel housing and induction heat-treated 4140 steel stud resist wear even under sustained heavy-duty and off-road use. Machined grease grooves and a spring-loaded bearing ensure the joint stays properly lubricated and tight as it wears over time - reducing steering slop without frequent replacement. An NBR dust boot with retaining springs is included. This part is a direct replacement component for the Synergy 8525 steering system and is not compatible with stock factory steering geometry.
